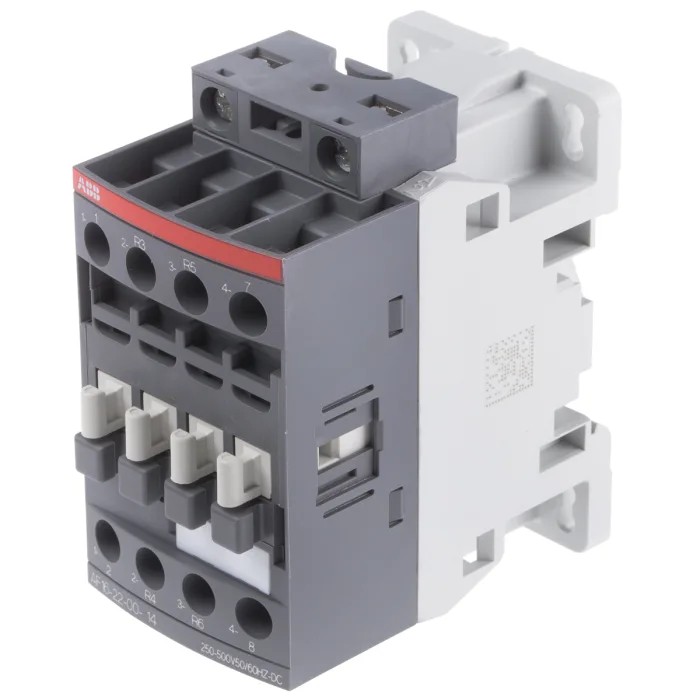

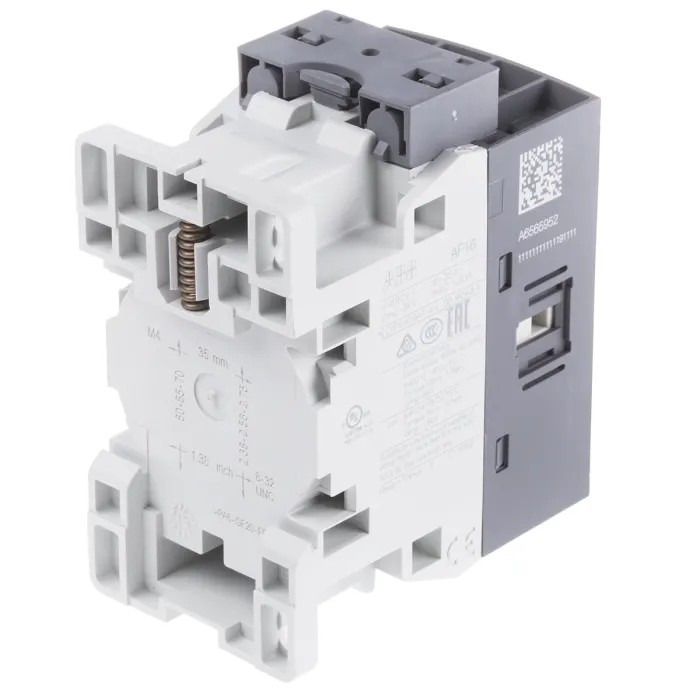

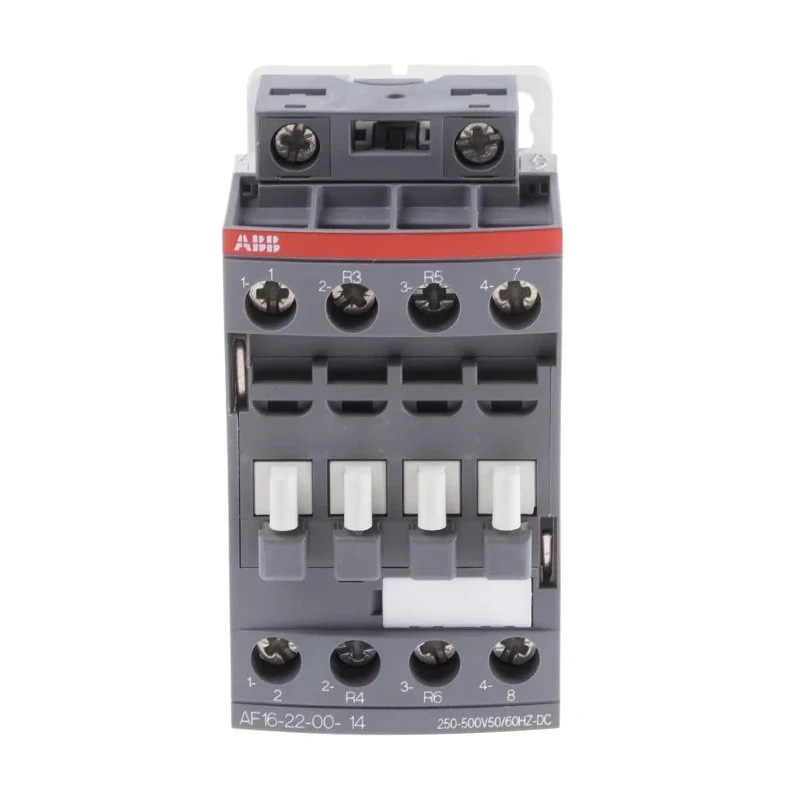

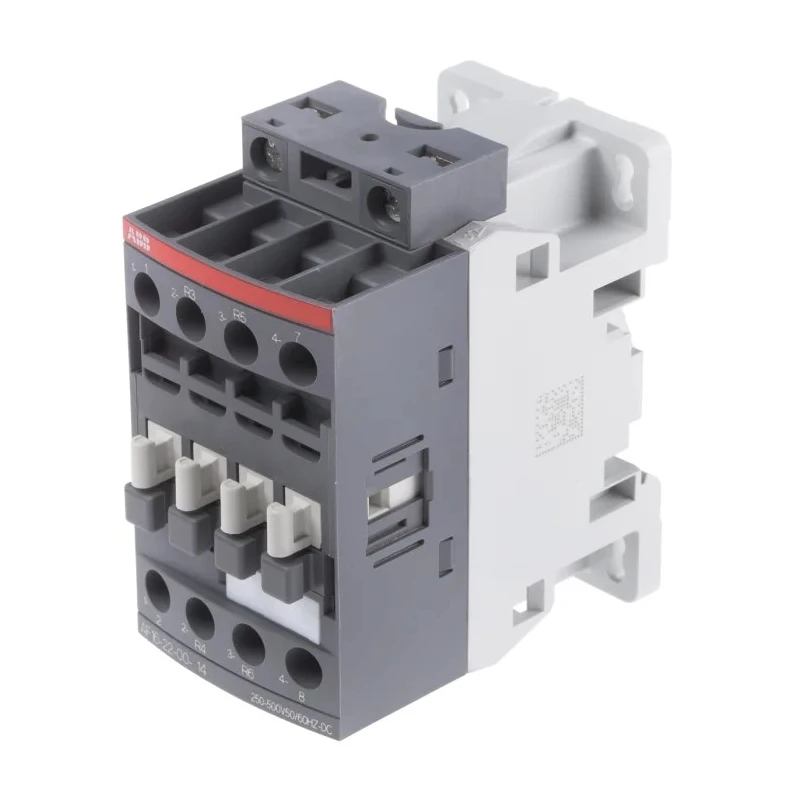

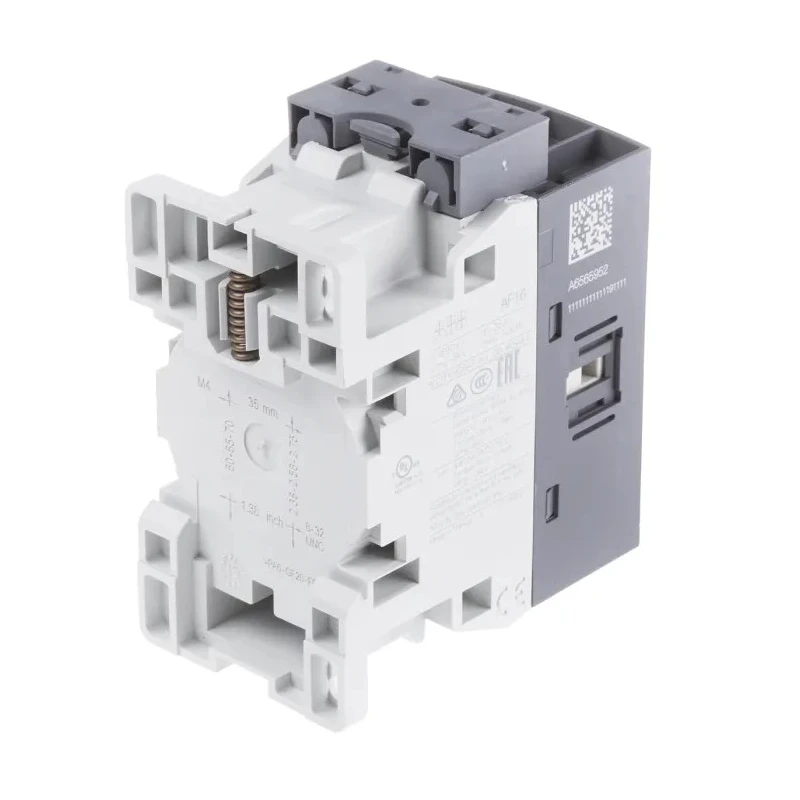

ABB AF16 Motor Control Contactor, 4-Pole, 250-500 V AC/DC Coil, 30 A Current, 7.5 kW Power Rating AF16



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF16
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF16
Power Rating	7.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	250, 500V ac/dc
Normal State Configuration	2 NO/2 NC
Contact Current	30A
Operational Current Ie	30A
Control Circuit Voltage Uc	500V ac/dc
Contactor Application	Motor Control
Pole and Throw Configuration	3

Key Features

Operates with coil voltages of 250 to 500 V AC/DC for versatile control applications.
Designed to handle contact currents up to 30 A for robust performance.
Provides a power rating of 7.5 kW at 500 V AC/DC for efficient motor switching.
Features a 4-pole design to support complex motor control configurations.
Mounts easily on DIN rails using screw terminals for secure and straightforward installation.
Operates reliably within a temperature range of -40°C to 70°C for varied environments.
Complies with IEC 60947-4-1 standards, ensuring industrial safety and quality.
Equipped with 2 normally open (NO) and 2 normally closed (NC) contacts for flexible control circuits.

Product Description

ABB AF16 Motor Control Contactor with model AF16 offers a reliable solution for industrial and commercial motor control systems. Featuring a 4-pole configuration and coil voltages ranging from 250 V to 500 V AC/DC, it supports switching currents up to 30 A and powers motors up to 7.5 kW at 500 V AC/DC.

This contactor is engineered for seamless integration into control panels and motor automation setups, with durable screw terminals and DIN rail mounting that facilitate quick installation. The device operates efficiently across a temperature span from -40°C to 70°C, ensuring stability in diverse environments.

Designed in compliance with IEC 60947-4-1 standards, the AF16 assures safety and performance in demanding industrial applications. Its 2 NO and 2 NC contact configuration accommodates various control logic requirements, enhancing versatility.

The robust construction and surge protection capabilities make this contactor suitable for managing power circuits in manufacturing, HVAC systems, and electrical automation sectors. It is ideal for indoor use in motor control applications requiring dependable switching and operational safety.

Key features include compatibility with auxiliary contact blocks and a compact profile that reduces panel footprint and energy consumption. The AF16 is an essential component for professionals focused on automation, industrial controls, and electrical equipment management.

Operates with coil voltages of 250 to 500 V AC/DC for versatile control applications. Designed to handle contact currents up to 30 A for robust performance. Provides a power rating of 7.5 kW at 500 V AC/DC for efficient motor switching.

Features a 4-pole design to support complex motor control configurations. Mounts easily on DIN rails using screw terminals for secure and straightforward installation. Operates reliably within a temperature range of -40°C to 70°C for varied environments.

Complies with IEC 60947-4-1 standards, ensuring industrial safety and quality. Equipped with 2 normally open (NO) and 2 normally closed (NC) contacts for flexible control circuits. Compatible with auxiliary contact blocks to enhance operational functionality.

Explore the full range of ABB Contactors and industrial automation gear on EnvMart for optimized motor control solutions.
