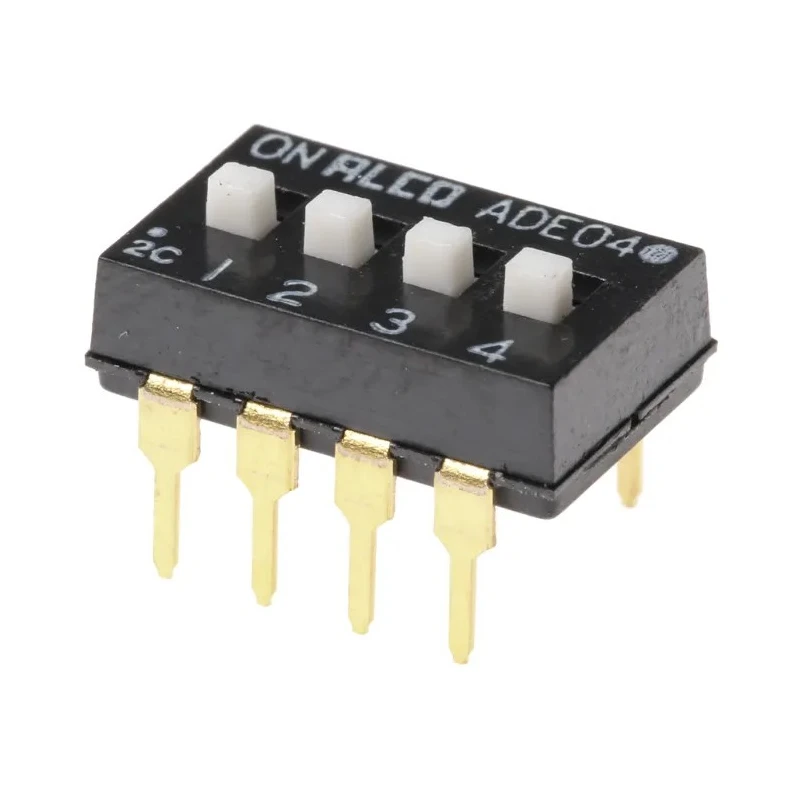

TE Connectivity Rotary Coded DIP Switch Through Hole Slide 50mΩ Contact Resistance 1825360-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 50mΩ |
Key Features
- Through hole mount type ensures stable PCB installation.
- Slide actuator allows precise switching operations.
- Gold flash plated contacts offer excellent conductivity with 50mΩ resistance.
- Compact 7.5 x 3.5 mm size with 2.54 mm centerline pitch.
- Black PPS housing provides durability and stability under soldering conditions.
- High pressure contact system resists cleaning solvents and reflow soldering.
- Compatible with ADE and ADF series DIP switches with extended or flush actuators.
- Suitable for automation, electrical, and electronic equipment use.
Product Description
TE Connectivity 1825360-3 rotary coded DIP switch is a high-quality electronic component designed for through-hole mounting on printed circuit boards. This slide-type switch features gold flash plated contacts ensuring low resistance of 50mΩ, providing excellent electrical performance and signal integrity. The compact dimensions of 7.5 x 3.5 mm with 2.54 mm centerline pitch make it suitable for dense PCB assemblies.
The switch housing is manufactured from black PPS material, offering strong mechanical resilience and resistance to vapor phase reflow and wave soldering processes commonly used in electronics manufacturing. The high pressure contact system ensures reliable switching and the ability to withstand aqueous or solvent cleaning without degradation. The ADE and ADF series variations feature extended or flush slide actuators, providing design options for various applications.
This rotary coded DIP switch is ideally suited for use in electrical, automation systems, and electronic devices where precise and stable signal switching is required. Its slide actuator type enables easy manual operation and adjustment in embedded electronic circuits.
Through hole mounting ensures robust and stable PCB attachment. Slide actuator provides ease of use and reliable function. Gold flash plated contacts minimize contact resistance to 50mΩ. Compact size with 7.5 mm x 3.5 mm housing and 2.54 mm centerline.
Black PPS housing material for durability in harsh soldering environments. High pressure contact system suitable for solvent and vapor phase cleaning. Compatible with ADE and ADF series DIP switches offering actuator variants.
Adapted for industrial, automation, and electronic circuit board applications. Ensures long mechanical and electrical reliability for repetitive switching.
Explore the extensive TE Connectivity line of Rotary Coded DIP Switches at EnvMart to meet your precision switching requirements for electronics manufacturing and automation control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of this model is 50mΩ, ensuring excellent electrical performance and signal integrity.
This switch has compact dimensions of 7.5 mm x 3.5 mm with a centerline pitch of 2.54 mm, making it suitable for dense PCB assemblies.
It utilizes a through-hole mounting type, ensuring robust and stable attachment to printed circuit boards.
The housing is made from black PPS material, which provides durability and stability under soldering conditions.
This rotary coded DIP switch features a slide actuator type, allowing for precise and easy manual operation.
Yes, it is compatible with ADE and ADF series DIP switches, which feature extended or flush actuators.
It is suitable for use in electrical, automation systems, and electronic devices requiring precise and stable signal switching.
The high pressure contact system allows it to resist aqueous or solvent cleaning processes without degradation.
The country of origin for this rotary coded DIP switch is India.
Gold flash plated contacts minimize contact resistance, enhancing electrical performance and reliability.
The high pressure contact system ensures reliable switching and durability during reflow soldering and cleaning processes.
The slide actuator design allows for easy manual operation and adjustment in embedded electronic circuits.
