RS PRO Infrared Temperature Sensor V Output Signal 1 m Cable, 0 °C to 1000 °C, IP65 Rated, Aluminium ABS Housing 161-8103
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Accuracy | ±1.5°C, ±1.5% rdg |
| Diameter | 31mm |
| Brand | RS PRO |
| Light Source | Infrared |
| Model | 161-8103 |
| Sensor Type | V Output Signal |
| Mount Type | Hole, Screw |
| Voltage Output | 0 to 5 V dc, 1 to 5 V dc, or 0 to 10 V dc linear output for measured temperature |
| Maximum Ambient Temperature | 70°C |
| Standards/Approvals | EN61326-1EN61326-2-3RoHS |
| Maximum Supply Voltage | 24V dc |
| Maximum Temperature Sensed | 1000°C |
| Minimum Temperature Sensed | 0°C |
| Cable Length Sensing Head | 1m |
| Cable Length Output | 1m |
| Response Time 90% | 250ms |
| IP Rating Sensing Head | IP65 |
| Housing Material Sensing Head | Aluminium, ABS |
| Emissivity Setting | Adjustable |
| Analogue Output Type | Alarm, Analogue |
Key Features
- Operates with a fast 250ms response time for precise temperature readings.
- IP65 rated sensing head ensures protection against dust and water.
- Aluminium and ABS housing offers robust durability in industrial conditions.
- Adjustable emissivity and configurable alarm outputs enable versatile application usage.
- Compact 31 mm diameter design with hole and screw mounting for easy installation.
- Suitable for industrial, laboratory, and benchtop temperature monitoring tasks.
- Includes open collector alarm output with configurable setpoint and hysteresis.
- Supports measurement of materials such as plastics, rubber, wood, painted metals, and organic matter.
Product Description

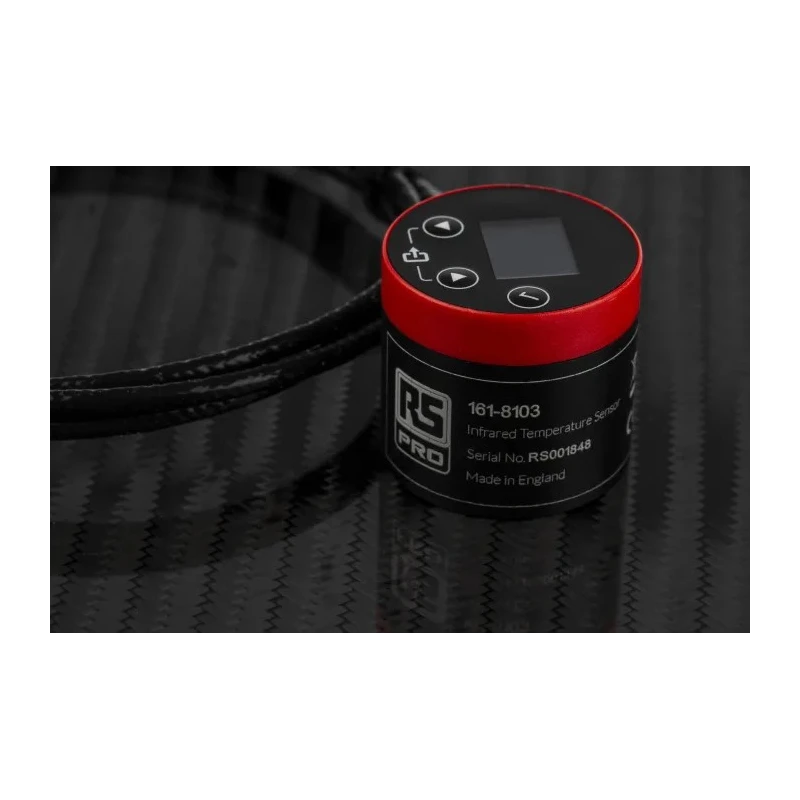

RS PRO 161-8103 Infrared Temperature Sensor with V Output Signal type is a high-precision non-contact sensor designed for industrial, laboratory, and manufacturing applications. It measures temperature ranges from 0 °C to 1000 °C, providing reliable data without physical contact with the target object. The sensor features a compact 31 mm diameter sensing head with durable aluminium and ABS construction, making it suitable for harsh environments.
The device includes a backlit display and on-sensor controls for easy configurability of temperature range, emissivity, and alarm outputs. Its 1 m sensing head and output cables offer convenient installation flexibility. The sensor outputs analog signals of 0 to 5 V dc, 1 to 5 V dc, or 0 to 10 V dc, precisely representing measured temperatures. The fast 250 ms response time ensures rapid measurement feedback.
Its IP65 rated sensing head effectively prevents ingress of dust and water, maintaining sensor performance in demanding conditions. Installation is facilitated via hole and screw mounting options. The sensor supports open collector alarm output, configurable setpoints, and hysteresis to alert users under specific temperature conditions.
Applications include temperature measurement on conveyor belts, organic materials such as food and pharmaceuticals, painted metals, plastics, wood, rubber, and more. The sensor’s advanced functionality, including peak and valley hold for conveyor gap detection, makes it invaluable in automation and quality control processes.
Operates non-contact infrared temperature measurement from 0 °C to 1000 °C. Adjustable emissivity for measurement accuracy across different materials. V output signal with selectable voltage output scales. Compact size and flexible mounting enable installation in restricted spaces.
Robust aluminium and ABS housing for durability. IP65 rated sensing head protects against environmental contaminants. Backlit display and on-device controls for ease of configuration. Open collector alarm output with configurable setpoint and hysteresis.
Fast response time suitable for dynamic temperature monitoring. Manufactured to comply with EN61326-1, EN61326-2-3, and RoHS standards.
The RS PRO 161-8103 Infrared Temperature Sensor is a proven solution for accurate temperature measurement in industrial, laboratory, HVAC, manufacturing, and quality assurance contexts. Its high reliability, configurability, and compact design make it ideal for integration into advanced automation systems.
Explore the Electronics & Electricals category at EnvMart for a wide selection of sensors and measurement instruments to complement your industrial and laboratory needs.
