Schurter 250V AC 6A Panel Mount IEC Connector Male Quick Connect DD12.6321.111

Free Delivery in India | Lowest Global Shipping Charges

Schurter 250V AC 6A Panel Mount IEC Connector Male Quick Connect DD12.6321.111

Name: Schurter 250V AC 6A Panel Mount IEC Connector Male Quick Connect DD12.6321.111
Brand: Schurter
SKU: 217647
Price: 49.47 USD
Availability: InStock



Category IEC Connector Brand Schurter Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Schurter
Current	6A
Height	31.5mm
Model	DD12.6321.111

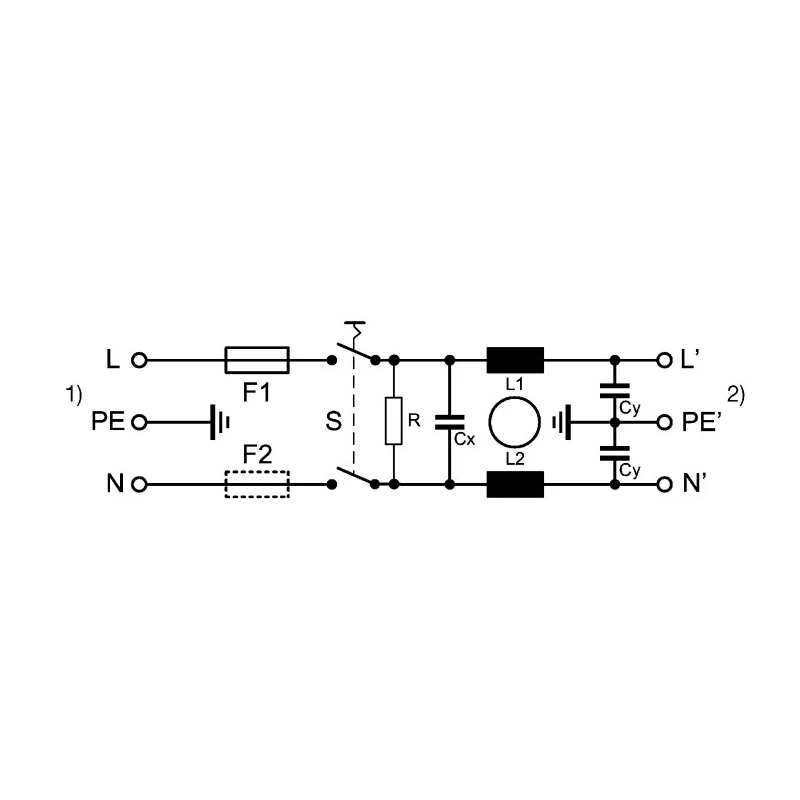

Filter Type	Line
Depth	60.9mm
Width	66mm
Mount Type	Panel Mount
Operating Frequency	60Hz
Termination Type	Quick Connect
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Panel Mount	Screw on from front side
Contact Gender	Male
Connector Gender	Male
Fuse Size	5 x 20 mm
IEC Connector Type	C14

Key Features

Ultra-compact design with aluminium casing provides effective shielding.
Panel mount with screw-on from front side ensures secure installation.
Compatible with 5 x 20 mm fuse size; fuse drawer not included.
Quick connect terminals measuring 6.3 x 0.8 mm enable easy wiring.
Meets IEC/EN 60601-1 and IEC/EN 60950 standards for safety compliance.
Operates reliably between -25°C and 85°C ambient temperatures.
IEC connector type C14 suitable for standard mains power inlets.
Designed for operation at 60 Hz AC frequency.

Product Description

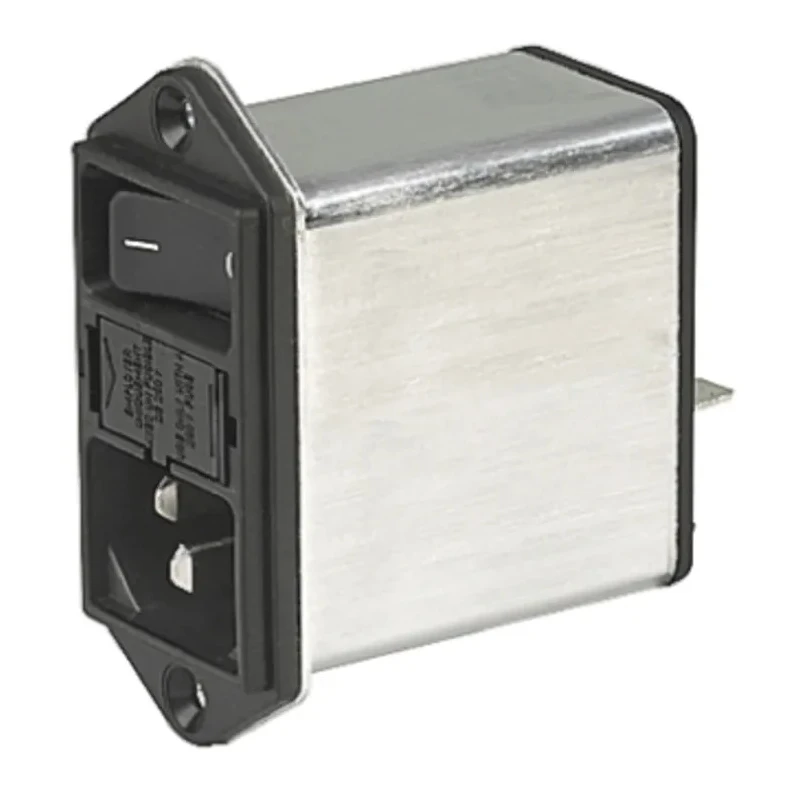

Schurter DD12.6321.111 is a premium panel mount IEC connector designed for robust and reliable power connections in industrial and medical equipment. Rated for 250V AC and 6A current, this male connector features an ultra-compact aluminium case that provides excellent shielding against electromagnetic interference.

This connector is engineered for quick connect termination with 6.3 x 0.8 mm terminals, supporting efficient and secure wiring. The mounting is designed for panel installation with screw-on fastening from the front side, ensuring a sturdy mechanical fit.

The fuse drawer is compatible with 5 x 20 mm fuses and must be ordered separately, fulfilling specific protection requirements according to application needs. This product meets stringent IEC/EN 60601-1 medical standards alongside IEC/EN 60950 for standard electrical safety, making it suitable for both medical and general industrial usage.

Operating within a temperature range of -25°C to 85°C and an AC frequency of 60 Hz, this connector performs reliably in varying harsh environments. Its IEC connector type C14 configuration is widely adopted for mains power inlet applications.

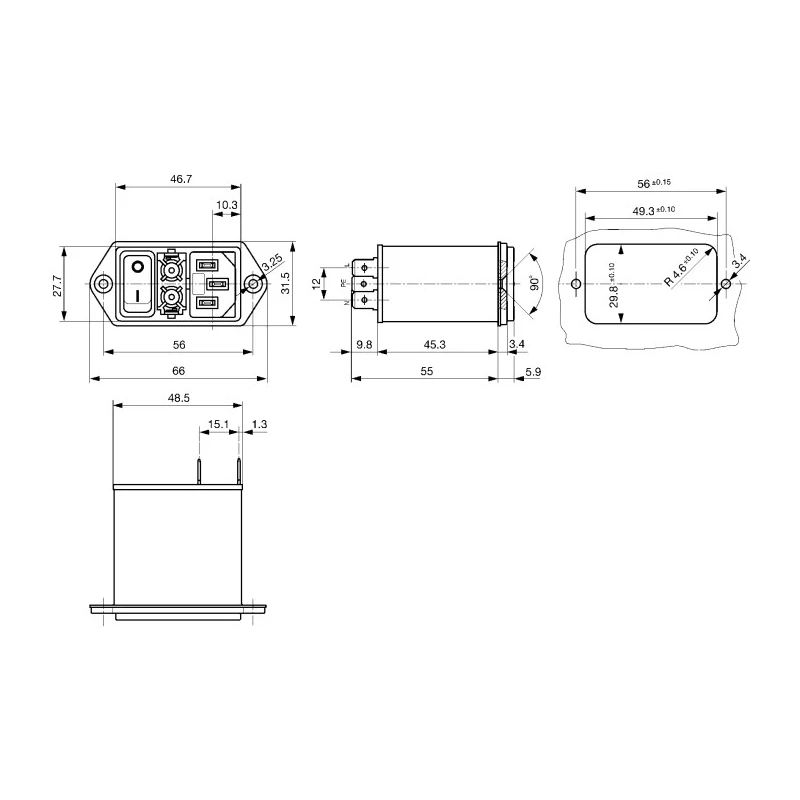

Dimensionally, the connector measures 66 mm in width, 31.5 mm in height, and 60.9 mm in depth, fitting standard panel cutouts. Certifications include VDE 40001522 and UL E72928, validating its quality and safety compliance.

Ultra-compact aluminium casing provides effective electromagnetic shielding. Panel mount design with front-side screw fixing ensures secure installation. Compatibility with 5 x 20 mm fuses; fuse drawer ordered separately.

Quick connect terminals facilitate easy wiring and maintenance. Compliance with IEC/EN 60601-1 and IEC/EN 60950 safety standards. Wide operating temperature range from -25°C to 85°C. IEC C14 connector type for standard power inlet applications.

Operational frequency of 60 Hz typical for AC mains. Dimensions: 66 mm (W) x 31.5 mm (H) x 60.9 mm (D). VDE and UL approvals confirm product quality and safety.

This Schurter IEC Connector DD12.6321.111 is ideal for industrial, laboratory, medical, and HVAC equipment requiring high transient load tolerance and secure power connections. Explore more IEC Connectors and power components at EnvMart for your specialized application requirements.
