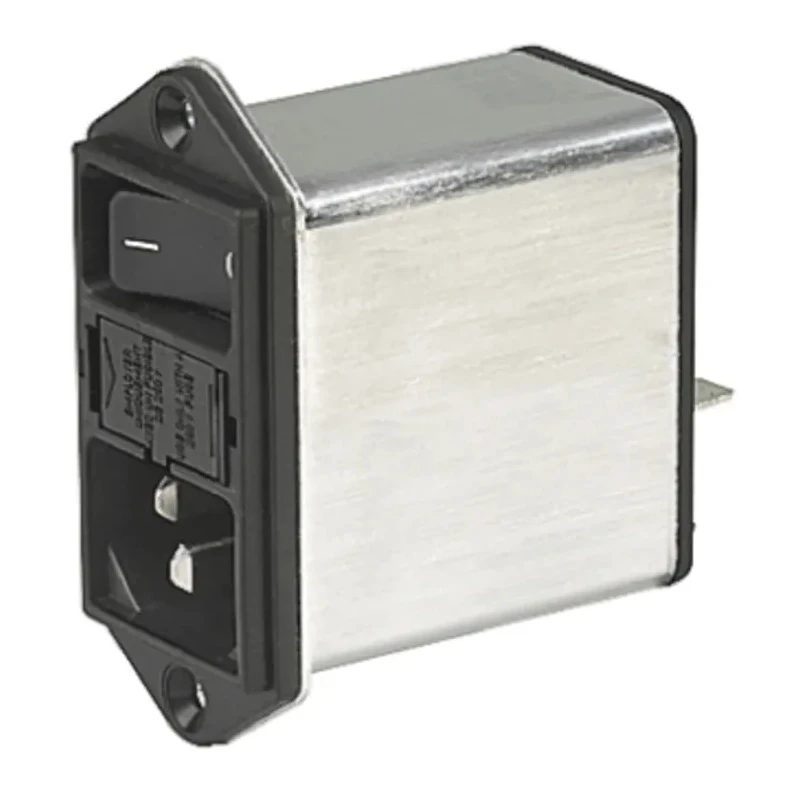

Schurter Panel Mount IEC Connector Male 250V AC 8A Quick Connect DD12.8321.111
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Schurter |
| Current | 8A |

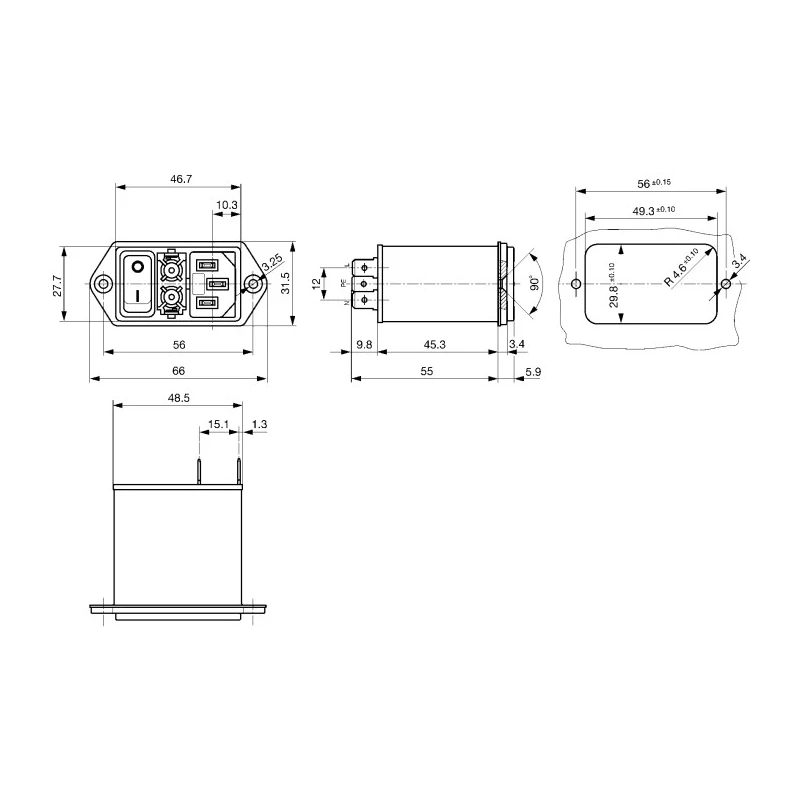

| Height | 31.5mm |
| Model | DD12.8321.111 |
| Filter Type | Line |
| Depth | 60.9mm |
| Width | 66mm |
| Mount Type | Panel Mount |
| Operating Frequency | 60Hz |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Panel Mount | Screw on from front side |
| Contact Gender | Male |
| Connector Gender | Male |
| Fuse Size | 5 x 20 mm |
| IEC Connector Type | C14 |
Key Features
- Ultra-compact design with aluminium case for excellent shielding.
- Panel mount type allows screw-on installation from front side.
- Termination uses quick connect terminals sized 6.3 x 0.8 mm.
- Fuse drawer not included; suitable for 5 x 20 mm fuses ordered separately.
- Ideal for standard and medical applications meeting IEC/EN 60601-1 and IEC/EN 60950 standards.
- Operating temperature ranges from -25°C to 85°C for versatile use.
- IEC C14 type connector with male contact gender for mains power systems.

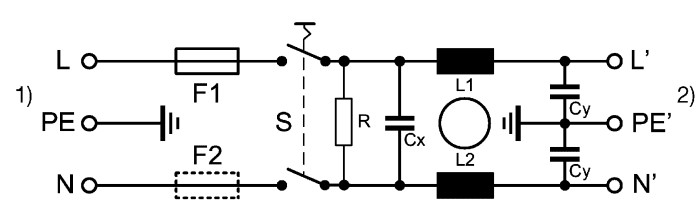

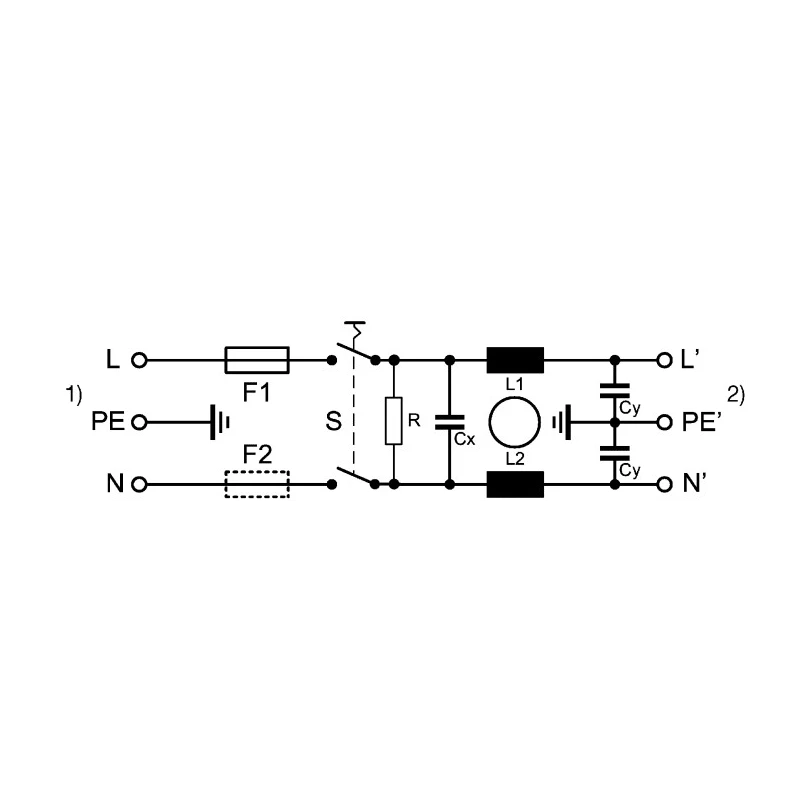

- Designed to handle high transient loads with line filter type.
Product Description
Schurter DD12.8321.111 is a panel mount IEC C14 connector that provides ultra-compact design and robust aluminium casing offering excellent shielding, making it highly suitable for use in industrial, laboratory, medical, and commercial power filter applications.
Designed to operate at 250V AC with an 8A current rating, it features quick connect termination terminals measuring 6.3 x 0.8 mm, enabling easy and secure wiring connections. The connector mounts on panels with screw-on fixing from the front side, ensuring stable and reliable installation in electronic systems and power distribution setups.
It supports fuse sizes of 5 x 20 mm; however, the fuse drawer is not included in the product and should be purchased separately to meet application-specific requirements.
This IEC connector series is compliant with medical standard IEC/EN 60601-1 and equipment standard IEC/EN 60950, qualifying it for demanding use cases subject to high transient loads and stringent safety regulations.
Operating temperature range is from -25°C up to 85°C, allowing functionality across various environmental conditions.
Typical application scenarios include industrial machinery, power supply equipment, medical instruments, laboratory devices, and other electrical installations requiring reliable mains power connector filters.
Ultra compact design with aluminium casing provides good electromagnetic shielding. Male connector with quick connect termination for ease of wiring. Panel mount installation with screw-on mounting from front side. Suitable for 5 x 20 mm fuse size (fuse drawer sold separately).
Complies with IEC/EN 60601-1 and IEC/EN 60950 standards. Rated for 250V AC, 8A current with 60Hz operating frequency. Dimensions: Height 31.5 mm, Width 66 mm, Depth 60.9 mm. Operating temperature -25°C to 85°C. Ideal for medical, industrial, laboratory, and commercial power applications.
Explore more high-quality IEC Connectors and power components in the Electronics & Electricals category on EnvMart for your specific industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IEC connector is rated for 250V AC and has a current rating of 8A.
It features quick connect termination with terminals sized 6.3 x 0.8 mm, allowing for easy and secure wiring connections.
The dimensions are 31.5 mm in height, 66 mm in width, and 60.9 mm in depth.
The operating temperature range is from -25°C to 85°C, making it suitable for various environmental conditions.
It supports a fuse size of 5 x 20 mm; however, the fuse drawer is not included and must be purchased separately.
This model is designed for panel mount installation with screw-on fixing from the front side.
Yes, it complies with medical standard IEC/EN 60601-1 and equipment standard IEC/EN 60950, suitable for demanding applications.
It is suitable for industrial machinery, power supply equipment, medical instruments, laboratory devices, and other electrical installations requiring reliable mains power.
This connector has a male contact gender, designed for mains power systems.
The operating frequency is 60Hz, suitable for standard power applications.
It uses a line filter type, designed to handle high transient loads effectively.
The country of origin for this connector is India.
