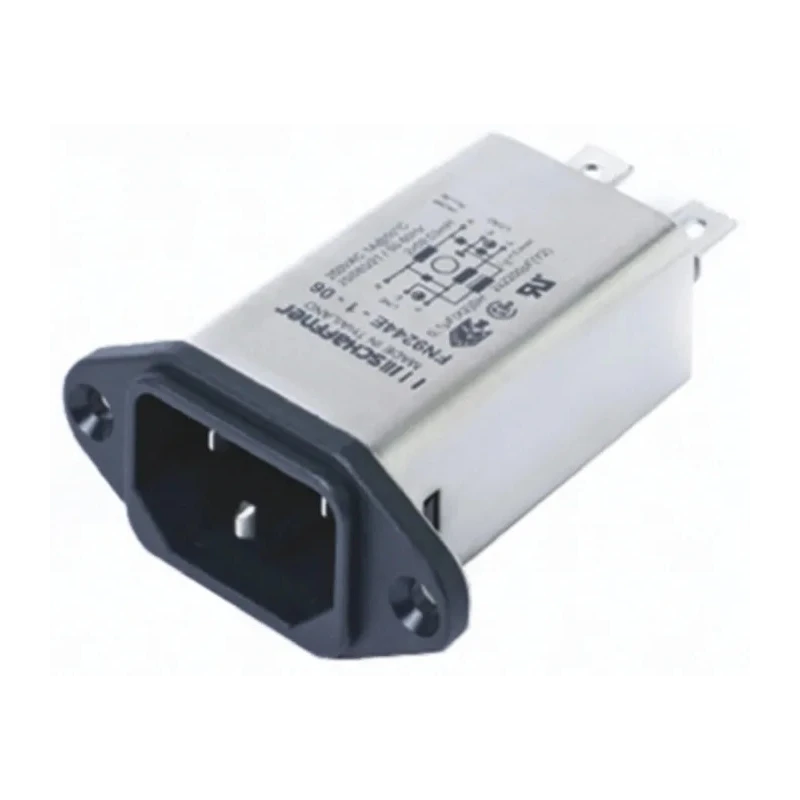

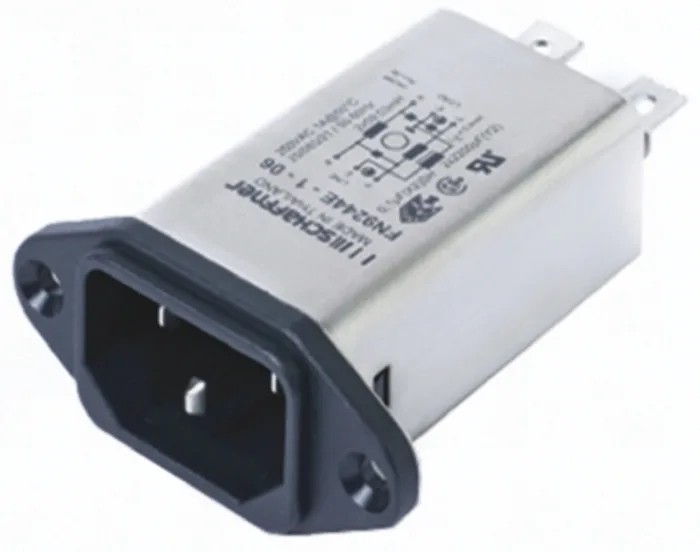

Schaffner 250V AC 3A Panel Mount IEC Filter Male Faston FN9244-3-06

Schaffner FN9244-3-06 is a high-performance IEC filter designed for panel mount applications with a male connector and Faston termination. Rated for 250V AC and 3A current, this filter provides superior attenuation of electromagnetic interference (EMI) in a compact housing featuring mounting flanges for easy panel integration.

This IEC filter supports an operating frequency range from 0 to 400Hz, making it compatible with a variety of single-phase power supplies commonly used in portable electrical and electronic devices, small to medium-sized machines, household appliances, switch mode power supplies, and test and measurement equipment.

The filter meets IEC 60529 standards and can operate reliably in ambient temperatures ranging from -25°C up to 85°C. Its design incorporates a standard housing that facilitates rack mounting and integration into electrical panels.

The FN9244-3-06 filter is particularly effective in suppressing EMI noise, ensuring compliance with EMC requirements and enhancing equipment reliability. Its compact size with a height of 22.5 mm, width of 48 mm, and depth of 57.9 mm allows it to fit easily into constrained panel spaces without compromising electrical performance.

Use cases include industrial controls, instrumentation, electronic manufacturing, water treatment systems, and household equipment requiring noise filtration. The filter’s Faston termination and male connector gender provide secure and reliable electrical contacts.

It is a standard choice for engineers integrating EMI filtering solutions into panel mount configurations. Made by Schaffner, a globally recognized brand in electronic filtration products. Explore more products in the IEC Filters category at EnvMart for advanced power quality and EMI filtering solutions.
