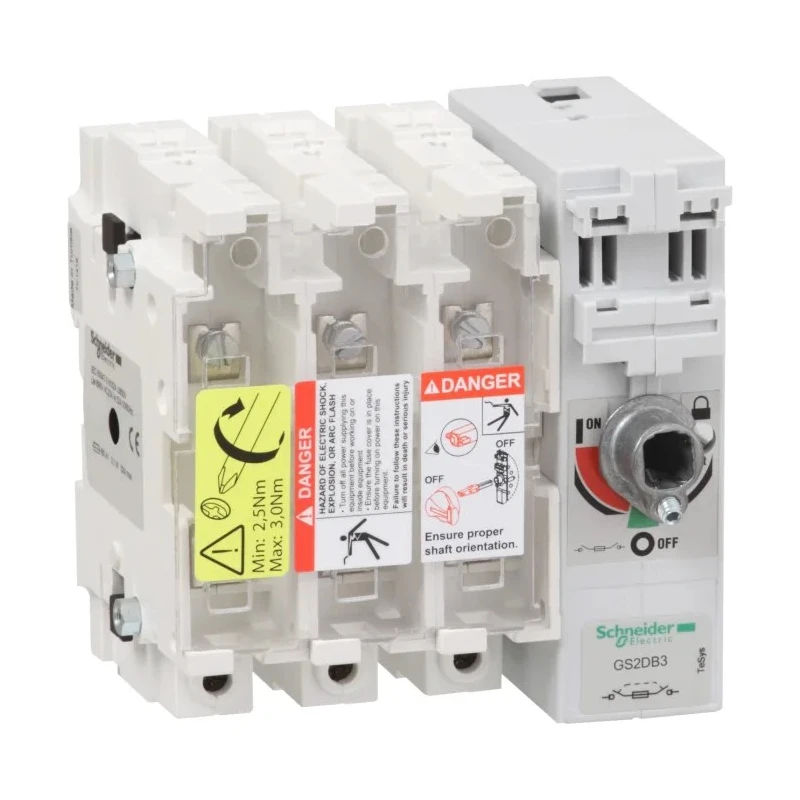

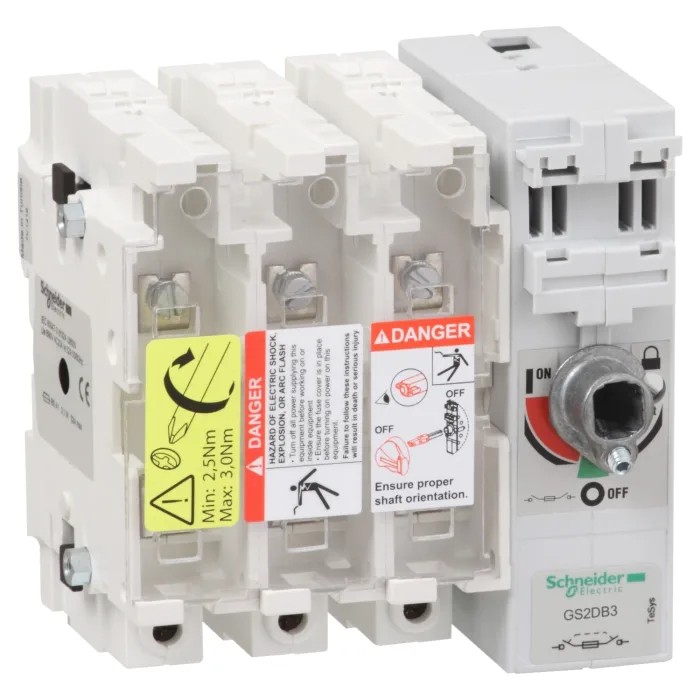

Schneider Electric Fuse Switch Disconnector 3-Pole 1250 A 690V TeSys GS GS2DB3

Schneider Electric GS2DB3 Fuse Switch Disconnector 3-Pole is a high-quality switch-disconnector-fuse combination designed for safe disconnection, overcurrent protection, and on-load breaking in low voltage electrical systems. This device is specifically engineered for industrial and commercial applications, supporting 3-phase electrical circuits with a rated fuse current of 1250 A and switching voltage up to 690 V.

The GS2DB3 model features DIN Rail mounting with wire-type terminal connections, facilitating easy installation and maintenance. It includes fuse covers as standard, providing effective protection against accidental contact. The device holds an IP65 and IP20 rating, ensuring protection against dust ingress and water splashes, making it suitable for diverse environments.

Operating efficiently within a temperature range from -20°C to 70°C, this switch disconnector integrates auxiliary contact availability for added electrical control and safety in circuit management. Designed under the TeSys GS series, the GS2DB3 complies fully with IEC 60947-3 and other key international standards including REACH, CE, and RoHS, ensuring reliability and environmental compliance.

Applications include industrial automation, electrical panels, motor control centers, and electrical distribution systems. The compact ergonomic handles are available in black or red, allowing easy operation and clear status indication during switching operations. The device supports upstream and downstream breaking of fuses across all ratings with a robust conditional short-circuit withstand voltage of 100 kA.

Designed for 3-pole electrical systems with 1250 A fuse current rating. Compatible with DIN Rail mounting and supports wire terminal connections. Supports switching voltage up to 690 V and switching power of 25 kW. Features mechanical fuse size A1 and auxiliary contacts availability for enhanced control.

Operating temperature range from -20°C to 70°C ensuring durability in various environments. IP65 and IP20 rated for protection against dust and water ingress. Complies with IEC 60947-3 and other international standards including REACH, IEC, CE, and RoHS.

Fuse covers fitted as standard for protection against accidental contact. Compact handles in black or red for secure, ergonomic operation.

This Schneider Electric product is ideal for industrial, commercial, and manufacturing environments requiring safe power isolation and overcurrent protection. Its robust design and certified standards make GS2DB3 a reliable component in electrical switchboards and distribution systems.
