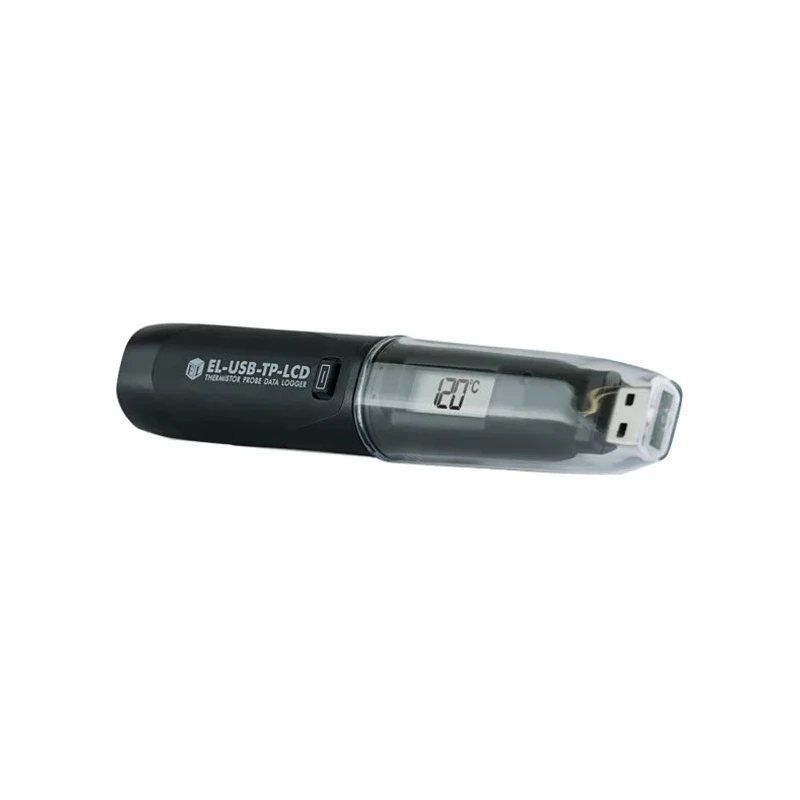

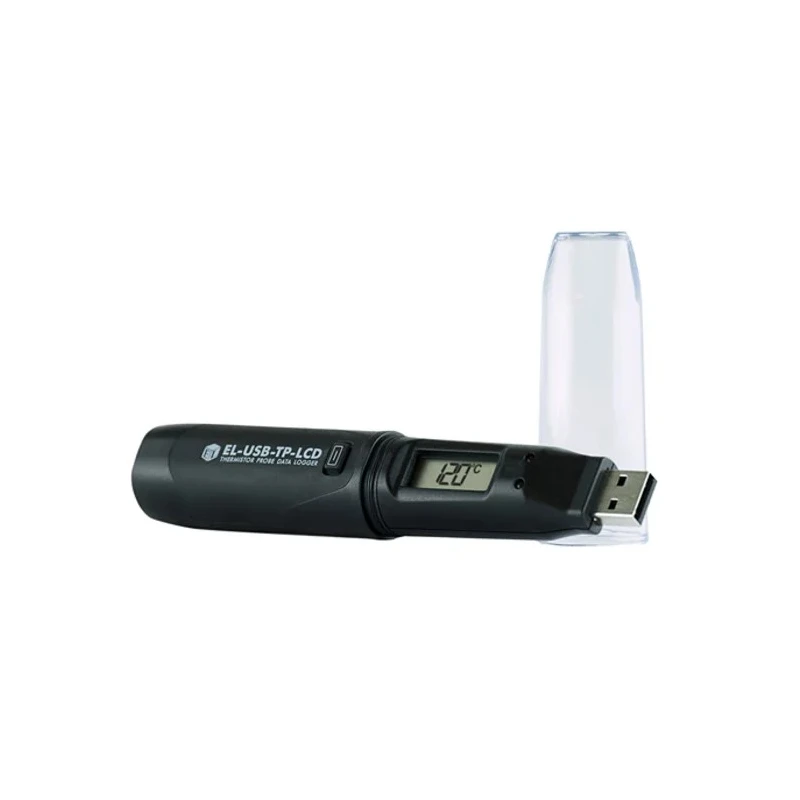

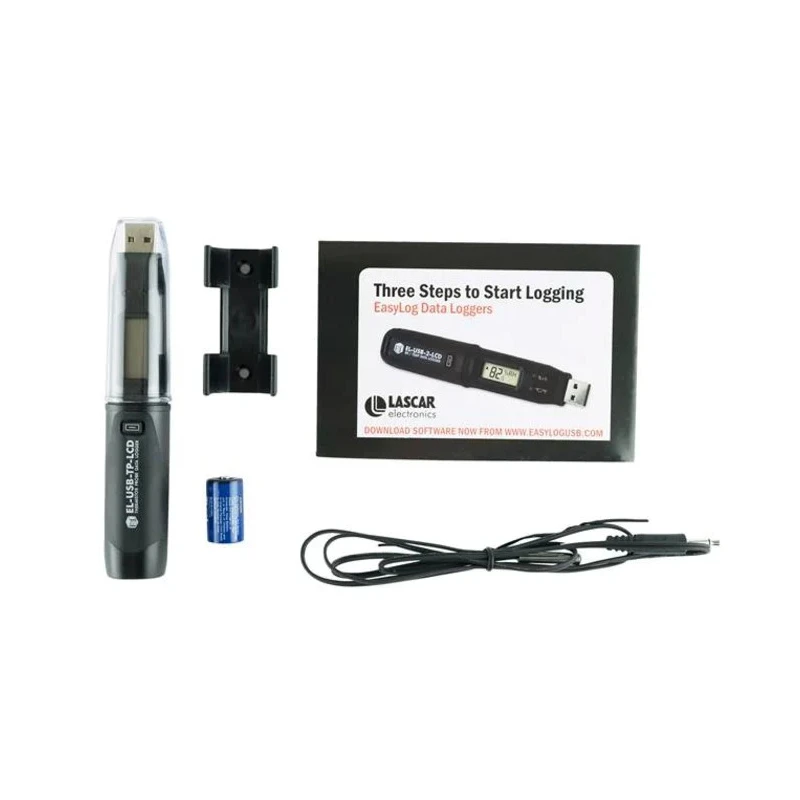

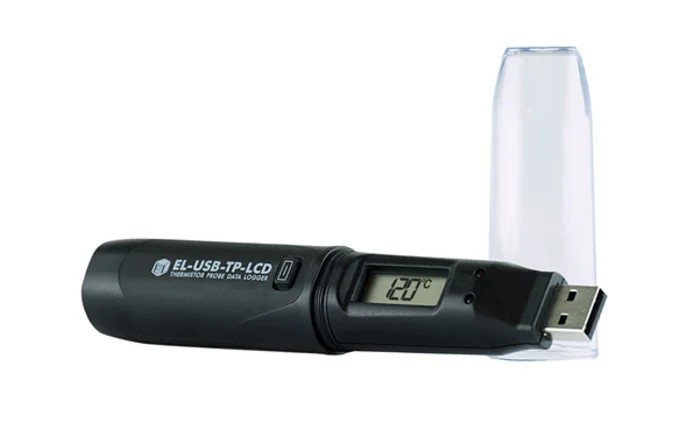

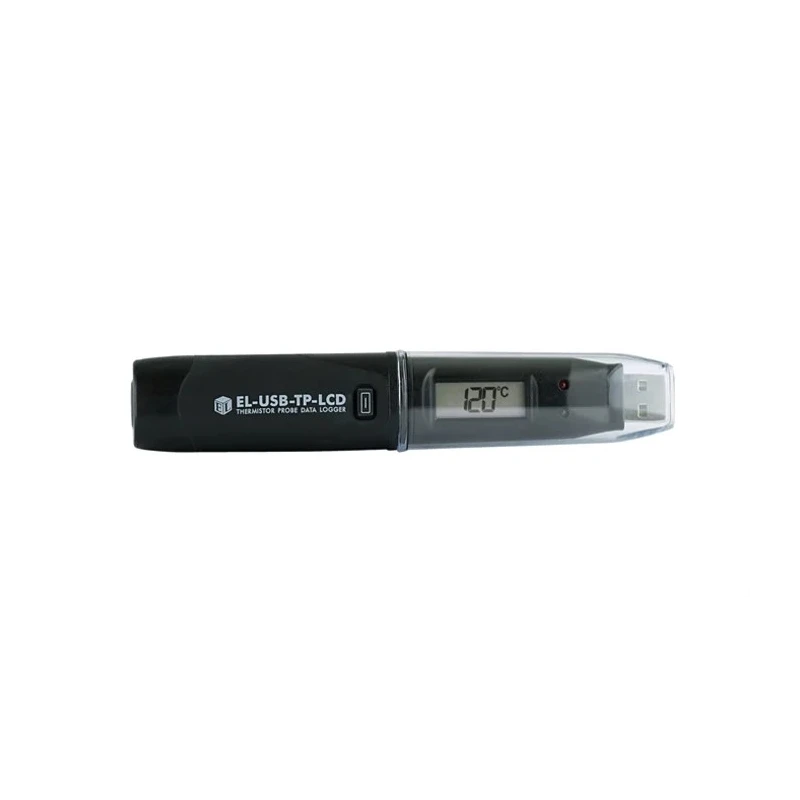

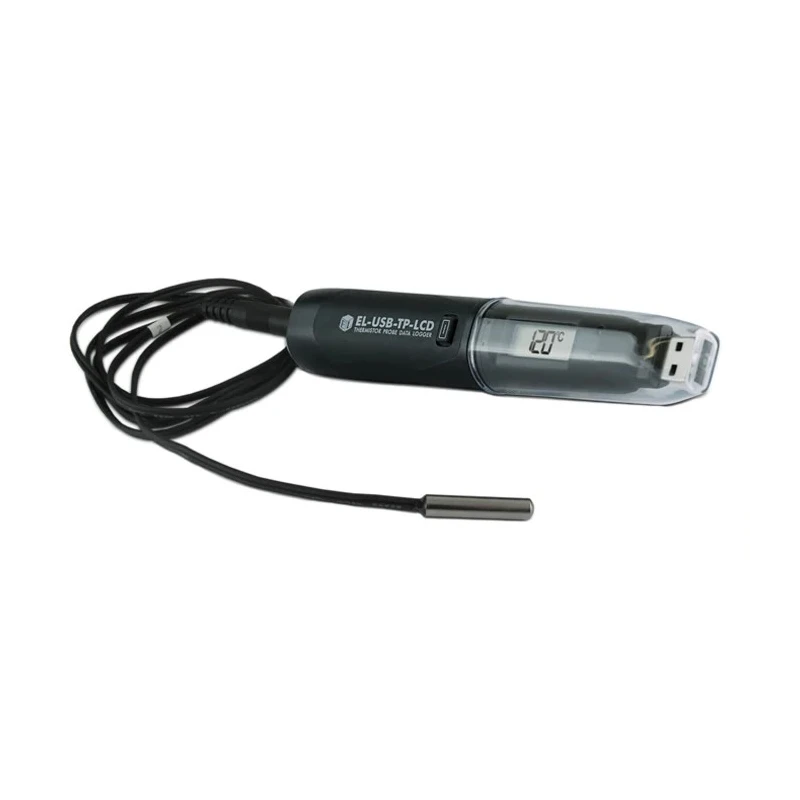

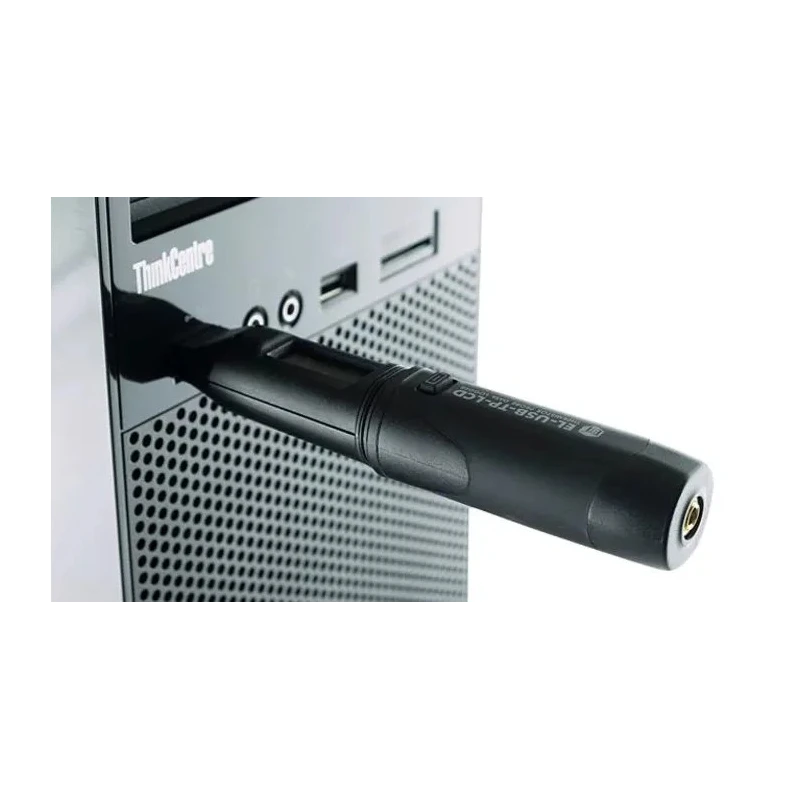

Lascar Temperature Data Logger USB Interface IP67 LCD Display EL-USB-TP-LCD+
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.2°C, ±0.2 °C |
| Display Type | LCD |
| Brand | Lascar |
| Battery Life | 2year |
| Battery type | AA |
| Height | 21mm |
| Length | 134mm |
| Model | EL-USB-TP-LCD+ |
| IP Rating | IP67 |
| Width | 24mm |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -35°C |
| Number Of Channels | 1 |
| Measurement Parameters | Temperature |
| Interface Type | USB |
| Standards/Approvals | CE |
| Number of Readings per Channel | 32510 |
Key Features
- Measures and stores over 32,500 temperature readings between -40°C and 125°C.
- High contrast LCD displays current, maximum, and minimum temperatures.
- Accuracy of ±0.2°C ensures precise temperature monitoring.
- Compact dimensions of 134mm length, 24mm width, and 21mm height with durable casing.
- Supplied with a 1/2AA lithium metal battery offering up to 2 years of battery life.
- User-programmable alarm thresholds with clear red/green LED status indication.
- IP67 rated enclosure for dust and water resistance suitable for harsh environments.
- Easy data download and analysis via USB connection and free EasyLog software.
Product Description
Lascar EL-USB-TP-LCD+ is a high-precision temperature data logger designed for monitoring and recording temperature in industrial, laboratory, food processing, pharmaceutical, and cold chain applications. Featuring a USB interface, it allows quick and simple data transfer to PCs using the complimentary EasyLog software, enabling detailed graphing, printing, and export of temperature records.
This device accurately measures temperature ranging from -40°C to 125°C with an accuracy of ±0.2°C. The integrated high contrast LCD shows real-time temperature values, as well as maximum and minimum recorded temperatures. The compact, robust IP67-rated housing ensures protection against dust and water immersion, making it ideal for demanding environments.
The data logger stores up to 32,510 temperature readings and supports immediate or delayed logging starts. Its battery-powered operation with an AA-type lithium battery guarantees up to 2 years of continuous use, supported by programmable alarms and LED indicators to alert users of threshold breaches.
Typical uses include chilling and freezing facilities, vaccine storage monitoring, and other temperature-sensitive storage where precise data logging is critical for quality assurance and regulatory compliance.
Measures and stores over 32,500 temperature data points accurately and reliably. High contrast LCD permits clear viewing of current and historic temperature extremes. Robust IP67 enclosure for reliable operation in challenging industrial conditions.
Battery life of up to 2 years reduces maintenance and downtime. USB connectivity enables easy data retrieval and analysis via free software. User-configurable alarm thresholds with LED alerts ensure timely warnings. Wide operating temperature range from -35°C to 80°C suitable for most refrigeration applications.
Compact size with 134mm length, 24mm width, and 21mm height fits easily into monitoring setups. CE certified ensuring compliance with European standards for electronic devices.
Explore our extensive category of Data Loggers for more Lascar products and other precision temperature measuring instruments suitable for industrial, laboratory, HVAC, food safety, and pharmaceutical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures temperature from -40°C to 125°C with an accuracy of ±0.2°C.
This unit can store over 32,500 temperature readings.
It features a high contrast LCD display that shows current, maximum, and minimum temperatures.
The dimensions are 134mm in length, 24mm in width, and 21mm in height.
Data can be easily downloaded via a USB connection using the complimentary EasyLog software.
It is designed for use in industrial, laboratory, food processing, pharmaceutical, and cold chain applications.
The maximum operating temperature is 80°C, and the minimum is -35°C.
This model has 1 channel for temperature measurement.
