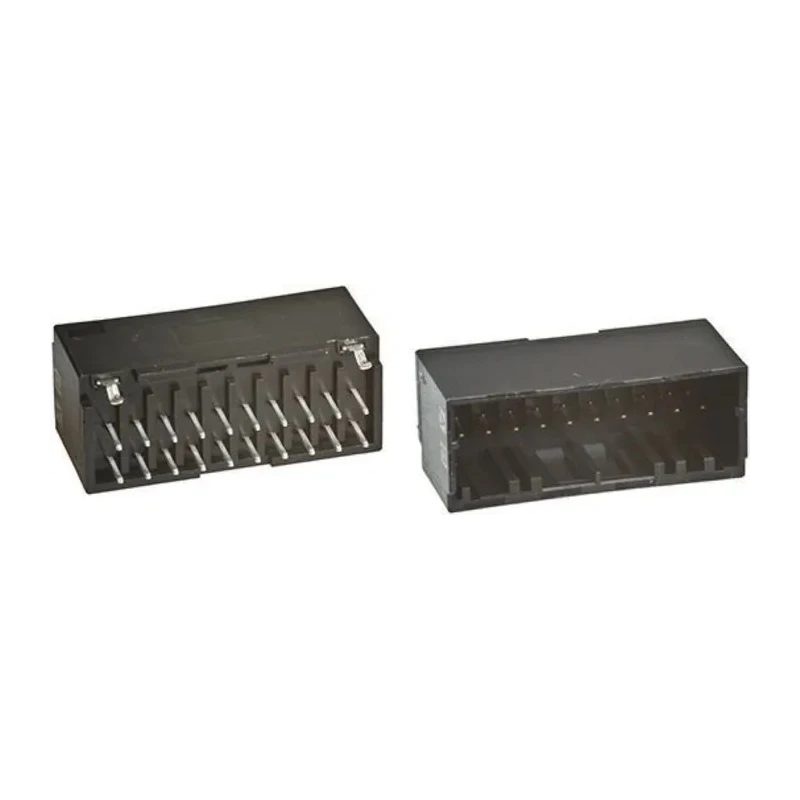

TE Connectivity Dynamic 1000 Series Straight Through Hole PCB Header, 10 Contacts, 2.5 mm Pitch, 2 Row, Shrouded 1-1827875-5

Name: TE Connectivity Dynamic 1000 Series Straight Through Hole PCB Header, 10 Contacts, 2.5 mm Pitch, 2 Row, Shrouded 1-1827875-5
Brand: TE Connectivity
SKU: 217131
Price: 5.26 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	5A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	Dynamic 1000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.5mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Comprises 10 male contacts arranged in 2 rows for reliable wire-to-board connection.
Constructed with thermoplastic housing and gold-plated copper alloy contacts for durability.
Operates safely up to 250V and 5A current rating.
Designed for through-hole mounting and solder termination.
Suitable for operating temperatures from -55°C to 105°C.
Provides stable insertion with shrouded connector system.
Compatible with Dynamic 1200 Series housings for mating connections.
Recommended PCB thickness from 1.0 to 1.6 mm enhances mounting stability.

Product Description

TE Connectivity 1-1827875-5 Dynamic 1000 Series Straight Through Hole PCB Header features 10 male contacts with a 2.5 mm pitch arranged in 2 rows, ideal for wire-to-board applications. The shrouded design and thermoplastic housing provide mechanical protection and electrical insulation, while gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.

This PCB header supports a maximum voltage of 250V and a current rating of 5A, suitable for a broad range of electronic equipment and industrial instrumentation. It operates reliably across a temperature range of -55°C to 105°C, making it fit for rigorous environmental conditions.

The through-hole mount type with solder termination ensures secure and dependable PCB connection. The Dynamic 1000 Series header is designed to prevent contact bending during mating, enhancing durability and service life. It is compatible with Dynamic 1200 Series housings, expanding its application in complex assemblies.

Recommended for industries including electronics manufacturing, industrial control systems, and automation. Typical uses involve signal transmission, power distribution, and interface connection in laboratory equipment, HVAC systems, and commercial electronics.

Comprises 10 male contacts arranged in 2 rows for reliable wire-to-board connection. Constructed with thermoplastic housing and gold-plated copper alloy contacts for durability. Operates safely up to 250V and 5A current rating.

Designed for through-hole mounting and solder termination. Suitable for operating temperatures from -55°C to 105°C. Provides stable insertion with shrouded connector system. Compatible with Dynamic 1200 Series housings for mating connections.

Recommended PCB thickness from 1.0 to 1.6 mm enhances mounting stability. Explore a wide range of TE Connectivity PCB Headers and connectors at EnvMart for your specialized industrial, laboratory, and commercial electronic needs.
