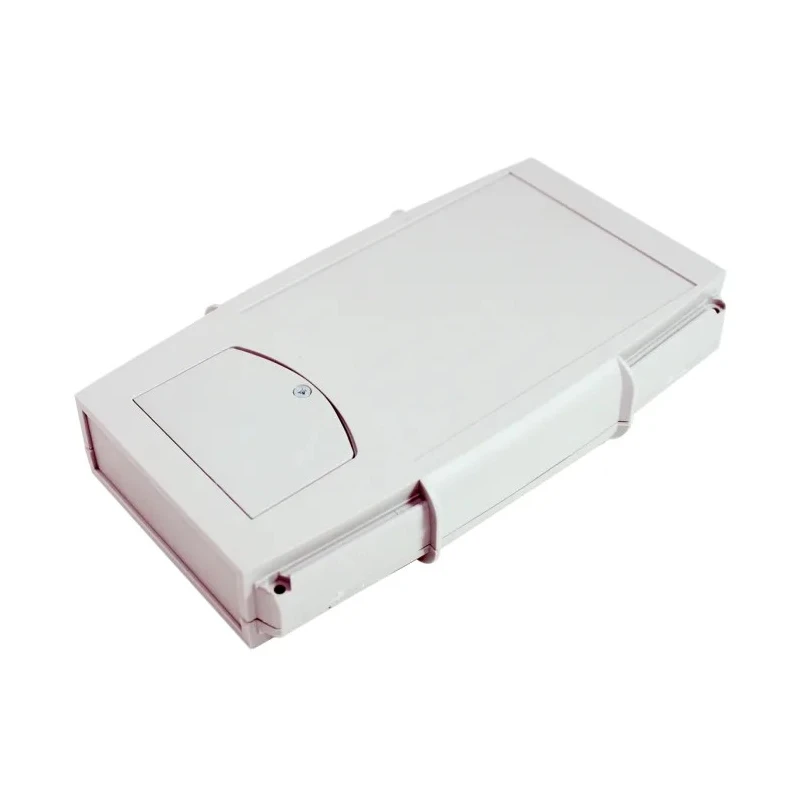

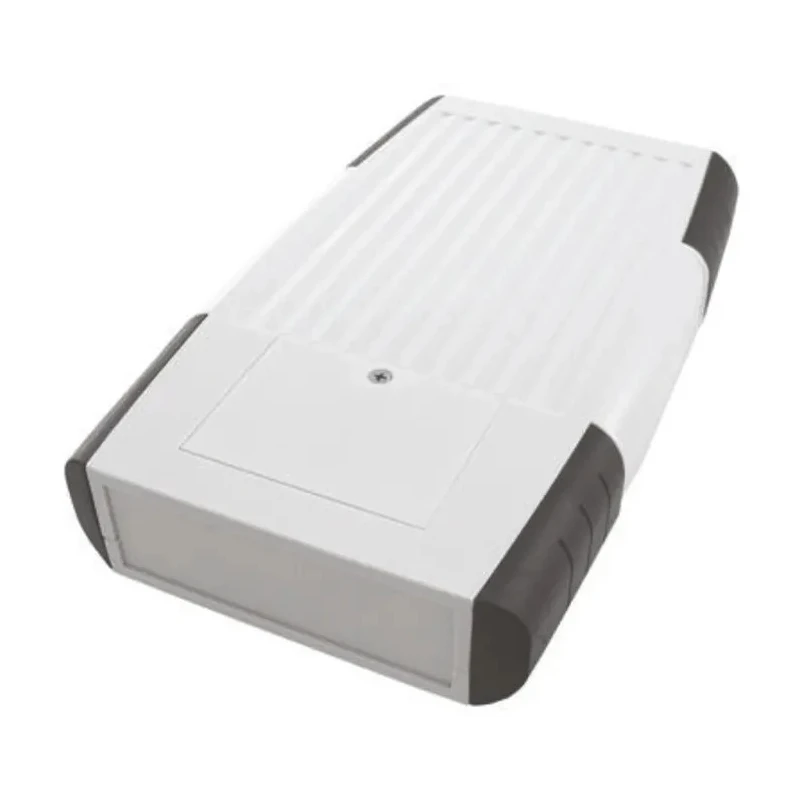

CAMDENBOSS 66 Series Grey ABS Handheld Enclosure Integral Battery Compartment IP65 IP54 200mm x 35mm x 120mm CHH666BGY

CAMDENBOSS CHH666BGY 66 Series Grey ABS Handheld Enclosure offers a robust housing solution with an integral battery compartment and IP65 and IP54 protection ratings. Molded from high-impact ABS material conforming to UL94-V0 standards, it ensures durability and safety for various electronic applications.

Featuring an ergonomic design with soft-grip corners, this enclosure facilitates quick and screwless assembly via the four corner pieces, which are supplied separately. The enclosure dimensions are 200mm in length, 120mm in width, and 35mm in height, making it compact and convenient for handheld use.

The internal mounting is designed with screw fixing to securely accommodate PCBs, while the recessed areas allow installation of membrane keypads or overlays, enhancing user interface capabilities. The integral battery compartment includes a retaining lid secured by an M3 screw, with optional screws available for added protection.

This enclosure is RoHS compliant and carries an origin designation of Spain. The optional EPDM gasket upgrade enhances the seal to meet IP65 requirements, offering reliable resistance against dust and water ingress across temperatures ranging from -20°C to +85°C.

Constructed from high impact ABS with UL94-V0 rating. Soft-grip grey corners provide ergonomic handling and protection. Integral battery compartment with a secure lid and optional retaining screws. Dual IP ratings IP65 upgrade via gasket, or standard IP54 protection.

Internal screw mounting for PCB installation. Recessed lid and base sections for membrane keypad overlays. RoHS compliant, manufactured in Spain. Corner pieces available separately in different colors for customization.

This handheld enclosure is perfectly suited for industrial, construction, manufacturing, electronic, and automation uses. Its versatile design and rugged construction offer an ideal solution for protecting handheld and battery-powered devices. Discover more electrical enclosures and related industrial components at EnvMart.
