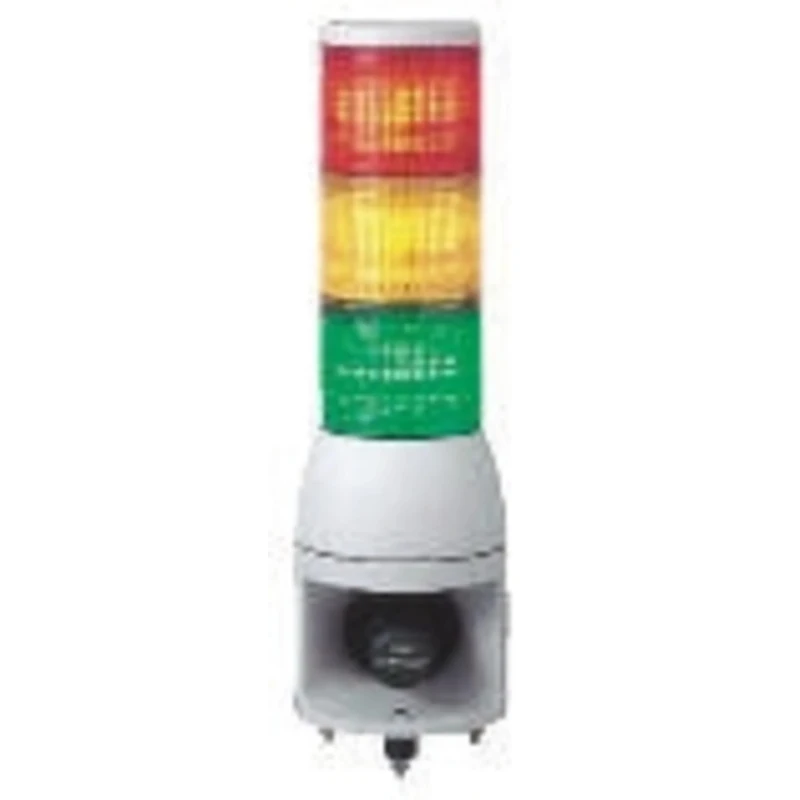

Schneider Electric Harmony Series Signal Tower Buzzer, 3 Lights Green Amber Red LED 24V dc Surface Mount XVC1B3SK

Schneider Electric XVC1B3SK Harmony Series Signal Tower Buzzer is engineered for industrial automation and machine-tool signalling applications. The assembly includes three super-bright LEDs in green, amber, and red colors mounted on a 100 mm diameter base with a sleek white housing. The device is pre-configured and pre-cabled for quick surface mounting and immediate operation at 24V dc.

This signal tower offers multifunction light effects including steady and flashing modes to accommodate diverse industrial signalling needs. The integrated buzzer produces a sound level of up to 85 dB at 1 meter, ensuring audible alerts are clearly heard in noisy factory environments. The buzzer’s tone can be adjusted by wiring modifications, enhancing signaling flexibility.

Designed for durability, the unit boasts an IP54 and IP23 ingress protection rating, safeguarding internal components from dust and water. It complies with CSA standards, instilling confidence in its safety and reliability. The operation temperature range of -30°C to 50°C makes it suitable for harsh and fluctuating environmental conditions.

The device includes a 500 mm connection cable and a cable terminal type connection for simplified installation. Its compact height of 372 mm and a base diameter of 100 mm provide a stable mount on vertical surfaces. Current consumption is 350 mA at 24V dc, supporting both AC/DC currents for versatile usage.

This Signal Tower is ideal for automation, manufacturing, industrial control panels, and machine tools. It provides effective visual and audible signalling to enhance operational safety and communication on the factory floor.

Three light elements with green, amber, and red LED lenses provide clear visual signals. Equipped with a buzzer sounder delivering a maximum sound level of 85 dB at 1 meter for audible alerts. Supports steady or flashing light effects with multifunction capabilities for varied signalling.

Pre-cabled with a 500 mm cable for easy installation on surface mounts. Durable IP54 and IP23 rated housing protects against dust and water ingress for industrial environments. Operates in a wide temperature range from -30°C to 50°C suitable for harsh conditions.

Constructed with a 100 mm base diameter and total height of 372 mm for robust industrial mounting. Certified to CSA standards ensuring compliance with industrial safety and quality norms. Energy-efficient LED bulbs consume 350 mA current at 24V dc and support AC/DC current types.

Designed with cable terminal type connection allowing flexible wiring and installation. Explore the wide range of automation signalling products from Schneider Electric at EnvMart for reliable and innovative control solutions.
