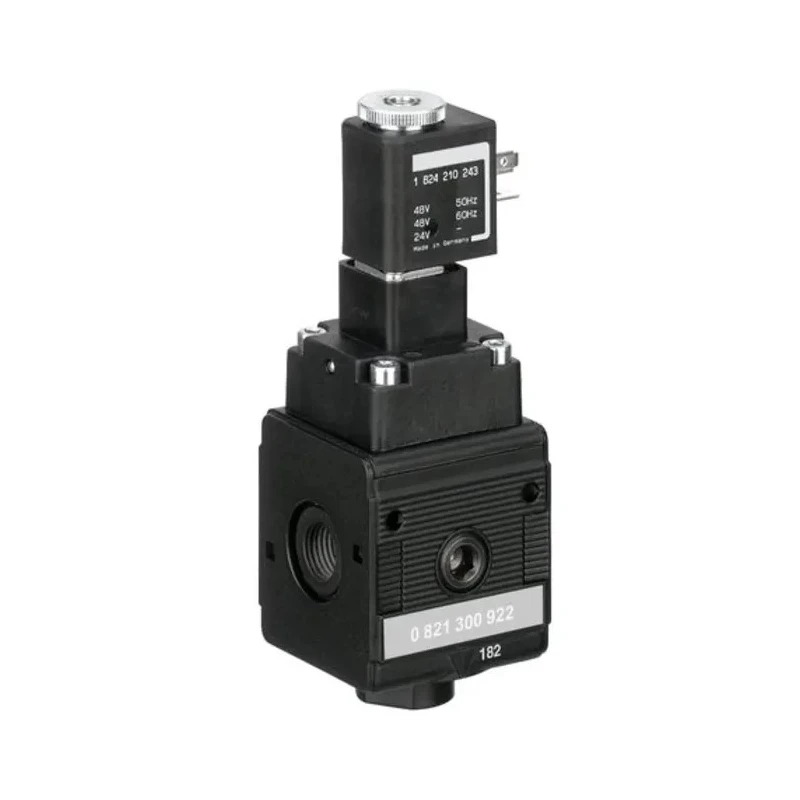

EMERSON ? AVENTICS Pneumatic Solenoid Valve Pilot/Spring G 24V DC 10 bar 1100L/min NL2-SOV

EMERSON ? AVENTICS NL2-SOV is a 3/2 shut-off pneumatic solenoid valve designed for industrial fluid power applications with pilot/spring actuation. Operating at a voltage of 24V DC and capable of handling a maximum operating pressure of 10 bar, this valve is built to deliver precise control and efficient flow regulation within pneumatic systems.

The valve features a die cast zinc body that offers robust construction resistant to mechanical wear and corrosion. It incorporates ABS seal material to ensure reliable sealing performance and long service life. With a maximum flow capacity of 1100 L/min, this poppet type valve supports demanding industrial applications requiring rapid response and high flow rates.

Operating temperature range is from -10°C to 60°C, making it suitable for various environmental conditions encountered in industrial settings. The valve requires a minimum pilot pressure of 2.5 bar for proper actuation, facilitating control via pilot signals and spring return. Equipped with a Form B electrical connector meeting ISO 6952 standards, it offers easy integration into control circuits.

The NL series valve design includes a protection class rating of IP65 when fitted with the appropriate plug, ensuring resistance to dust ingress and water jets, suitable for harsh industrial environments. It supports a duty cycle of 100%, making it reliable for continuous operation in manufacturing, automation, HVAC, and pneumatic machinery applications.

Compact dimensions of 131mm height, 52mm length, and 47mm width allow for installation in limited spaces, while its 1/4 inch G port size and thread standard ensure compatibility with common pneumatic piping systems. Made in Germany, the valve reflects precision engineering and compliance with international quality standards.

The valve has a port size of 1/4 inch G and utilizes a G connection thread standard. Constructed with a die cast zinc body and ABS seal material for durability. Allows a maximum flow rate of 1100 L/min ensuring efficient pneumatic control.

Operates reliably within a temperature range of -10°C to 60°C. Equipped with a poppet type valve function and two positions for effective control. Built with an IP65 protection class rating when fitted with plug ensuring protection against dust and water.

The valve requires a minimum pilot pressure of 2.5 bar for operation. Designed with 3 ports and a thread size of 1/4 inch, suitable for standard pneumatic systems. Compact form factor with dimensions of 131mm height, 52mm length, and 47mm width.

Designed and manufactured in Germany, assuring high-quality engineering standards.

This Pneumatic Solenoid Valve is ideal for industrial fluid power systems, manufacturing automation, pneumatic controls in HVAC systems, and machinery requiring reliable pneumatic actuation. Explore the extensive range of pneumatic valves and control components available at EnvMart for your industrial automation needs.
