Jumo PT100 RTD Sensor 7.5 mm Dia, 29 mm Long, 2 Wire, Class B Accuracy, 270 °C max PT100

Free Delivery in India | Lowest Global Shipping Charges

Jumo PT100 RTD Sensor 7.5 mm Dia, 29 mm Long, 2 Wire, Class B Accuracy, 270 °C max PT100

Name: Jumo PT100 RTD Sensor 7.5 mm Dia, 29 mm Long, 2 Wire, Class B Accuracy, 270 °C max PT100
Brand: JUMO
SKU: 215836
Price: 55.63 USD
Availability: InStock



Category RTD Sensor Brand JUMO Condition New

Specifications

Country of Origin	India
Accuracy	Class B
Brand	Jumo
Response time	6s
Model	PT100
Probe Material	Stainless Steel
Sensor Type	PT100
Probe length	29mm
Process connection	M14 x 1.5mm
Probe Diameter	7.5mm
Termination Type	Standard Plug
Maximum Temperature Sensed	270°C
Minimum Temperature Sensed	-50°C
Number of Wires	2
Jumo PT100 RTD Sensor 8 mm Dia, 50 mm Long, 2 Wire, Class B 270 °C maxBrand	Jumo
RS PRO PT100 RTD Detector 2.8 mm Dia, 25 mm Long, Class B 650 °C maxBrand	RS PRO

Key Features

Rugged stainless steel probe ensures durability under harsh environments.
Operates reliably with a 2-wire connection system.
Class B accuracy delivers precise temperature sensing performance.
Probe length of 29 mm and diameter of 7.5 mm for compact installations.
Standard plug termination facilitates secure and easy connection.
Responds quickly with a 6-second response time.
Suitable for temperature measurements from -50 °C to 270 °C.
Process connection with M14 x 1.5 mm threading for stable mounting.

Product Description

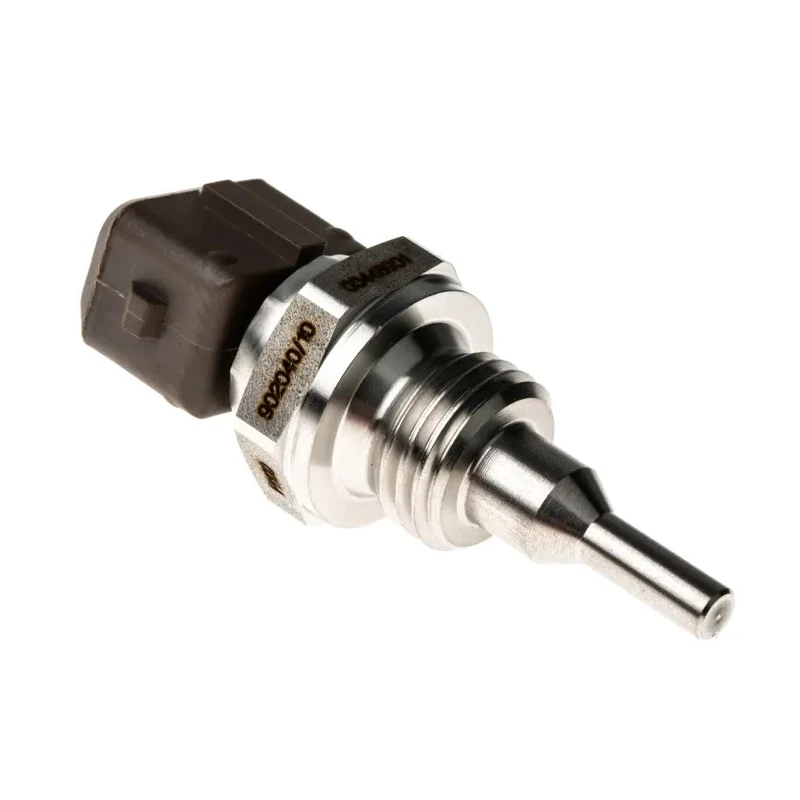

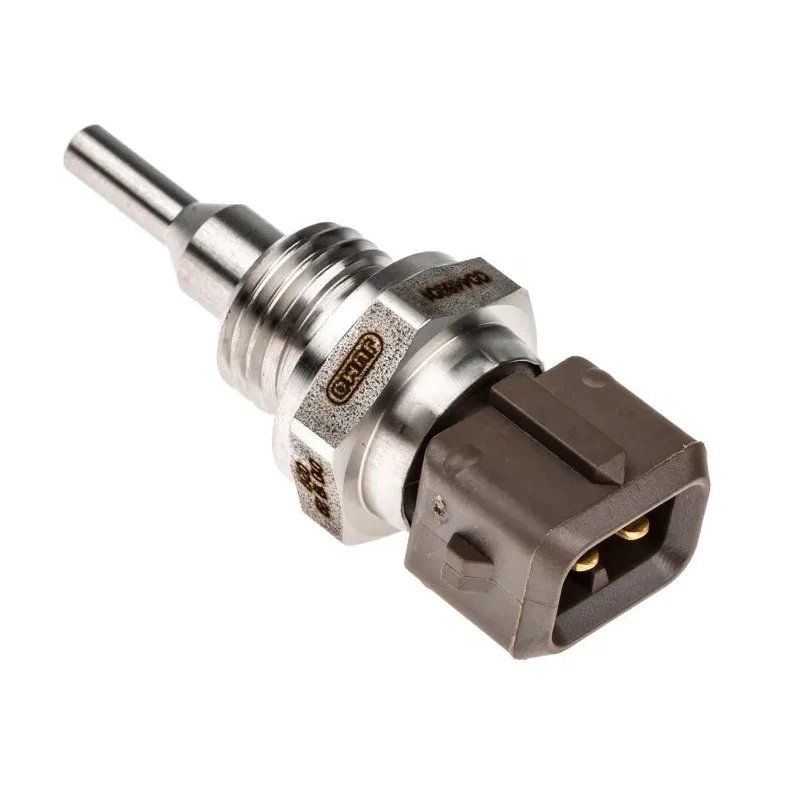

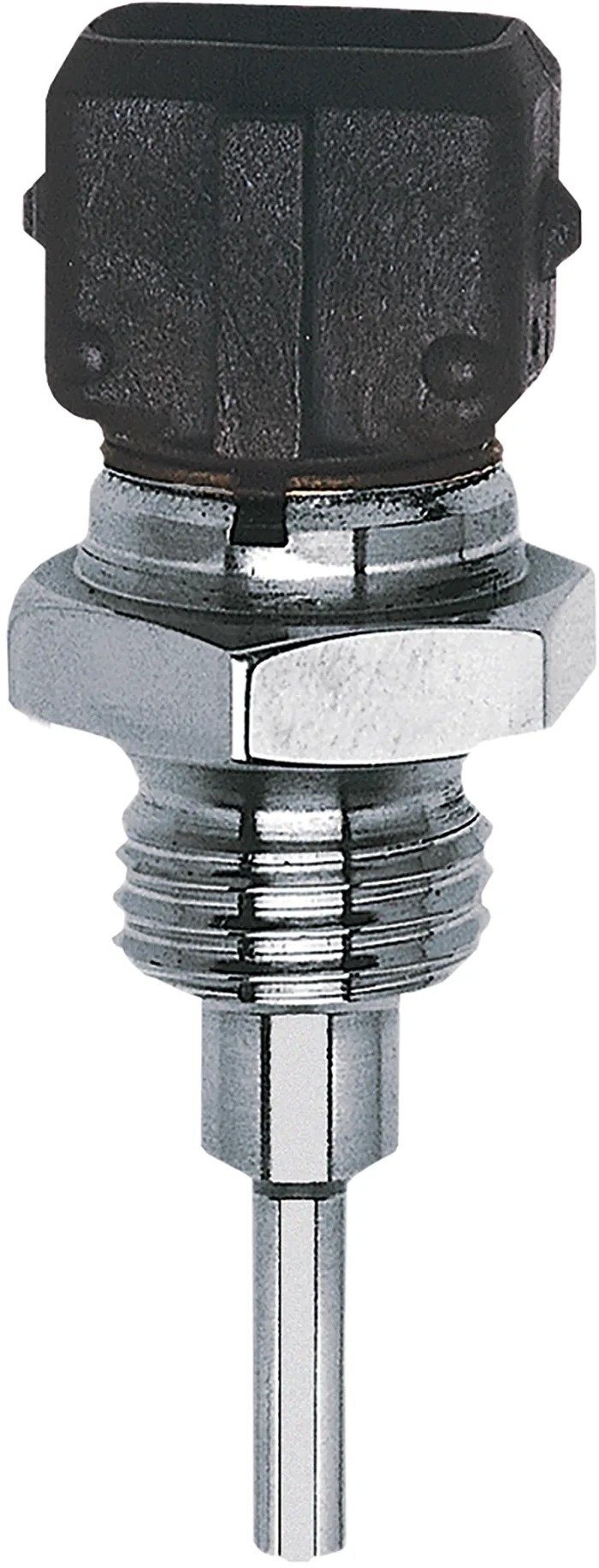

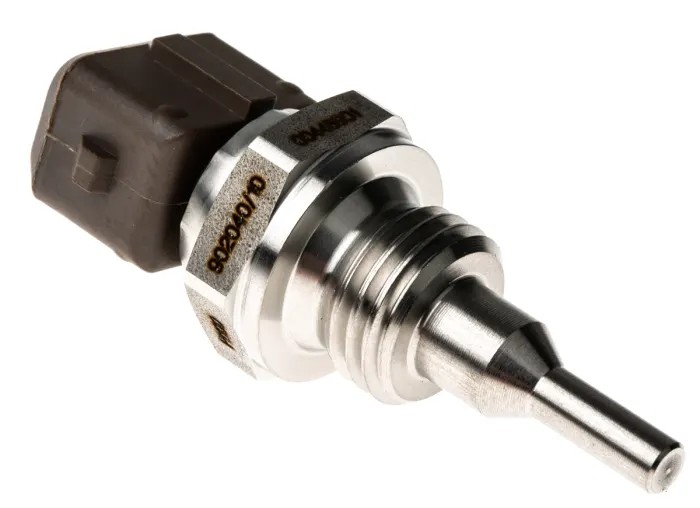

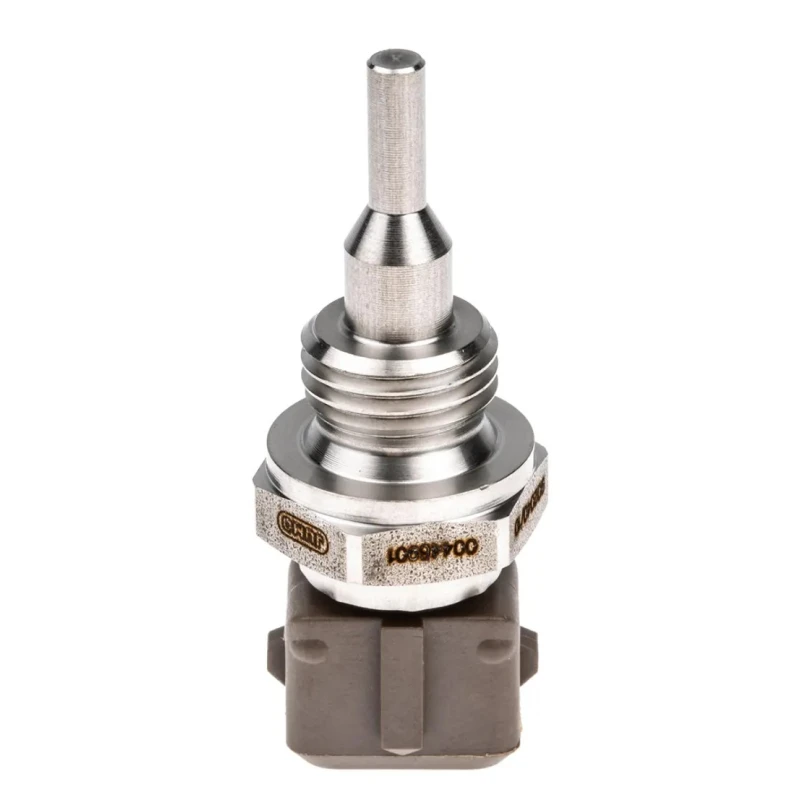

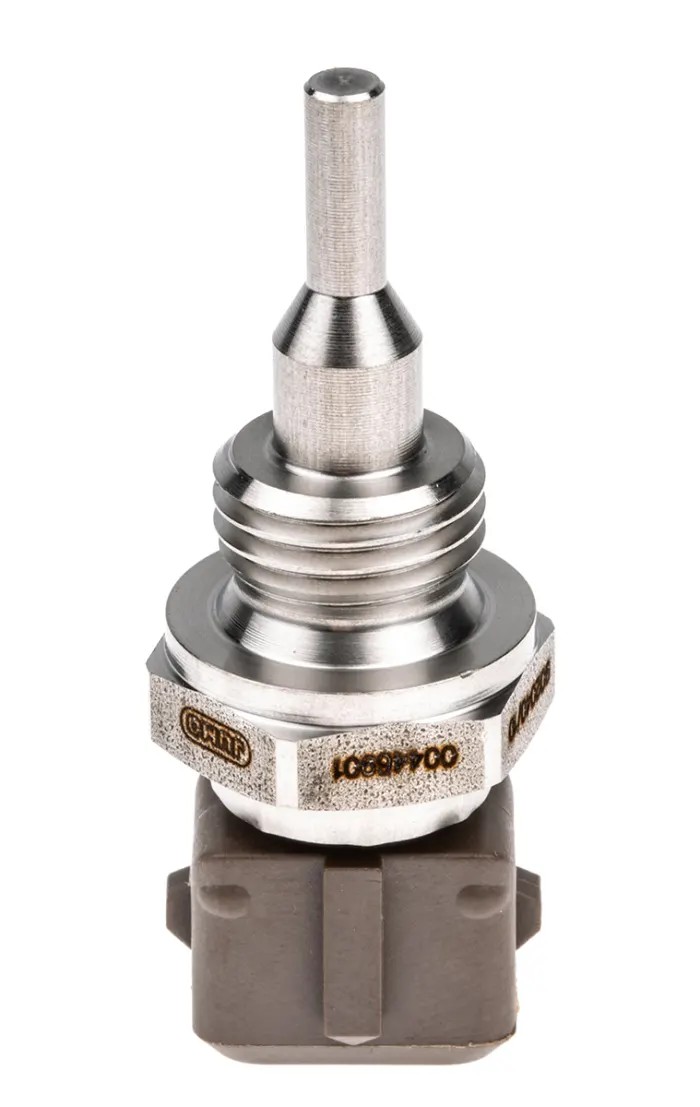

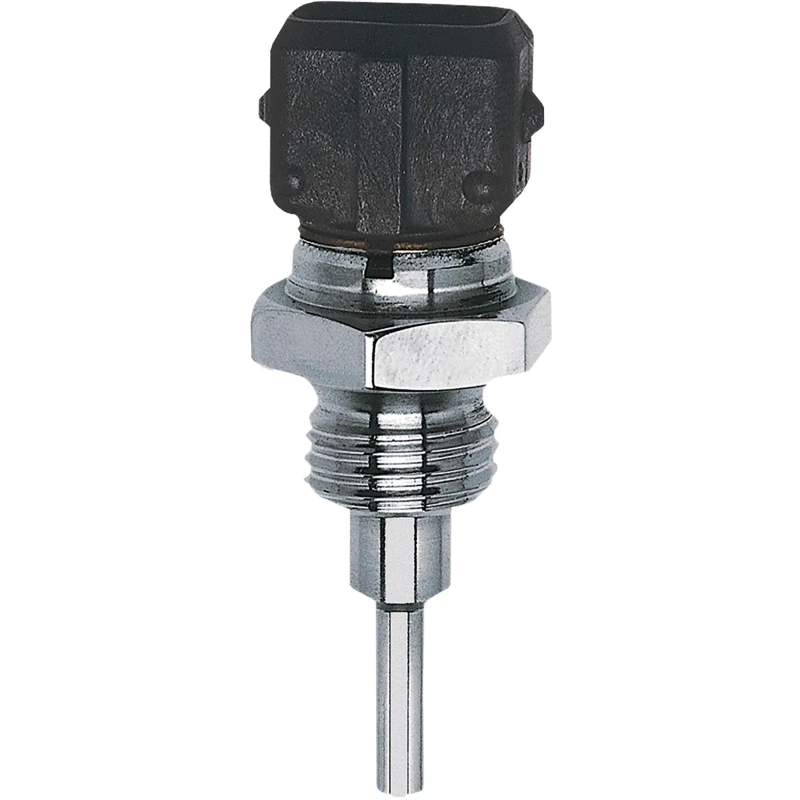

Jumo PT100 RTD Sensor PT100 model is a highly reliable temperature sensor featuring a 7.5 mm diameter and 29 mm length stainless steel probe. It operates accurately within a temperature range of -50 °C to 270 °C and is designed for demanding industrial environments requiring robust construction and dependable performance.

The sensor uses a 2-wire configuration and is equipped with a standard plug termination ensuring ease of installation and maintenance. Featuring Class B accuracy, it provides temperature measurements with reliable precision suitable for various industrial and laboratory applications.

The probe is manufactured from stainless steel, offering excellent chemical resistance and mechanical stability. The sensor includes a process connection of M14 x 1.5 mm, facilitating secure mounting in piping or equipment assemblies. Additionally, the sensor's IP65 protection rating ensures that it is dust-tight and protected against water jets, ideal for harsh industrial conditions.

Jumo PT100 RTD Sensor's quick 6-second response time allows for timely process control and monitoring. This sensor can withstand pressure environments up to 25 bars, making it suitable for use in motors, compressors, plant engineering, and shipbuilding.

Rugged stainless steel construction for durability. 2-wire Class B accuracy sensor configuration. Probe length of 29 mm and diameter of 7.5 mm. Shockproof connector design for secure attachment. Standard plug termination for simple wiring.

IP65 rated for protection against dust and water jets. Operating temperature range from -50 °C to 270 °C. Process connection: M14 x 1.5 mm threading. 6-second response time for fast temperature sensing. Pressure resistance up to 25 bars.

This Jumo PT100 RTD Sensor is well suited for applications in industrial automation, HVAC systems, manufacturing facilities, water treatment plants, and laboratory instrumentation. Its precise measurement capabilities and robust construction make it a dependable component for temperature sensing needs in demanding environments.
