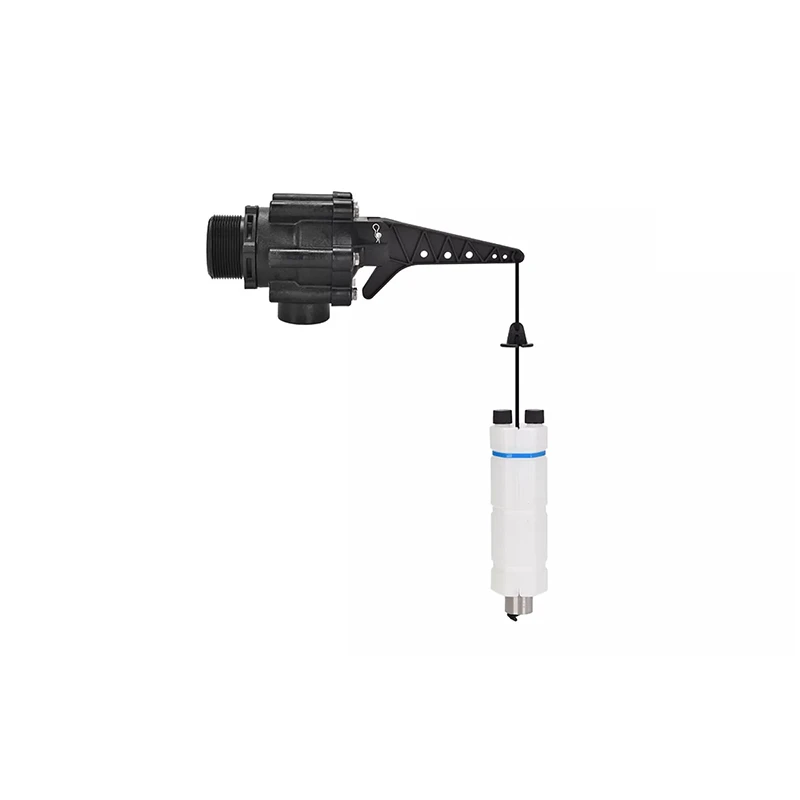

Tank buddy Valve TB32
Specifications
| Size | 1.25 |
|---|---|
| Usage | Industrial / Home |
| Working Pressure | 1–10 MPa / 1–10 Bar / 15–150 PSI |
| Flow Rate | 200 L/min |
| Model | TB32 |
| Adjustable Water Level | 50 mm up to 2.5 m customized |
Key Features
- High flow. Ideal for all makes and models of tanks.
- Available inlet sizes.Keeps pump operation to a minimum.
- Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m.
Product Description
The Tank buddy Valve TB32 is a patented product, It is ideal for water tanks that are filled by running water or a pressure system controlled by the water pump.The valve gives a level difference that is adjustable from 50mm up to 2.5m to minimize starting and stopping of running water or the pump system(Level difference accept Customization).WORK PRINCIPLE The valve mounts at the top side of the tank. It fits easily through a thin-walled tank or screws into a threaded tank inlet. As the tank empties, the float travels down the cord until it hits the level stopper. The valve then opens immediately to give a full flow. As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster. This lifts the arm and the valve shuts down. Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump off at a pressure at least one bar above the running pressure.
- Valve Seal Access System for quick access to valve seal.
- Easy installation
- High Durability
- Precise design
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow rate of this valve is 200 liters per minute.
The adjustable water level can be customized from 50 mm up to 2.5 m.
This valve operates within a working pressure range of 1 to 10 MPa, 1 to 10 Bar, or 15 to 150 PSI.
The inlet size for this model is 1.25 inches.
As the tank empties, the float travels down until it hits the level stopper, which opens the valve for full flow. The valve runs constantly until the float rises and shuts the valve down at the set level.
Yes, it is designed for both industrial and home applications.
It can be easily mounted through a thin-walled tank or screwed into a threaded tank inlet, ensuring straightforward installation.
The valve operates based on a float mechanism that adjusts the water level, minimizing the start and stop cycles of the pump system.
It features a Valve Seal Access System for quick access to the valve seal, facilitating maintenance.
Yes, the water level differential can be customized according to specific requirements.
This valve is ideal for water tanks filled by running water or pressure systems controlled by pumps.
It features a precise design aimed at high durability and easy operation to ensure effective water management.
