Tank buddy Valve TB20
Specifications
| Size | 45385 |
|---|---|
| Usage | Industrial / Home |
| Working Pressure | 1–10 MPa / 1–10 Bar / 15–150 PSI |
| Flow Rate | 200 L/min |
| Model | TB20 |
| Adjustable Water Level | 50 mm up to 2.5 m customized |
Key Features
- High flow. Ideal for all makes and models of tanks.
- Available inlet sizes.Keeps pump operation to a minimum.
- Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m.
Product Description

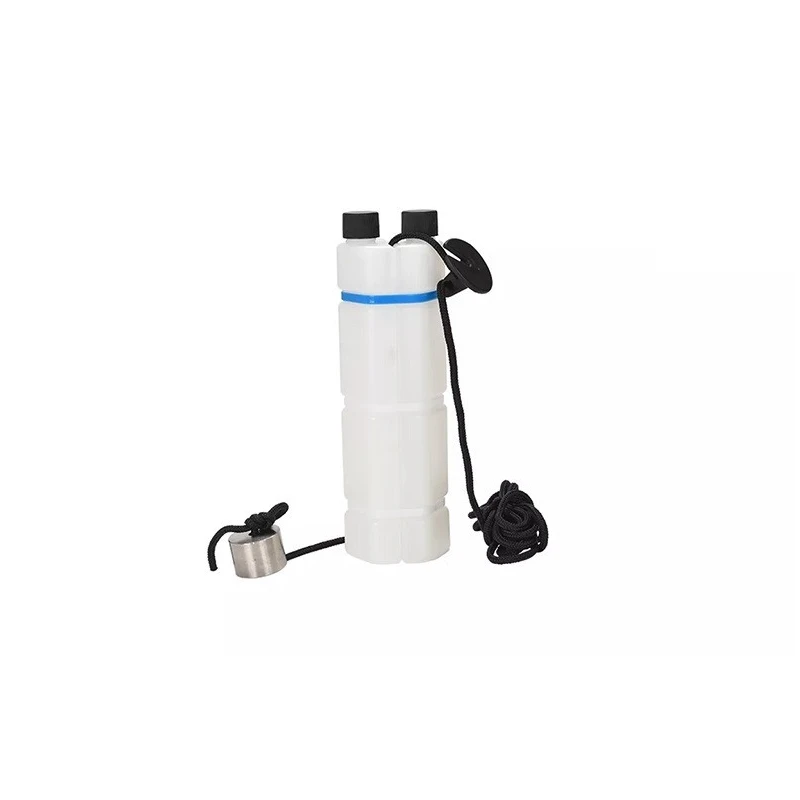

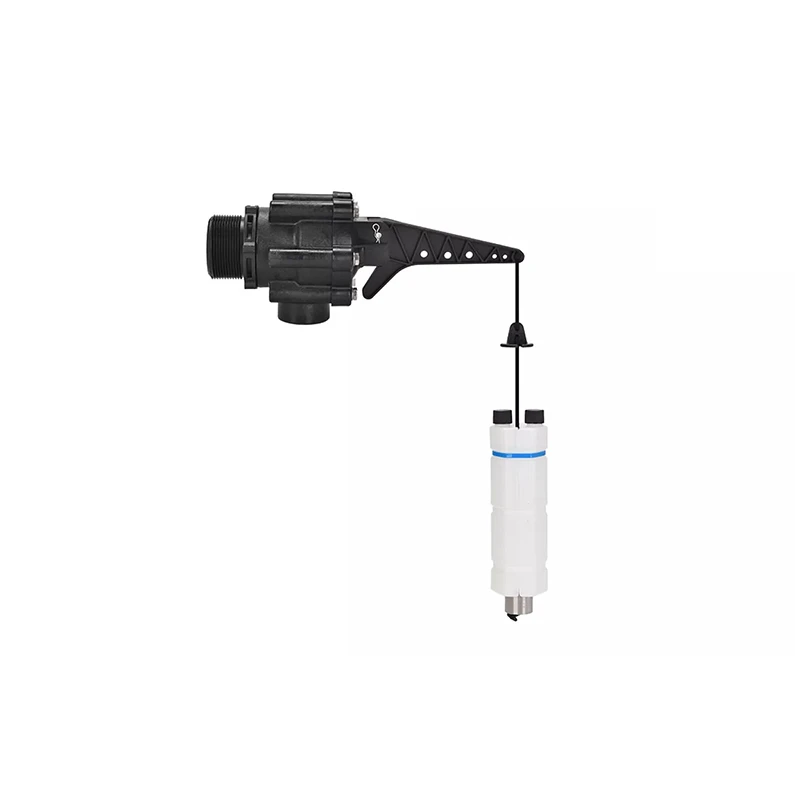

The Tank buddy Valve TB20 is a patented product, It is ideal for water tanks that are filled with running water or a pressure system controlled by the water pump.The valve gives a level difference that is adjustable from 50mm up to 2.5m to minimize starting and stopping of running water or the pump system(Level difference accept Customization).WORK PRINCIPLE The valve mounts at the top side of the tank. It fits easily through a thin-walled tank or screws into a threaded tank inlet. As the tank empties, the float travels down the cord until it hits the level stopper. The valve then opens immediately to give a full flow. As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster. This lifts the arm and the valve shuts down. Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump off at a pressure at least one bar above the running pressure.
- Valve Seal Access System for quick access to valve seal.
- Easy installation
- High Durability
- Precise design
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum flow rate of the Tank Buddy Valve TB20 is 200 liters per minute.
The adjustable water level range for the Tank Buddy Valve TB20 is from 50 mm to 2.5 m, and this can be customized.
The working pressure range for this valve is between 1 to 10 MPa, which is equivalent to 1 to 10 Bar or 15 to 150 PSI.
The valve can be mounted at the top side of the tank and fits easily through a thin-walled tank or screws into a threaded tank inlet.
This valve is ideal for all makes and models of tanks, particularly those filled with running water or controlled by a pressure system.
The specific materials used in the construction of the Tank Buddy Valve TB20 are not detailed in the provided information.
Yes, the starting and stopping levels can be easily adjusted to provide different water level differentials.
The valve is suitable for both industrial and home applications.
Yes, it includes a valve seal access system for quick access to the valve seal.
The model number of this valve is TB20.
As the tank empties, the float travels down until it hits the level stopper, causing the valve to open for full flow. When the tank fills, the float rises and shuts the valve down at the set level.
The size specification for the Tank Buddy Valve TB20 is 45385.
