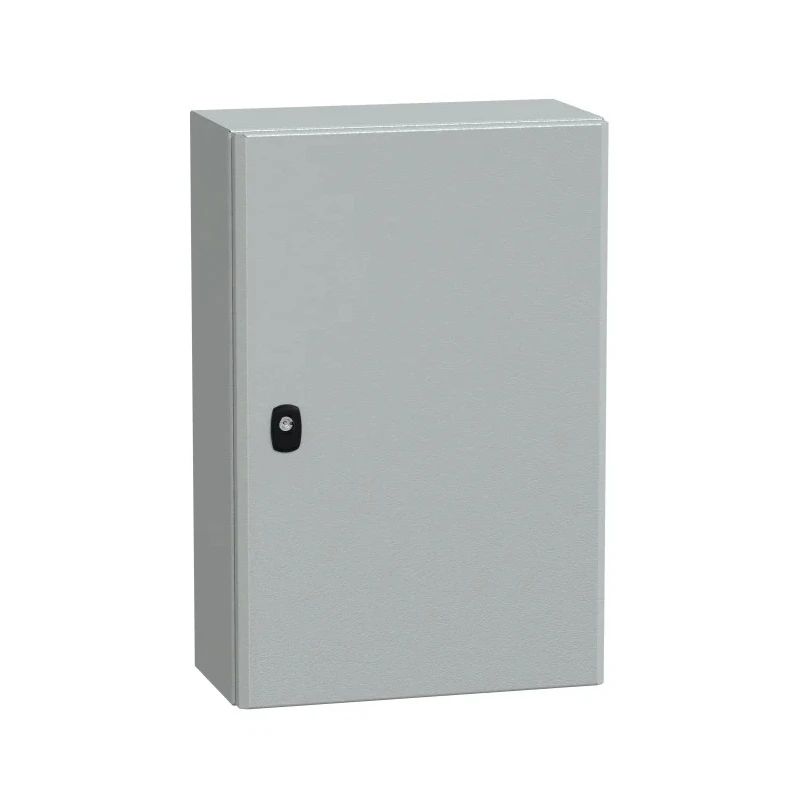

Rittal PanelSeT S3D Series Steel Wall Box, IP67 IP66, 600mm x 400mm x 200mm NSYS3D6420P

Schneider Electric NSYS3D6420P PanelSeT S3D Series Steel Wall Box is a robust electrical enclosure designed for industrial and commercial applications, offering superior protection with an IP67 and IP66 rating. The box measures 600 mm in height, 400 mm in width, and 200 mm in depth with a steel body finished in epoxy-polyester powder. It is a new product made in France and includes a mounting plate for easy wall installation.

The enclosure features a single piece body with a plain door secured by a 3-point closure system incorporating a 3 mm double bar lock insert to prevent unauthorized access. The door swings open up to 120°, enabling unobstructed access for maintenance and wiring work. A strong polyurethane (PU) sealing gasket ensures the enclosure remains water-tight, suitable for damp or outdoor environments.

Included is a cable gland plate, equipped with a patterned grid design, providing safe cable entry and exit with easy drilling options. The PanelSeT S3D meets important industry standards such as UL, IEC 62208, REACH, BV, DNV, cUL, LR, and RoHS, ensuring compliance with global safety and environmental guidelines. The grey RAL 7035 color finish is standard for industrial enclosures.

Rated with an IK10 impact resistance rating, the enclosure provides excellent protection against mechanical impacts. Applications include pharmaceutical manufacturing, industrial factories, and wire and cable storage. The enclosure comes with a fixing kit to aid in installation.

This product emphasizes sustainability with the 'Better World Claim' of being designed for disassembly, allowing for easier recycling at end of life. The enclosure is constructed from steel with an epoxy-polyester powder finish for durability.

It provides high protection with IP66 and IP67 ingress protection ratings. The door is plain with a 3-point closure system and a 3 mm double bar lock insert for enhanced security. Includes a mounting plate and fixing kit to facilitate wall mounting installations.

The door opens at a 120° angle for easy access to internal components. Strong polyurethane sealing gasket prevents water ingress in outdoor or damp settings. Complies with multiple standards including UL, IEC 62208, REACH, BV, DNV, cUL, LR, and RoHS.

Rated IK10 for impact protection with grey RAL 7035 coloration. Designed for industrial and pharmaceutical applications requiring secure cable and wire management. Equipped with a cable gland plate featuring a patterned grid for safe cable feed-through.
