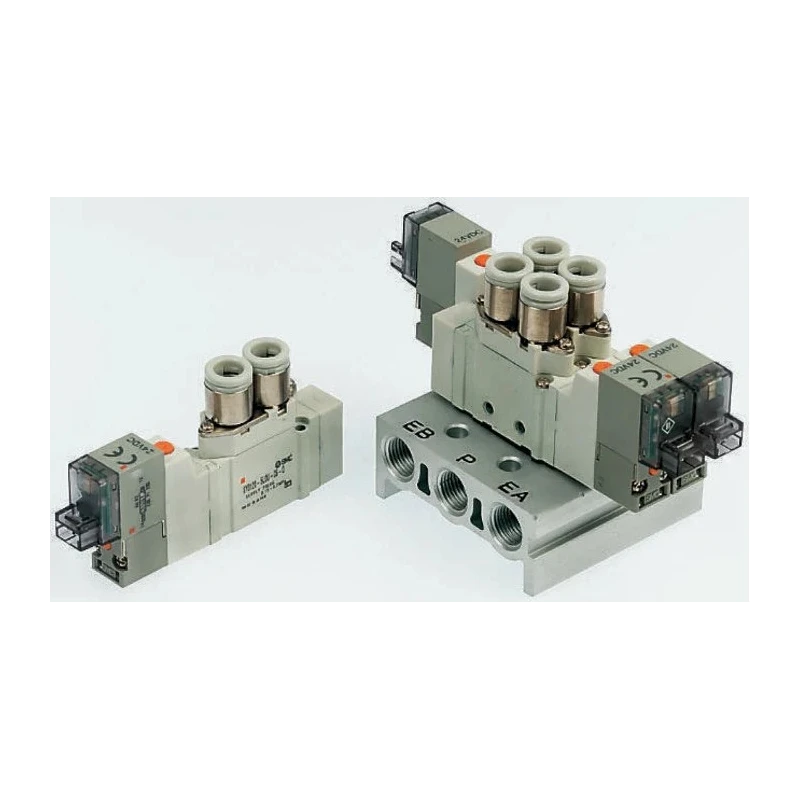

SMC Pneumatic Solenoid Valve Pilot Rc SY5000 Series 24V DC 5 Port Die Cast Aluminium

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Pilot Rc SY5000 Series 24V DC 5 Port Die Cast Aluminium



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SY5000
Mount Type	Base, Body Ported
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	One-Touch Fitting
Seal Material	Rubber, Halogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Pilot
Maximum Flow Rate	687NL/min
Connection Thread Standard	Rc
Minimum Pilot Pressure	0.1MPa
Valve Function	5 Port, Spool

Key Features

This valve operates with a maximum pressure of 0.7 MPa.
The body is made of die cast aluminium for durability.
The valve features rubber and halogenated nitrile rubber seals for enhanced longevity.
Designed for mounting on base or body ported configurations.
Operating temperature ranges from -10°C to 50°C for versatile industrial use.
Minimum pilot pressure requirement is 0.1 MPa to ensure stable actuation.
The valve provides a high maximum flow rate of 687 NL/min.
It functions as a 5 port spool valve suited for precise pneumatic applications.

Product Description

SMC SY5440-5YO-Q Pneumatic Solenoid Valve Pilot Rc SY5000 Series is a high-performance 5 port solenoid valve designed to serve as an interface between electronic controllers and pneumatic systems. Featuring a robust die cast aluminium body and a pilot actuation type, this valve offers enhanced reliability and energy efficiency. It operates at 24V DC with a maximum working pressure of 0.7 MPa and supports a maximum flow rate of 687 NL/min.

The valve is equipped with halogenated nitrile rubber seals that provide excellent resistance and durability under various industrial environments. It is constructed for mounting on base or body-ported manifolds, facilitating easy installation and maintenance.

Operating temperature ranges from -10°C to 50°C enable the valve to perform reliably in diverse conditions, while a minimum pilot pressure of 0.1 MPa ensures stable and responsive actuation. The 5 port spool configuration contributes to precise pneumatic control, ideal for industrial automation, manufacturing, water treatment, and HVAC systems.

Accessories such as din rail kits, silencers, and blanking plates are available separately to complement installation requirements. This valve operates with a maximum pressure of 0.7 MPa. The body is made of die cast aluminium for durability.

The valve features rubber and halogenated nitrile rubber seals for enhanced longevity. Designed for mounting on base or body ported configurations. Operating temperature ranges from -10°C to 50°C for versatile industrial use.

Minimum pilot pressure requirement is 0.1 MPa to ensure stable actuation. The valve provides a high maximum flow rate of 687 NL/min. It functions as a 5 port spool valve suited for precise pneumatic applications. Voltage rating of 24V DC supports efficient electrical control.

Manufactured in Japan, ensuring high-quality standards. Explore our range of pneumatic valves and precision components in the Industrial Supplies category at EnvMart for reliable automation solutions.
