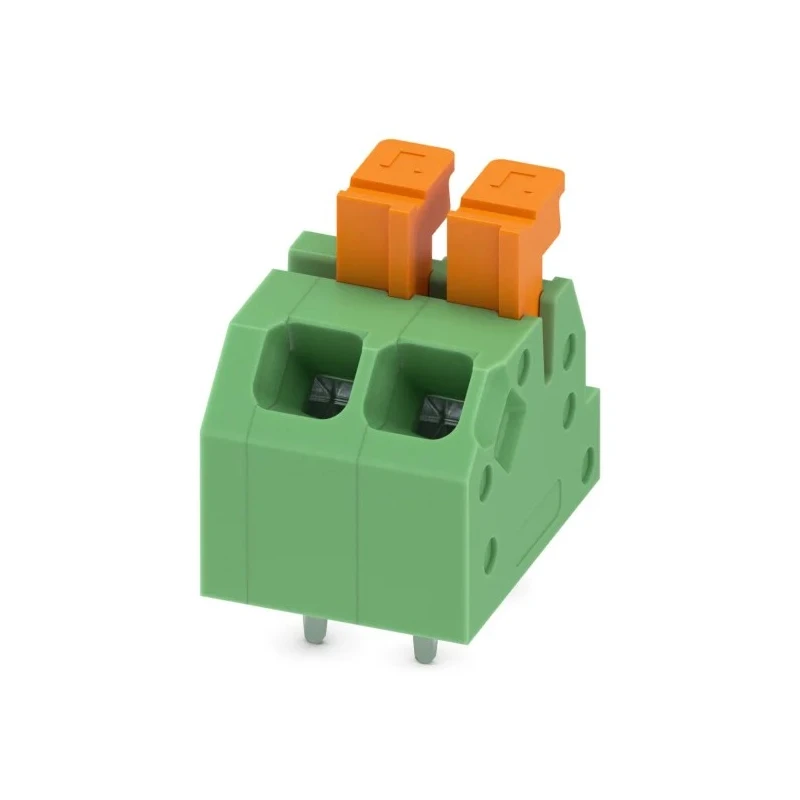

Phoenix Contact PCB Terminal Block SPTAF 1/ 2-3.5-LL Series Angled 2 Contact 3.5 mm Pitch 2 Row 1864286

Name: Phoenix Contact PCB Terminal Block SPTAF 1/ 2-3.5-LL Series Angled 2 Contact 3.5 mm Pitch 2 Row 1864286
Brand: PHOENIX CONTACT
SKU: 214630
Price: 0.93 USD
Availability: InStock



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	160V
Brand	Phoenix Contact
Orientation	Angled
Current	13.5A
Model	1864286
Housing Material	Polyamide
Series	SPTAF 1/ 2-3.5-LL
Number of Rows	2
Pitch	3.5mm
Standards/Approvals	cULus Recognised, EU RoHS, UL Recognised
Number of Contacts	2
PCB Terminal block, nominal current	13.5 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 2, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green

Key Features

Offers nominal current of 13.5 A and nominal voltage of 160 V ensuring efficient power handling.
Features push-in spring connection for quick wire termination without tools.
Constructed with polyamide housing material providing robust insulation and durability.
Angled orientation and 45° conductor/PCB connection enable space-saving layout on circuit boards.
Includes finger-operated fixable release button for easy and secure wire release.
Equipped with integrated test option for convenient functional verification.
Mountable via wave soldering process for stable mechanical and electrical connections.
Complies with cULus Recognised and EU RoHS standards ensuring safety and environmental compliance.

Product Description

Phoenix Contact 1864286 PCB Terminal Block from the SPTAF 1/ 2-3.5-LL series is an angled, 2-contact terminal block with 3.5 mm pitch and 2 rows, rated for nominal current of 13.5 A and voltage of 160 V. It is engineered for efficient power connections on printed circuit boards, combining practical features with durable construction.

The terminal block utilizes a reliable push-in spring connection, eliminating the need for tools and significantly saving assembly time. The polyamide housing ensures high insulation and robustness, suitable for use in electronic assembly, power distribution, and industrial control applications. Its angled design and 45° conductor to PCB connection facilitate optimized board space utilization in compact electronic devices.

For operational convenience, it incorporates a finger-operated, fixable release button, allowing secure and straightforward wire release. Integrated test points enable quick and safe testing, enhancing maintenance efficiency. The wave solder mounting supports strong and lasting mechanical and electrical performance on PCBs.

This product meets recognized safety certifications including cULus and complies with EU RoHS directives, ensuring environmental sustainability and regulatory compliance. Manufactured in Germany, it represents precision engineering with a commitment to quality and reliability for industrial, manufacturing, and electronics markets.

Nominal current capacity of 13.5 A for moderate power requirements. 160 V nominal voltage suitable for diverse electronic circuits. 3.5 mm pitch and 2 rows allow compact yet secure PCB connections. Push-in spring connection method offers time-saving installation.

Polyamide housing provides excellent electrical insulation and durability. Angled design with 45° wire entry optimizes PCB layout. Finger-operated release button for easy wire removal. Integrated testing option for routine maintenance.

Wave solder mounting ensures stability and longevity. Certified for safety and environmental standards compliance.

Ideal for electronics manufacturing, industrial control equipment, and power distribution assemblies requiring reliable and compact PCB terminal solutions. Explore more PCB Terminal Blocks and related components from leading brands at EnvMart for your next electronic project.
