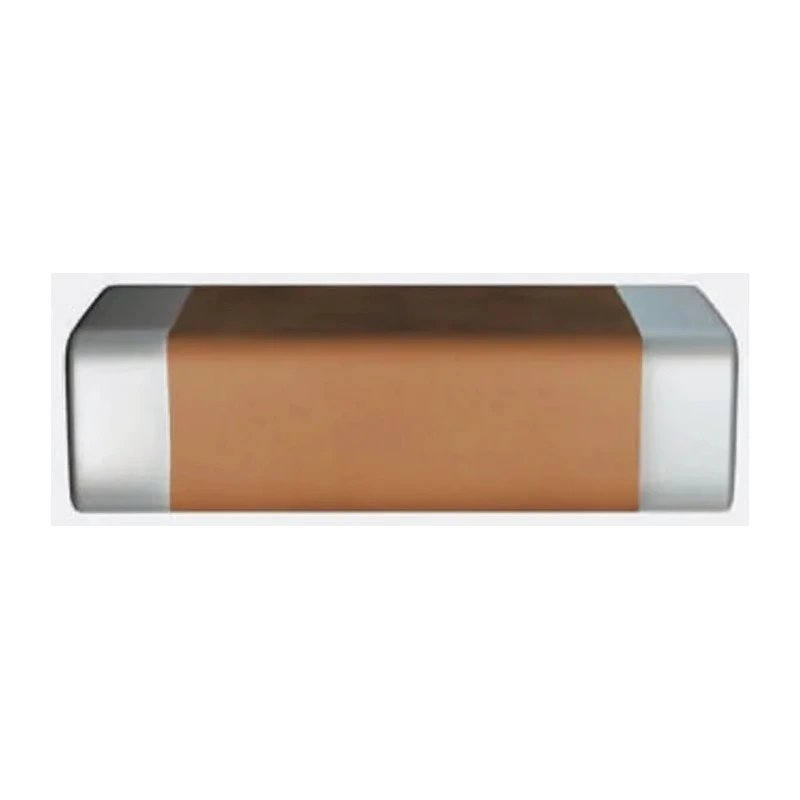

KYOCERA AVX 10 nF Multilayer Ceramic Capacitor, 50V dc, ±10 % Tolerance, Surface Mount, Package 0603 06035C103KAZ2A

KYOCERA AVX 06035C103KAZ2A is a 10 nF Multilayer Ceramic Capacitor designed for surface mount applications. Rated at 50V dc with ±10 % tolerance, this capacitor features a compact 0603 package, measuring 1.6mm in length, 0.81mm in width, and 0.94mm in height. The X7R dielectric provides temperature stability within ±15% from -55°C to 125°C, making it suitable for various operating conditions in industrial electronics.

This standard series capacitor offers excellent electrical characteristics including low leakage and low Equivalent Series Resistance (ESR), advantageous for high frequency power converters, resonators in switch mode power supplies, and DC coupling or blocking circuits. The product is supplied on reels, facilitating automated assembly and improving production efficiency.

The MLCC design delivers reliable capacitance performance under varying voltage and frequency conditions, with a non-linear capacitance characteristic typical of X7R dielectrics. This capacitor is not automotive rated and uses surface mount termination for standard applications.

Applications include industrial electronics, power management systems, telecommunications equipment, and consumer electronic assemblies where stable capacitance and compact size are critical. The operating temperature range from -55°C to 125°C ensures durability in demanding environments.

Features a compact package size of 0603 (1.6mm length, 0.81mm width, 0.94mm height). Utilizes X7R dielectric material ensuring temperature stability from -55°C to 125°C. Standard series capacitor suitable for a variety of electronic component uses.

Supplied in reel packaging for efficient machine insertion and automated assembly. Low ESR and high voltage chip design optimizes performance in power converters and DC blocking applications. Non-automotive grade with surface mount termination type for standard PCBs.

Capacitance varies under operating voltage and frequency conditions consistent with X7R dielectric characteristics. Durable operating temperature range and robust design for industrial and commercial electronics. Explore more in the MLCCs category on EnvMart for high quality Multilayer Ceramic Capacitors from KYOCERA AVX and other leading manufacturers.
