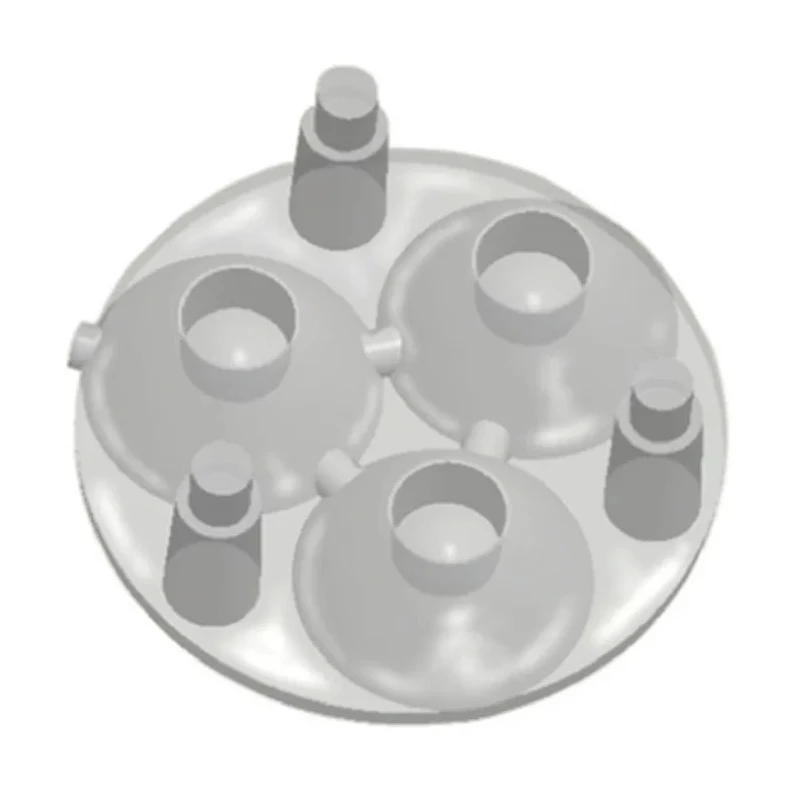

Carclo 3-Way LED Lens 22° Frosted Medium Polycarbonate Diffused Push Fit 20mm Diameter 7.5mm Height 10508
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20mm |
| Brand | Carclo |
| Height | 7.5mm |
| Model | 10508 |
| Viewing angle | 22 ° |
| Lens Material | Polycarbonate |
| For Use With | Lumileds LUXEON Rebel |
| Lens Shape | Frosted Medium |
| Lens Style | Diffused |
| Fixing Method | Push Fit |
| Number of LEDs Per Lens | 3 |
Key Features
- The lens is designed with 3 LEDs per lens for optimal light distribution.
- It features a diffused lens style providing soft illumination.
- The viewing angle is precisely 22 degrees for controlled beam spread.
- Its diameter is 20 mm with a height of 7.5 mm, suitable for compact LED assemblies.
- The fixing method is push fit, allowing easy installation without additional hardware.
- Material is durable polycarbonate ensuring long operational life.
- This lens is intended for use with Lumileds LUXEON Rebel LEDs.
- It complies with no specific standards or approvals.
Product Description
Carclo 10508 3-Way LED Lens 22° is an optical component designed for integration in LED lighting assemblies requiring precise light control and compact form factor. Constructed from high-quality polycarbonate, this lens features a frosted medium shape that diffuses light efficiently for balanced illumination.
This lens accommodates three individual LEDs, making it ideal for cluster configurations in compact designs. With a viewing angle of 22 degrees, it provides a focused yet smooth beam, enhancing lighting uniformity and control in demanding electronic and lighting applications.
The 20 mm diameter and 7.5 mm height are optimized for small-scale installations where space constraints exist. The push fit fixing method simplifies mounting in LED modules, ensuring secure placement without the need for screws or adhesives.
Carclo LED lenses are widely used in industrial, commercial, and consumer electronics applications such as LED indicators, displays, and lighting systems. The compatibility with Lumileds LUXEON Rebel series LEDs offers versatility in design and performance adjustment.
The lens shape is frosted medium for diffused light output. Contains 3 LEDs per lens for effective cluster illumination. Made from durable polycarbonate to ensure longevity. Fixed via push-fit method for easy assembly. Designed for use with Lumileds LUXEON Rebel LEDs.
Dimensionally compact with 20 mm diameter and 7.5 mm height. Provides a 22° viewing angle for focused light beams. No specific regulatory approvals apply.
These LED lenses are part of Carclo's precision 10 mm optics family, designed to meet the needs of projects where space-saving and efficient light control are paramount. They find applications in lighting optics for electronics, automotive indicators, signage, and other specialized illumination systems.
For detailed LED compatibility, refer to Carclo Optics official documentation. This product represents a high quality, reliable solution for engineers and designers in LED lighting manufacturing.
Explore more Carclo optics and LED lighting components on EnvMart for superior quality and technical performance.
Explore more products in our LED Lenses & Reflectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The lens has a diameter of 20 mm and a height of 7.5 mm, making it suitable for compact LED assemblies.
This model features a viewing angle of 22 degrees, providing controlled beam spread for focused illumination.
The lens is designed to accommodate three individual LEDs per lens, making it ideal for cluster configurations.
It is constructed from durable polycarbonate, which ensures longevity and effective light diffusion.
The lens utilizes a push fit fixing method, allowing for easy installation without the need for additional hardware.
This lens is specifically designed for use with Lumileds LUXEON Rebel LEDs, enhancing its compatibility in LED lighting applications.
The lens features a frosted medium shape, which helps in diffusing light efficiently for balanced illumination.
This lens is suitable for various applications including LED indicators, displays, and lighting systems in industrial, commercial, and consumer electronics.
The lens has a diffused style, providing soft illumination and enhancing lighting uniformity.
The overall dimensions of this lens are 20 mm in diameter and 7.5 mm in height, making it compact for various installations.
This lens does not comply with any specific standards or approvals, according to the provided information.
The Carclo 3-Way LED Lens is manufactured in India.
