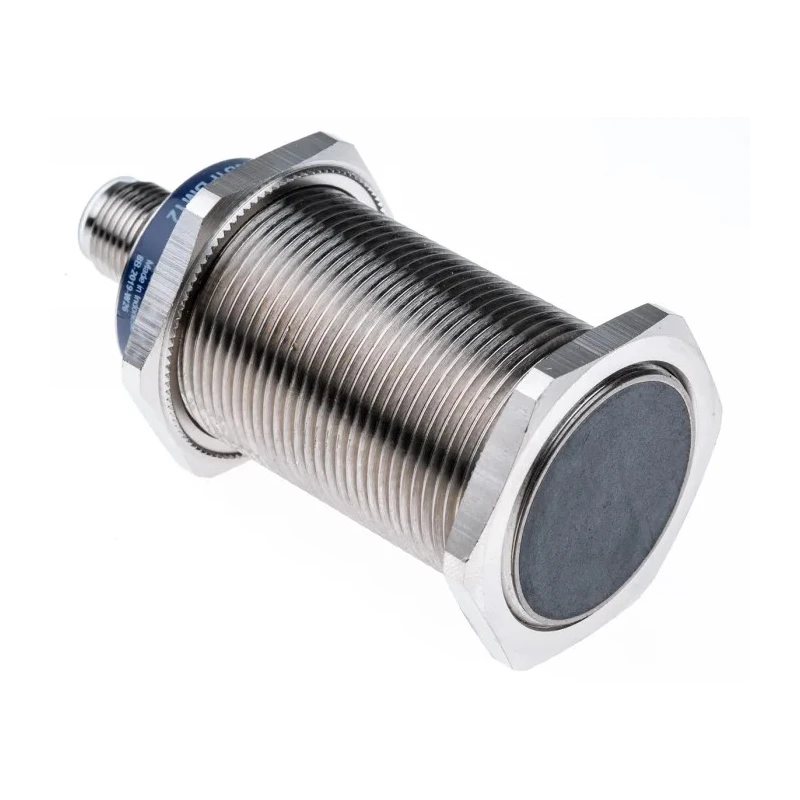

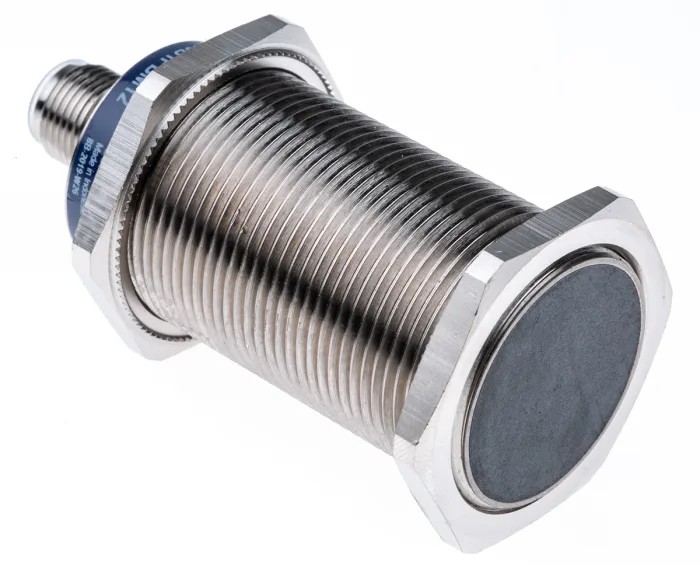

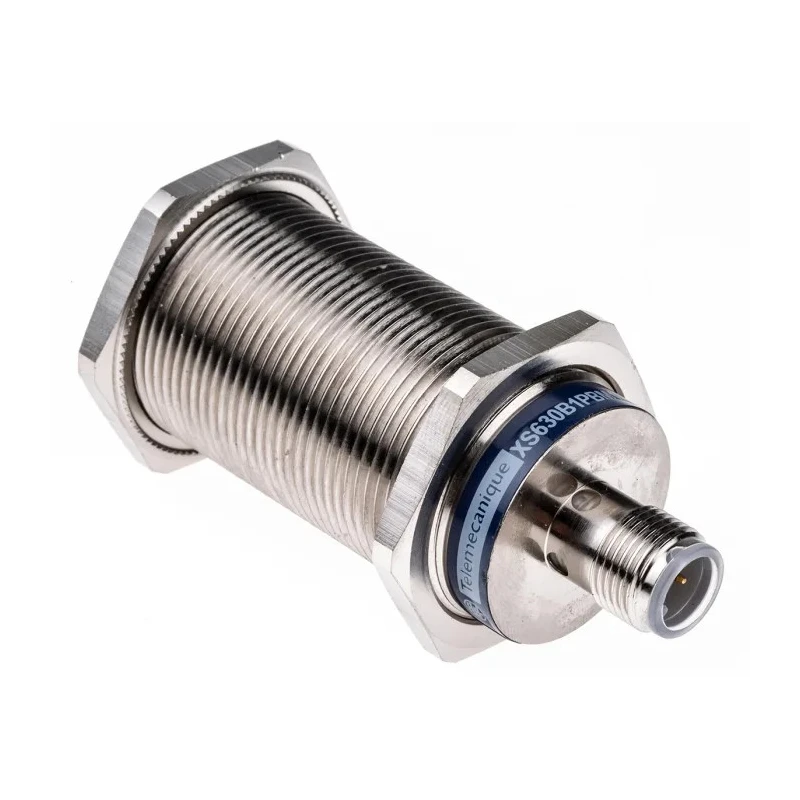

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 48V dc 15 mm XS630B1PBM12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 74mm |
| Model | XS630B1PBM12 |
| IP Rating | IP69K |
| Mount Type | Flush |
| Housing Material | Nickel Plated Brass |
| Output type | PNP |
| Series | XS |
| Maximum Operating Temperature | 70°C |
| Thread Size | M30 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | 4-Pin M12 Male |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 58V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 48V dc |
| Materials Detected | Metal |
| Maximum Detection | 15mm |
Key Features
- Thread size M30 x 1.5 with nickel plated brass housing.
- Flush mount design with threaded length of 52 mm and total length of 74 mm.
- PNP discrete output type with switching current of 200mA.
- Maximum supply voltage of 48V DC and maximum detection range of 15 mm.
- IP69K and IP67 rated for protection against dust and water ingress.
- Operating temperature range from -25°C up to 70°C.
- Includes 4-pin M12 male connector for easy electrical connection.
- Compatible with metal materials detection using shielded sensor design.
Product Description
Telemecanique Sensors XS630B1PBM12 is a high-quality threaded barrel inductive proximity sensor designed for demanding industrial environments. Equipped with a nickel plated brass housing and a sturdy M30 x 1.5 thread size, this sensor features a threaded length of 52 mm and an overall length of 74 mm, suitable for flush mounting in metal detection applications.
This PNP output sensor operates between 12 to 48 V DC with reverse polarity protection and delivers a reliable detection range of 15 mm for metal objects. It supports a maximum switching frequency of 500 Hz and a switching current of 200 mA, ensuring rapid and accurate sensing performance in fast-moving automation systems.
The sensor provides high ingress protection rated IP67 and IP69K, making it resistant to dust, water, vibration, and shocks according to IEC and EN standards. It is ideal for industrial, manufacturing, railway, material handling, packaging, food and beverage sectors where robust and consistent metal object detection is required.
Featuring a 4-pin M12 male connector, the device allows convenient electrical interfacing. Its operating temperature range from -25°C to 70°C allows use in diverse climates and harsh environments. Compliant with CE directives and tested to UL and CSA regulations, the XS630B1PBM12 offers reliable quality and performance.
Thread size M30 x 1.5 with nickel plated brass housing. Flush mounting with a total length of 74 mm and 52 mm threaded section. PNP discrete output with switching current of 200 mA and 500 Hz frequency. Maximum supply voltage 48 V DC and maximum detection range 15 mm for metal objects.
Ingress protection rating IP67 and IP69K for dust and water resistance. Operating temperature range from -25°C to 70°C for industrial environments. 4-pin M12 male connector for electrical connection. Meets CE, UL, CSA, and E2 standards ensuring certified quality.
Suitable for applications including automation, logistics, packaging, and mobile equipment. Explore a wide range of Inductive Proximity Sensors and other automation components at EnvMart for industrial, laboratory, and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 15 mm for metal objects.
This unit operates within a temperature range of -25°C to 70°C.
It features a PNP discrete output type.
The maximum supply voltage for this model is 48V DC.
The thread size of this sensor is M30 x 1.5.
This inductive proximity sensor is designed to detect metal materials.
It has an ingress protection rating of IP67 and IP69K, ensuring resistance to dust and water.
The maximum switching current for this model is 200 mA.
It includes a 4-pin M12 male connector for electrical connection.
The maximum switching frequency is 500 Hz.
The threaded length is 52 mm, and the total length is 74 mm.
Yes, it is compliant with CE directives and has been tested to UL and CSA regulations.
