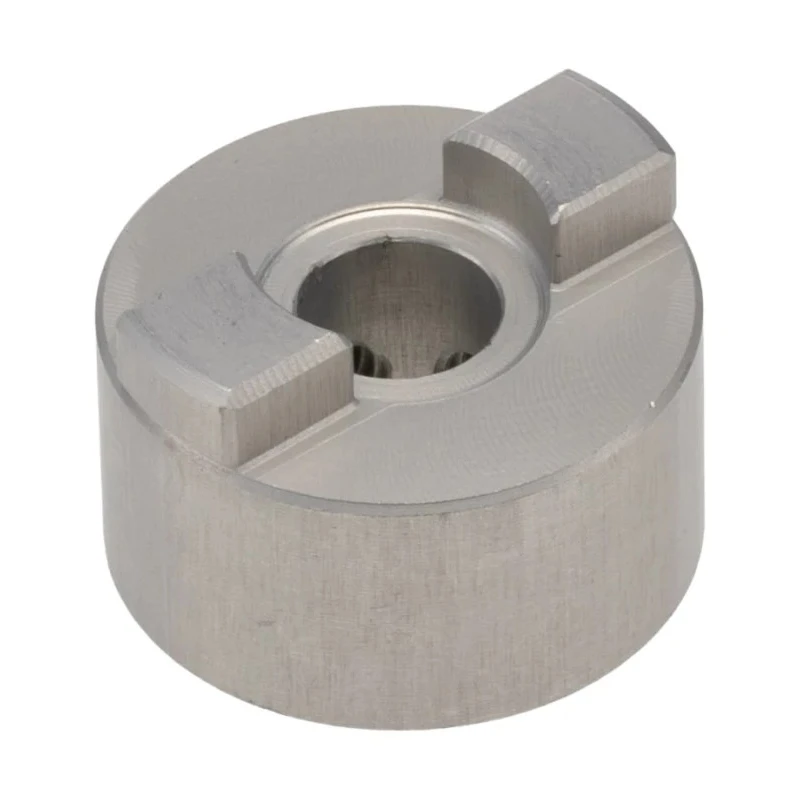

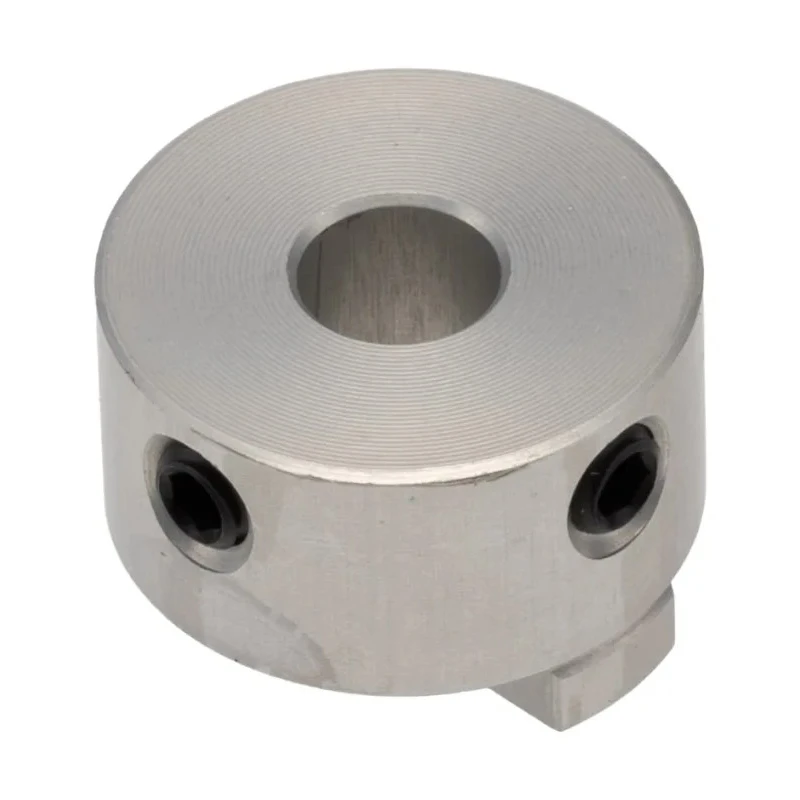

Huco Aluminium Oldham Style Flexible Coupler 19.1 mm Outside Diameter 6.35 mm Bore Finished with Keyway 19 mm 450H19.24

The Huco 450H19.24 Oldham Style Flexible Coupler is a precision mechanical power transmission component constructed from high-quality aluminium. Featuring an outside diameter of 19.1 mm, bore diameter of 6.35 mm finished with a keyway, and a hub length of 19 mm, this coupler ensures reliable and efficient shaft connection.

The set screw style design offers secure attachment to shaft assemblies, enabling speeds up to 3000 rpm. Its backlash-free configuration allows for smooth torque transmission while effectively accommodating angular misalignment up to 0.5°, parallel misalignment up to 0.1 mm, and axial misalignment of 0.05 mm. This flexibility helps to reduce bearing side loads and mechanical wear.

Additionally, the aluminium material not only provides a lightweight solution but also electrical isolation, enhancing safety and reducing shaft current flow. Manufactured in the United Kingdom, this coupler meets rigorous quality standards though it does not carry formal certifications.

The Huco coupler is ideal for use in diverse industrial environments including manufacturing machinery, automation equipment, fluid power systems, and other mechanical drive assemblies requiring precision and reliable flexible coupling solutions.

Aluminium construction ensures strength and lightweight performance. Set screw style bore finished with keyway for secure shaft mounting. Maximum operational speed of 3000 rpm supports high-speed mechanical systems. Backlash-free design permits precise torque transmission.

Misalignment tolerance: angular (0.5°), parallel (0.1 mm), axial (0.05 mm). Provides electrical isolation between shafts. Manufactured in the United Kingdom with high quality craftsmanship. Suitable for mechanical power transmission, industrial machinery and fluid power applications.

Please note this item is not sold as an assembled unit; customers need to purchase two hubs and one torque disc separately to form a complete coupling system.

For engineers seeking a reliable, flexible coupling solution for shaft misalignment and torque transfer, the Huco 450H19.24 offers an expertly designed, robust choice. Explore EnvMart for related mechanical power transmission components and couplers from leading brands.
