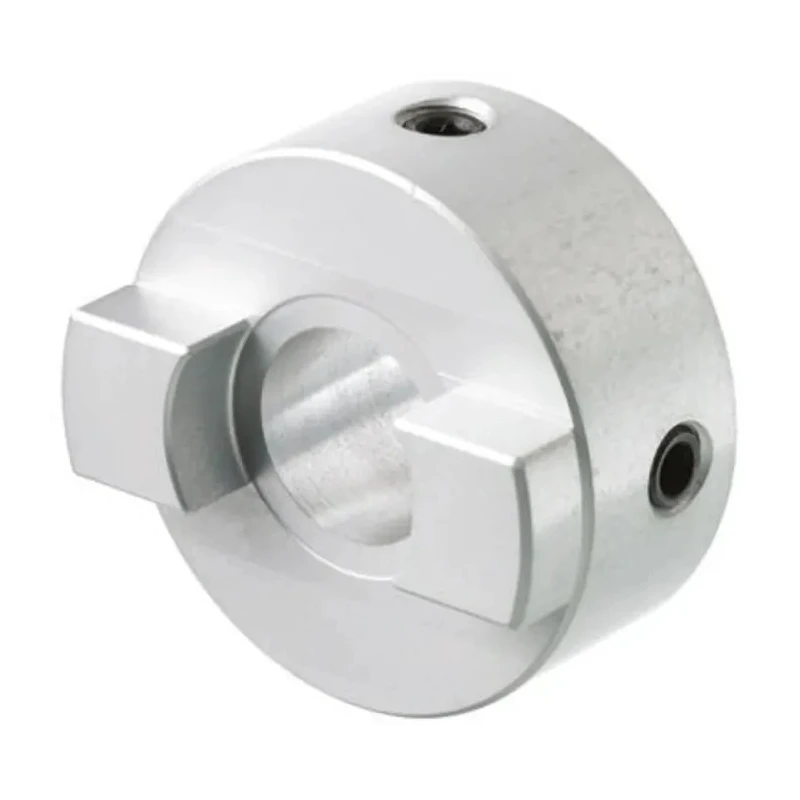

Huco Mechanical Power Transmission Coupler 12.7 mm Outside Diameter, 6.35 mm Bore Finished with Keyway, Aluminium 450H13.24

Free Delivery in India | Lowest Global Shipping Charges

Huco Mechanical Power Transmission Coupler 12.7 mm Outside Diameter, 6.35 mm Bore Finished with Keyway, Aluminium 450H13.24

Name: Huco Mechanical Power Transmission Coupler 12.7 mm Outside Diameter, 6.35 mm Bore Finished with Keyway, Aluminium 450H13.24
Brand: Huco
SKU: 212998
Price: 66.37 USD
Availability: InStock



Category Mechanical Power Transmission Couplers Brand Huco Condition New

Specifications

Country of Origin	United Kingdom
Brand	Huco
Material	Aluminium
Model	450H13.24
Maximum Speed	3000rpm
Outside diameter	12.7mm
Bore Diameter	6.35mm
Bore Type	Finished with Keyway
Misalignment - Angular	0.5°
Misalignment - Parallel	0.1mm
Misalignment - Axial	0.05mm
Hub Length	13mm

Key Features

Constructed from aluminium material for lightweight and corrosion resistance.
Features a 6.35 mm bore diameter finished with keyway for secure shaft fitting.
Outside diameter measures 12.7 mm with a 13 mm hub length.
Set screw style design supports backlash-free operation and large radial shaft misalignment.
Capable of operating at a maximum speed of 3000 rpm, suitable for various industrial applications.
Handles angular misalignment up to 0.5 degrees, parallel up to 0.1 mm, and axial up to 0.05 mm.
Electrically isolating to prevent current transfer between connected components.

Product Description

Huco 450H13.24 Mechanical Power Transmission Coupler is a robust and lightweight aluminium Oldham style coupling engineered for industrial power transmission needs. Its precise bore of 6.35 mm finished with keyway ensures tight shaft engagement, while the 12.7 mm outside diameter and 13 mm hub length provide compact yet effective coupling solutions.

Designed with a set screw style, this coupling excels at handling backlash-free torque transmission and compensates for significant radial shaft misalignment. Operating capability up to 3000 rpm makes it suitable for high-speed machinery in manufacturing, HVAC, and mechanical industries.

The coupling tolerates angular misalignment of 0.5 degrees, parallel misalignment of 0.1 mm, and axial misalignment of 0.05 mm, enabling flexible installation in diverse mechanical systems. Its aluminium construction offers corrosion resistance and electrical isolation, protecting connected shafts from electrical interference.

This product is not sold as an assembled unit; customers must purchase two hubs and one torque disc separately to complete the coupling assembly. Huco couplers are manufactured in the United Kingdom, ensuring compliance with high-quality engineering standards.

Constructed from aluminium material for lightweight and corrosion resistance. Features a 6.35 mm bore diameter finished with keyway for secure shaft fitting. Outside diameter measures 12.7 mm with a 13 mm hub length. Set screw style design supports backlash-free operation and large radial shaft misalignment.

Capable of operating at a maximum speed of 3000 rpm, suitable for various industrial applications. Handles misalignments: angular 0.5°, parallel 0.1 mm, axial 0.05 mm. Electrically isolating to prevent current transfer between connected components.

Ideal for industrial machinery, manufacturing equipment, and fluid power transmission systems requiring flexible couplings. Explore the full range of Huco couplers at EnvMart for tailored mechanical power transmission solutions.
