HARTING D-Sub High Density Series Female Crimp D-Sub Connector Contact Gold Plating 2A 24-26 AWG 17.4mm Length 09560008277

Free Delivery in India | Lowest Global Shipping Charges

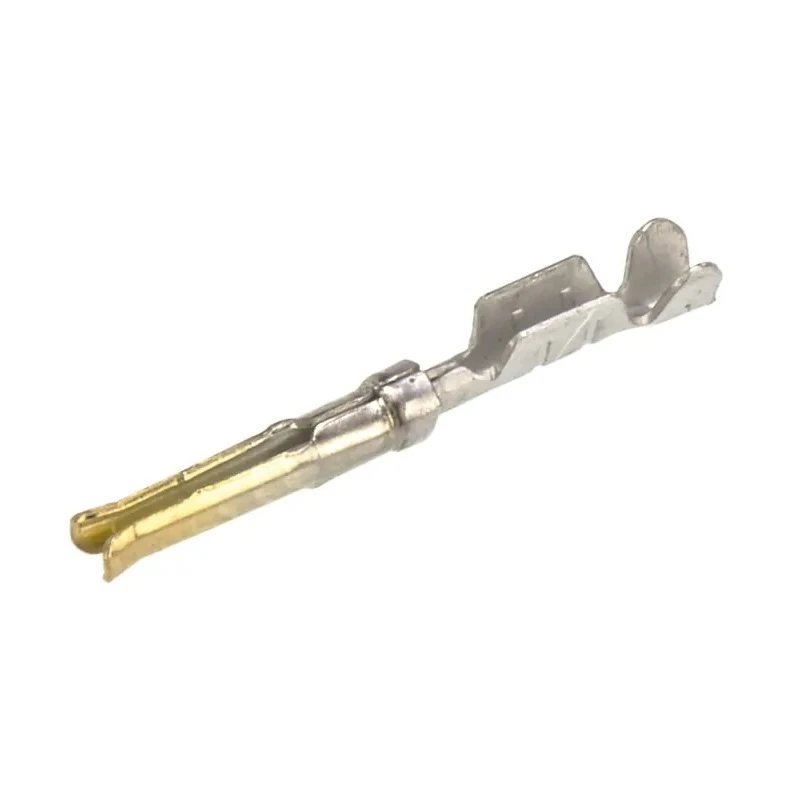

HARTING D-Sub High Density Series Female Crimp D-Sub Connector Contact Gold Plating 2A 24-26 AWG 17.4mm Length 09560008277

Name: HARTING D-Sub High Density Series Female Crimp D-Sub Connector Contact Gold Plating 2A 24-26 AWG 17.4mm Length 09560008277
Brand: HARTING
SKU: 212968
Price: 0.41 USD
Availability: InStock



Category D-Sub Connector Contact Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Current	2A
Length	17.4mm
Gender	Female
Contact Material	Copper Alloy
Series	D-Sub High Density
Termination Type	Crimp
Contact Type	Crimp
Contact Plating	Gold
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	0.22mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	20mΩ

Key Features

Gold plating reduces contact corrosion while improving conductivity.
Copper alloy material ensures excellent electrical performance.
Supports crimp termination for secure conductor retention.
Designed for 24 AWG to 26 AWG conductors for flexible wiring.
Rated for 2A continuous current with low contact resistance of 20 mΩ.
Compact high-density D-Sub design with 17.4 mm contact length.
Ideal for automation panel wiring and electrical control cabinets.
Compatible with instrumentation cabling that requires gold-plated contacts.

Product Description

HARTING 09560008277 D-Sub High Density Series Female Crimp D-Sub Connector Contact is designed for high-density D-Sub applications requiring reliable, low-resistance electrical connections. Operating at a continuous current rating of 2 amperes, this connector contact features gold plating to minimize corrosion and maximize conductivity. The copper alloy contact material provides excellent electrical performance suitable for industrial, automation, and electronic control uses.

This female crimp contact supports conductor sizes ranging from 24 AWG to 26 AWG, with cross-sectional wire areas between 0.14 mm² and 0.22 mm². Its 17.4 mm length fits high-density D-Sub connector housings precisely, allowing compact signal wiring solutions in control cabinets and mechanical systems.

Termination by crimp ensures secure mechanical and electrical connections with consistent signal quality. With a maximum contact resistance of 20 milliohms, voltage drop is minimal, maintaining circuit integrity for low-power signaling applications.

Applications include industrial automation panel wiring, instrumentation cabling requiring gold-plated contacts, and compact D-Sub connector modules in electrical control systems. This contact is built for demanding environments where signal integrity and connector reliability are essential.

Gold plating reduces contact corrosion while improving conductivity. Copper alloy material ensures excellent electrical performance. Supports crimp termination for secure conductor retention. Designed for 24 AWG to 26 AWG conductors for flexible wiring.

Rated for 2A continuous current with low contact resistance of 20 mΩ. Compact high-density D-Sub design with 17.4 mm contact length. Ideal for automation panel wiring and electrical control cabinets. Compatible with instrumentation cabling that requires gold-plated contacts.

Ensures signal integrity in industrial and electronic assemblies. Explore the HARTING range of D-Sub Connector Contacts on EnvMart for industrial, electronic, and automation applications.
