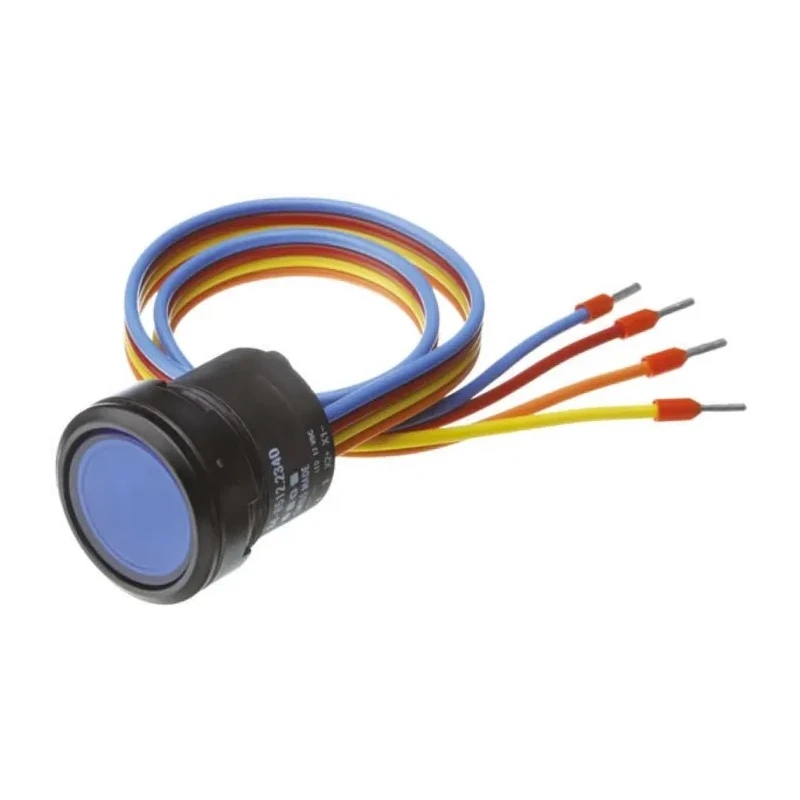

EAO 84 Series Illuminated Push Button Switch Momentary Panel Mount, Blue Actuator, 22.5 mm Cutout, SPST, IP67 K84-603.3813S



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	300mm
Model	K84-603.3813S
IP Rating	IP67
Mount Type	Panel
Series	84
Contact Configuration	SPST
Contact Rating	200mA @ 42Vac/dc (Max. power 2W)
Panel Cutout Size	22.5 mm
Terminal type	Flying Lead
Standards/Approvals	CB, CE, RoHS, UL
Switch Operation	Momentary
Actuator Colour	Blue
Contact DC Voltage	42V dc
Actuator Style	Button
Switch Contact Current	200mA
LED Voltage	24V dc
Depth behind panel	31mm

Key Features

Features a full-face flush illuminated button with high brightness LED.
Designed for panel mount with 22.5 mm cutout size.
Single pole single throw (SPST) contact configuration.
Offers IP67 protection rating ensuring water and dust resistance.
Operates at 42 V dc with a contact rating of 200 mA and max power of 2 W.
Low profile design with 2 mm height and 31 mm depth behind panel.
Includes gold plated normally open (N/O) contacts for reliability.
Certified to CB, CE, RoHS, and UL standards.

Product Description

EAO K84-603.3813S is an illuminated push button switch from the 84 Series, engineered for use in industrial, automation, and electrical panel applications. It features a momentary switch operation with a blue actuator designed for panel mounting with a 22.5 mm cutout size.

The full-face LED illumination provides high visibility in low light environments, with a low profile flush fitting design only 2 mm high. The switch offers robust environmental protection rated at IP67, making it dustproof and waterproof for harsh industrial conditions.

This model supports a contact DC voltage of 42 V with a contact current of 200 mA and a maximum power rating of 2 W. Gold plated normally open contacts ensure long-term reliable switching performance. The switch depth behind the panel is 31 mm, suitable for compact installations.

Wiring is facilitated by flying lead terminals allowing versatile integration. The product is certified with CB, CE, RoHS, and UL standards ensuring quality and compliance for industrial use.

Full-face flush illuminated button with high brightness LED. Panel mount with 22.5 mm cutout size. SPST contact configuration for simple switching. IP67 rated for excellent dust and water resistance. Operation at 42 V dc with 200 mA contact current.

Low profile design with minimal height and compact panel depth. Gold plated N/O contacts for enhanced durability. Flying lead terminal type for easy and flexible wiring. Certified to industrial safety and quality standards.

This illuminated push button switch is ideal for various industrial automation systems, electrical control panels, machinery, and equipment where a reliable, visible, and robust momentary switch is required. It enhances operational safety and user interface clarity in demanding environments.
