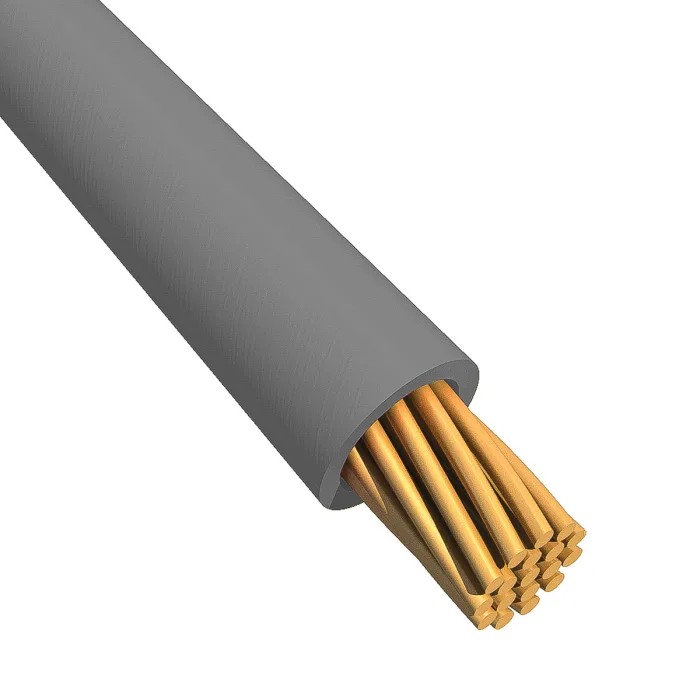

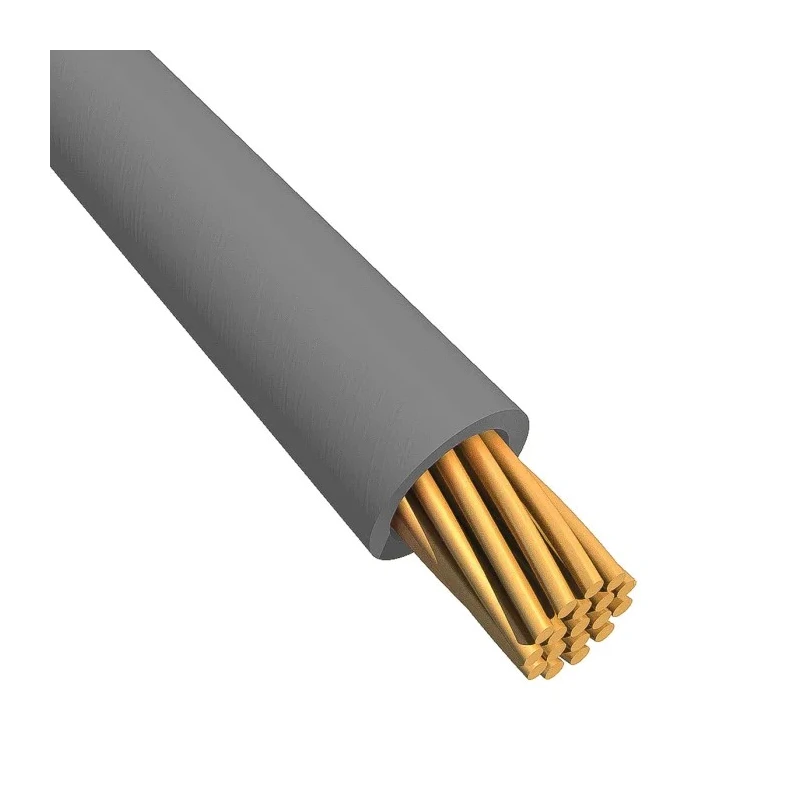

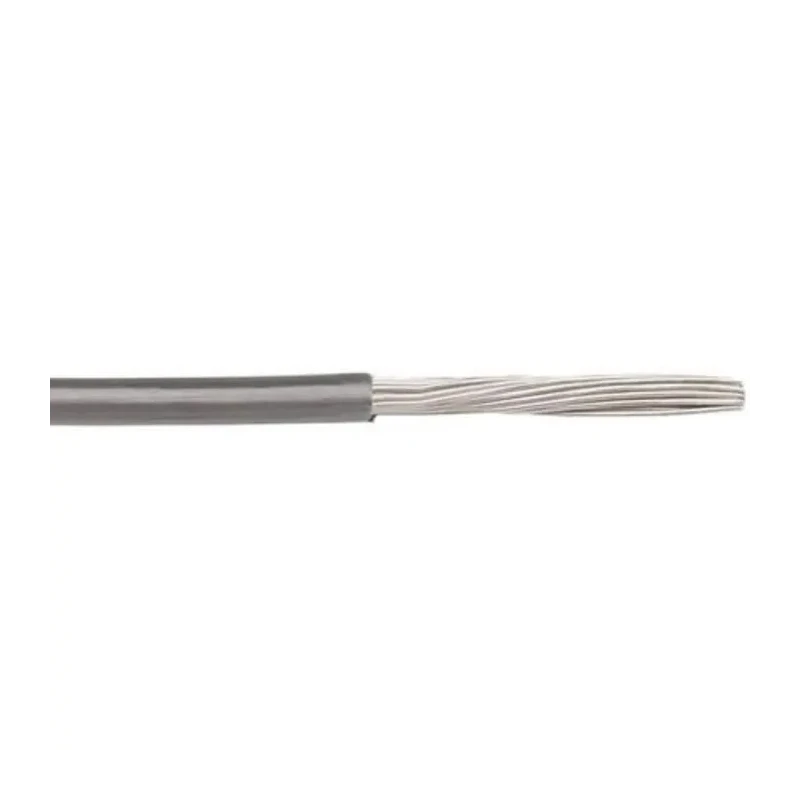

Alpha Wire Ecogen Ecowire Series Grey 5.2 mm² Hook Up Wire, 10 AWG, 105x0.25 mm Core Strands, 30 m, Modified 6719 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 5.2mm² |
| Model | 6719 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire |
| Outside diameter | 3.66mm |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Copper |
| Sub Type | EcoWire |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenilether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flammability Test: VW-1 |
| American Wire Gauge | 10AWG |
| Number of Strands | 105 |
| Core Strands | 105 x 0.25mm |
| Size of Strands | 0.25mm |
| Fire Behaviour Flammability Test | VW-1 |
Key Features
- The EcoWire is fully recyclable and manufactured using modified polyphenylene ether (mPPE) thermoplastic.
- This 30-meter length wire has a 5.2 mm² cross sectional area and 10 AWG gauge.
- Conductors consist of 105 strands each 0.25 mm diameter copper wires.
- The cable has an outside diameter of 3.66 mm and operates up to 105°C.
- The grey jacket offers flame retardancy compliant with UL VW-1 standards.
- EcoWire offers up to 45% smaller diameter and 40% lighter insulation compared to PVC.
- It features excellent dielectric strength and low specific gravity.
- Suitable for use in control panels, automotive wiring, meters, ovens, and electronic equipment.
Product Description
Alpha Wire 6719 SL005 Ecogen Ecowire Series Grey 5.2 mm² Hook Up Wire combines high electrical performance with eco-friendly design. Featuring a modified polyphenylene ether (mPPE) jacket, this wire is fully recyclable, minimizing environmental impact while meeting industrial wiring standards.
The Hook Up Wire consists of 105 copper strands each measuring 0.25 mm in diameter, with a total cross-sectional area of 5.2 mm² (10 AWG standard). It has an outside diameter of 3.66 mm and is available in a 30-meter length, making it suitable for numerous electrical applications requiring precision wiring.
Designed for up to 600 V operation with a maximum operating temperature of 105°C and a minimum of -40°C, this wire withstands demanding environments with excellent dielectric strength and flame retardancy rated at UL VW-1. The EcoWire's modified polyphenilether jacket provides durability, reduced wall thickness, and light weight - up to 45% smaller diameter and 40% lighter than traditional PVC insulation.
This product is CE, CSA, UL, RoHS, and REACH compliant, confirming adherence to safety and environmental standards. It excels in applications such as control panels, automotive wiring, measuring instruments, ovens, internal wiring of computers, electronic equipment, and other business machinery.
EcoWire enhances wiring management when used in conjunction with Alpha Wire’s FIT heat-shrink tubing and wire management systems, ideal for solving common electrical wiring challenges.
Fully recyclable construction reduces environmental footprint. Modified polyphenilether insulation allows thinner and lighter cable design. Excellent dielectric strength suitable for high voltage applications. Flame retardant to UL VW-1 standard for enhanced safety.
Wide operating temperature range from -40°C to 105°C. Compliant with multiple international standards including CE, CSA, and UL. Available in 30 m length for flexible installation. Stranded copper conductors ensure excellent electrical performance.
Explore Alpha Wire Ecogen Ecowire Series and other professional wiring solutions in the Electronics & Electricals category at EnvMart for reliable and sustainable electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this hook up wire is 105°C.
The wire has a cross-sectional area of 5.2 mm², which corresponds to a 10 AWG gauge.
This hook up wire is rated for operation up to 600V.
The conductor consists of 105 strands, each measuring 0.25 mm in diameter.
The outside diameter of this wire is 3.66 mm.
The jacket of this wire is made from modified polyphenylene ether (mPPE).
Yes, this wire is compliant with CE, CSA, and UL safety standards.
This wire is suitable for applications such as control panels, automotive wiring, meters, ovens, and electronic equipment.
The minimum operating temperature for this wire is -40°C.
This hook up wire is available in a length of 30 meters.
The EcoWire offers up to 45% smaller diameter and 40% lighter insulation compared to traditional PVC.
The conductors are made from copper, ensuring excellent electrical performance.
