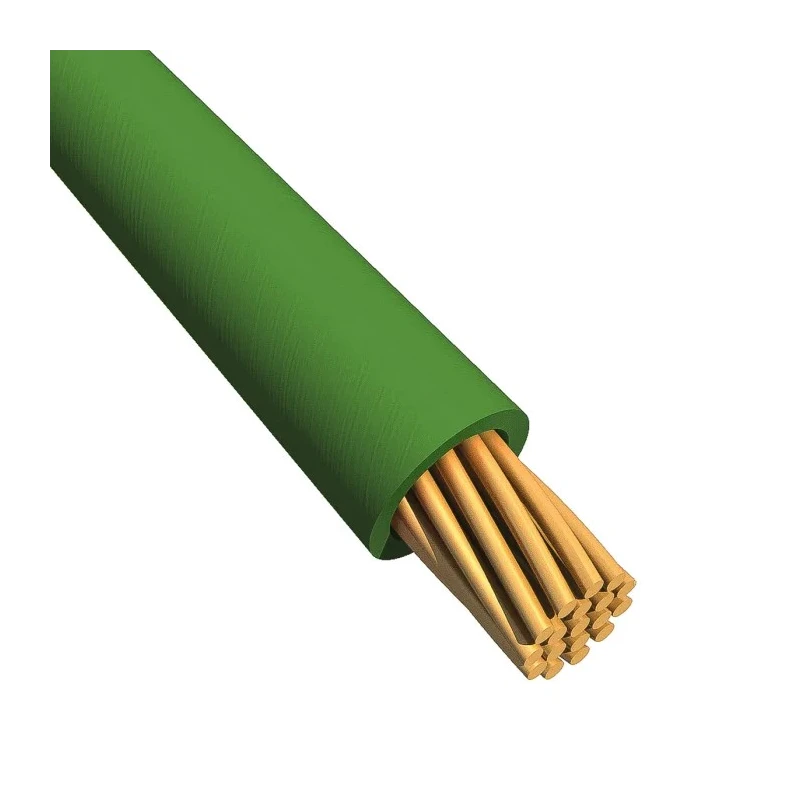

Alpha Wire Ecogen Ecowire Series Green 1.3 mm² Hook Up Wire, 16 AWG, 26x0.25 mm Core Strands, 30 m Length, 600 V 6716 GR005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 1.3mm² |
| Model | 6716 GR005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire |
| Outside diameter | 2.06mm |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Copper |
| Sub Type | EcoWire |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenilether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Green |
| Fire Behaviour | Flammability Test: VW-1 |
| American Wire Gauge | 16AWG |
| Number of Strands | 26 |
| Core Strands | 26 x 0.25mm |
| Size of Strands | 0.25mm |
| Fire Behaviour Flammability Test | VW-1 |
Key Features
- This hook up wire is fully recyclable with a reduced diameter compared to PVC wires.
- The jacket material is a modified polyphenilether providing flame retardant properties and high dielectric strength.
- The wire supports a maximum operating temperature of 105°C and a minimum of -40°C.
- Conductor material is copper with a flexible stranded configuration of 26 strands each 0.25 mm in size.
- Designed for use in control panels, automotive, electronic equipment, and appliances.
- Compliance with UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS, REACH, and CE standards ensures safety and environmental responsibility.
- EcoWire offers up to 45% smaller diameter and up to 40% lighter weight than equivalent PVC insulated wires.
- Suitable for wiring solutions requiring flame retardance and excellent dielectric strength.
Product Description
Alpha Wire 6716 GR005 Ecogen Ecowire Series Green 1.3 mm² Hook Up Wire is a high-performance, environmentally responsible wire designed for industrial and commercial electrical applications. This 16 AWG wire consists of 26 strands of 0.25 mm diameter copper cores, providing excellent conductivity and flexibility. Its modified polyphenilether (mPPE) jacket is fully recyclable, flame retardant (UL VW-1 rated), and offers superior dielectric properties compared to traditional PVC insulation.
The 30-meter length and rated voltage of 600 V make this wire ideal for internal wiring of control panels, automotive systems, electronic equipment, meters, ovens, and business machines. The wire operates safely at temperatures ranging from -40°C to 105°C, ensuring reliability under varied environmental conditions.
EcoWire technology delivers up to 45% smaller diameter and up to 40% lighter weight compared to standard PVC-insulated wires, facilitating ease of installation and material savings. The wire meets rigorous safety and environmental standards, including UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS compliance, REACH, and CE certification.
Its recyclable nature supports sustainable practices, reducing environmental impact without compromising electrical performance. Alpha Wire provides supplementary solutions such as FIT heat-shrink tubing and wire management systems to complement this hook up wire series, enhancing installation efficiency and safety.
This Hook Up Wire is fully recyclable with reduced diameter compared to PVC wires. The modified polyphenilether jacket ensures flame retardant and excellent dielectric properties. Supports maximum operating temperature of 105°C and minimum -40°C.
Composed of stranded copper conductors offering flexibility and conductivity. Rated for 600 V electrical applications in industrial and commercial settings. Meets UL, CSA, RoHS, REACH, and CE standards for safety and environmental compliance.
Ideal for use in control panels, automotive wiring, electronic devices, and appliances. EcoWire technology delivers lighter weight and smaller diameter for easier installation. Explore more Alpha Wire products and related cable solutions at EnvMart for your industrial and electrical wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
This wire is rated for a voltage of 600 V.
The wire consists of 26 strands, each with a diameter of 0.25 mm.
The cross-sectional area of this wire is 1.3 mm².
The conductor material is copper, providing excellent conductivity and flexibility.
The jacket is made of modified polyphenilether, which provides flame retardant properties.
This wire complies with UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS, REACH, and CE standards.
The length of this wire is 30 meters.
The outside diameter of this wire is 2.06 mm.
The minimum operating temperature for this model is -40°C.
This wire is designed for use in control panels, automotive systems, electronic equipment, and appliances.
This wire has a flammability test rating of VW-1.
