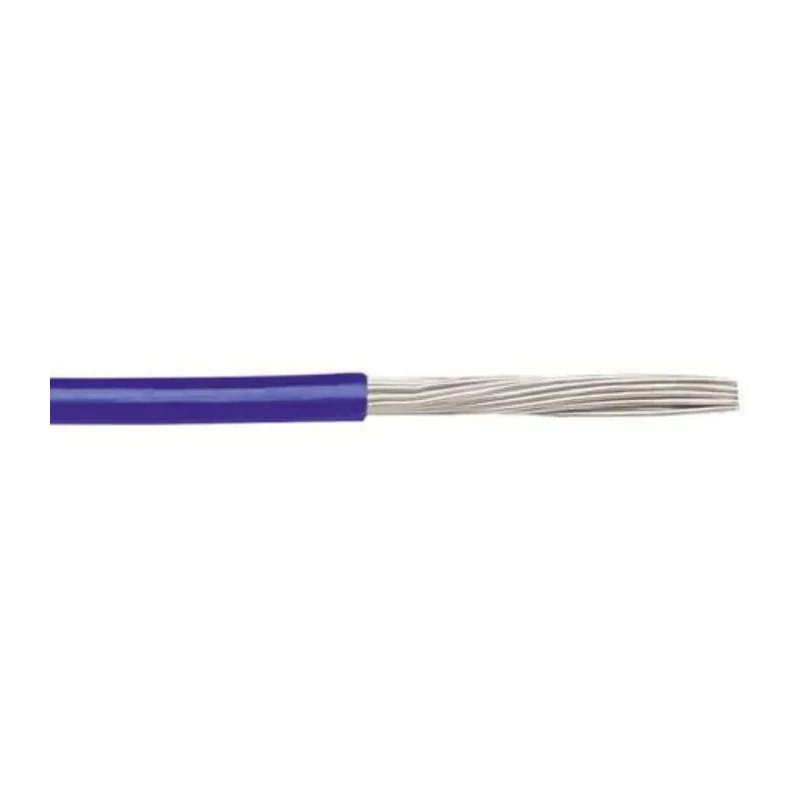

Alpha Wire Ecogen Ecowire Series Blue 0.08 mm² Hook Up Wire, 28 AWG, 7/0.12 mm Strands, 0.12 mm Core Strands, 30 6710 BL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.08mm² |
| Model | 6710 BL005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire |
| Outside diameter | 0.86mm |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Copper |
| Sub Type | EcoWire |
| Cable Type | Hookup |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenilether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Blue |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 28AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.12mm |
| Size of Strands | 0.12mm |
Key Features
- This hook up wire offers excellent electrical properties with reduced diameter and weight compared to PVC.
- Manufactured from modified polyphenylene ether (mPPE) for easy recyclability and minimal environmental impact.
- Features a blue halogen-free jacket with high flame retardancy to UL VW-1 standard.
- Rated for operation between -40°C and 105°C with copper stranded conductors for flexibility.
- Suitable for electrical, automotive, control panels, and electronic wiring applications.
- Complies with UL AWM 11028 VW-1, CSA AWM I A/B FT1, CE, RoHS, and REACH standards.
- The 30 m cable length is ideal for versatile wiring projects requiring high performance and durability.
Product Description
Alpha Wire 6710 BL005 Ecogen Ecowire Series Blue Hook Up Wire is a 0.08 mm² cross-sectional area wire featuring 28 AWG size with 7 strands of 0.12 mm diameter copper conductors and 0.12 mm core strands, measuring 30 meters in length. This hook up wire is designed with a modified polyphenylene ether (mPPE) jacket, ensuring superior dielectric strength, flame retardance, and environmental sustainability.
The EcoWire series combines enhanced electrical performance with a significantly reduced cable diameter - up to 45% smaller than PVC - and lower weight by around 40%, facilitating easier installation and efficient space utilization. Its halogen-free jacket exhibits UL VW-1 flame retardant behavior, meeting rigorous safety standards necessary for industrial and commercial electrical wiring.
With a voltage rating of 600V and operational temperature range from -40°C to 105°C, this wire is suitable for a wide range of applications including control panels, automotive electrical systems, meters, ovens, computer internal wiring, and electronic equipment. The stranded copper conductors provide excellent flexibility and conductivity.
Alpha Wire 6710 BL005 meets international standards such as UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2, IEC 60332-2 Flame Behavior, REACH, and CE compliances, ensuring quality, safety, and environmental responsibility.
This hook up wire is fully recyclable, reducing environmental impact. The modified polyphenylene ether jacket offers excellent dielectric strength with low specific gravity. The cable's compact design allows up to 45% smaller diameter without compromising electrical integrity.
Rated for high flame retardance per UL VW-1 and halogen-free fire behavior standards. Stranded copper conductors enhance mechanical flexibility and conductivity. Certified to meet multiple international safety and environmental standards.
Ideal for industrial automation, electronics manufacturing, and commercial wiring projects requiring reliable performance. The product is supplied new and made in India. It is part of the Alpha Wire Ecogen Ecowire series, recognized for innovative, eco-friendly electrical wiring solutions.
Discover more products in the Hook Up Wire category at EnvMart for all your wiring and electrical connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cross-sectional area of this hook up wire is 0.08 mm².
It has a maximum operating temperature of 105°C.
This wire is rated for a voltage of 600V.
The cable length is 30 meters.
The jacket is made from modified polyphenylene ether (mPPE).
The American Wire Gauge size of this wire is 28 AWG.
This wire has 7 strands of 0.12 mm diameter copper conductors.
The outside diameter of this wire is 0.86 mm.
Yes, this wire features a halogen-free jacket.
It complies with UL AWM 11028 VW-1, CSA AWM I A/B FT1, CE, RoHS, and REACH standards.
This wire is suitable for electrical, automotive, control panels, and electronic wiring applications.
This hook up wire is manufactured in India.
