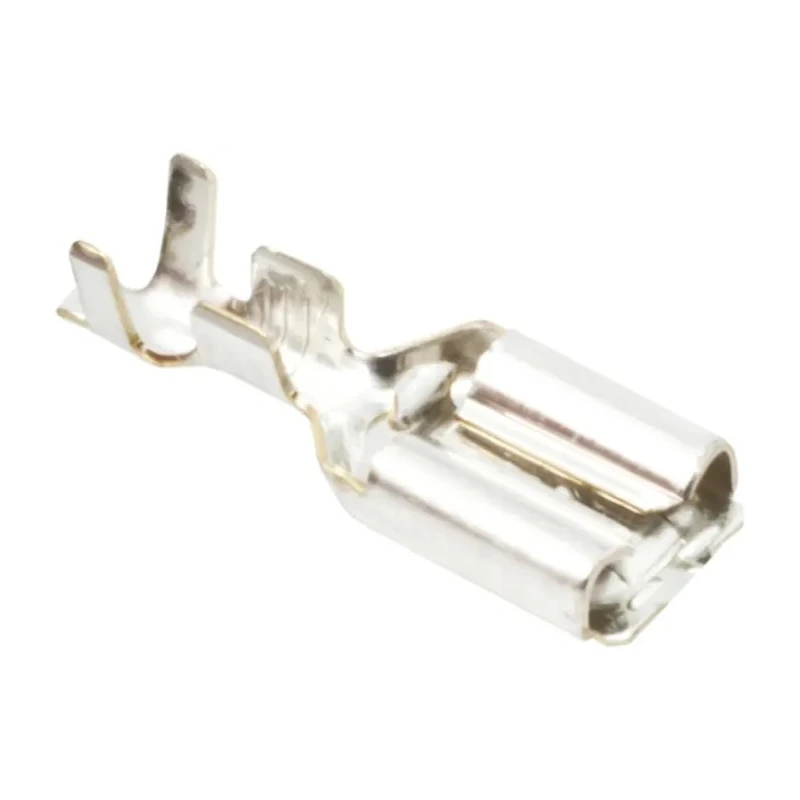

TE Connectivity Positive Lock .250 EX II Black Uninsulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 175022-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Model | 175022-1 |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 21.2mm |
| Contact Material | Brass |
| Series | Positive Lock .250 EX II |
| Termination Type | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.8mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 14AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Designed for reliable crimp termination with a positive lock mechanism.
- Constructed with brass contact material plated with tin for corrosion resistance.
- Supports wire sizes from 18 AWG to 14 AWG and 0.8 mm² to 2 mm².
- Features a straight orientation and uninsulated black housing.
- Overall length of the connector is 21.2 mm, suitable for efficient connectivity.
- Compatible with the Positive Lock .250 EX II series for consistent performance.
Product Description
TE Connectivity 175022-1 Positive Lock .250 EX II Black Uninsulated Female Spade Connector is engineered to provide secure crimp connection solutions in industrial and electronic applications. This connector features a durable brass contact with tin plating to ensure corrosion resistance and reliable electrical performance. Its uninsulated design and straight orientation allow it to fit seamlessly in a variety of wire assemblies.
This female Spade Connector is designed to accommodate wires ranging from 18 AWG to 14 AWG (0.8 mm² to 2 mm²), making it versatile for different wire gauge requirements. With an overall length of 21.2 mm and tab dimensions of 6.35 mm width by 0.81 mm thickness, it aligns with the Positive Lock .250 EX II series standards, ensuring compatibility and consistency across systems.
Typical applications include electronic component assemblies, power and signal wiring harnesses, automotive wiring, and industrial control circuits where secure and efficient wire termination is critical. Its black uninsulated finish suits environments requiring visible wire routing without insulation bulk.
The connector is suitable for industrial, manufacturing, electrical, and electronic sectors, supporting streamlined connectivity that meets operational demands. The Positive Lock mechanism adds an extra measure of security to prevent accidental disconnection during vibration or handling.
Reliable crimp termination with positive lock functionality. Brass contacts plated with tin for enhanced durability. Supports wire sizes 18 AWG to 14 AWG, 0.8 mm² to 2 mm². Straight orientation facilitates easy installation.
Uninsulated black finish optimizes space and visibility. Positive Lock .250 EX II series compatibility ensures system uniformity. Explore a wide range of connectors and related electronic components in the Electronics & Electricals category at EnvMart for professional and industrial procurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall length of this connector is 21.2 mm.
It supports wire sizes from 18 AWG to 14 AWG and 0.8 mm² to 2 mm².
The tab dimensions are 6.35 mm in width and 0.81 mm in thickness.
The contact material is brass, plated with tin for corrosion resistance.
This connector is uninsulated, featuring a black finish.
It uses a crimp termination type for secure connections.
The orientation is straight, facilitating easy installation.
It is compatible with the Positive Lock .250 EX II series.
Typical applications include electronic component assemblies, power and signal wiring harnesses, and automotive wiring.
This connector is a female spade connector.
The country of origin for this connector is India.
The positive lock mechanism adds security to prevent accidental disconnection during vibration or handling.
