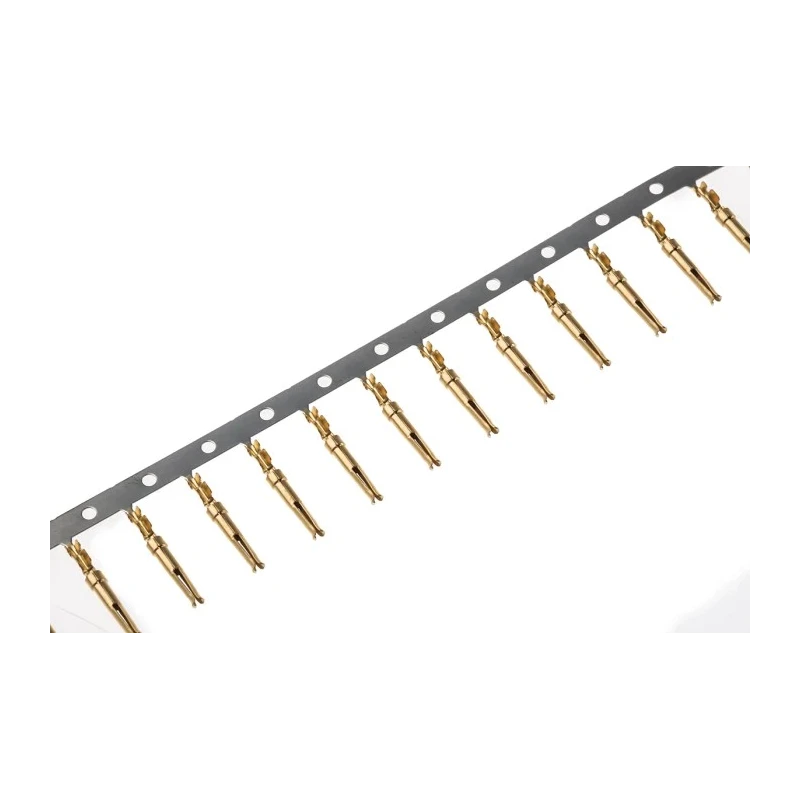

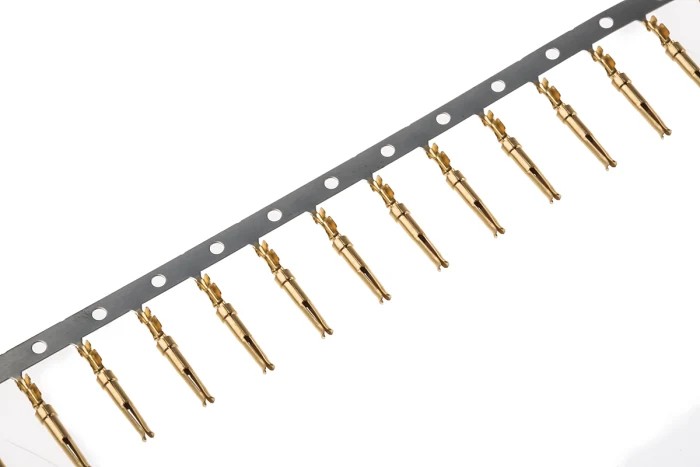

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 66505-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 66505-3

Name: TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 66505-3
Brand: TE Connectivity
SKU: 210361
Price: 0.3 USD
Availability: InStock



Category D-Sub Connector Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Current	2A
Length	14.35mm
Model	66505-3
Gender	Female
Contact Material	Phosphor Bronze
Series	AMPLIMITE HDP-20
Termination Type	Crimp
Contact Type	Signal
Contact Plating	Gold over Nickel
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.6mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	20AWG
Contact Size	20
Maximum Contact Resistance	15mΩ
• Pin diameter	0.04 (1.02)

Key Features

Designed for AMPLIMITE HDP-20 series connectors with contact size 20.
Features gold over nickel plating for enhanced corrosion resistance and conductivity.
Suitable for 20 AWG wire sizes with crimp termination.
Rated for 2A current with a maximum contact resistance of 15mΩ.
Compatible with specialized crimping and insertion/extraction tools.
Manufactured in China ensuring quality and consistent performance.
Provides signal contact type optimized for electronic and industrial applications.

Product Description

TE Connectivity 66505-3 Female Crimp D-Sub Connector Contact from the AMPLIMITE HDP-20 Series is engineered for high-performance electronic connections. This size 20 contact is constructed from phosphor bronze and plated with gold over nickel, delivering excellent conductivity and durability for signal transmission in demanding environments.

Its crimp termination enables secure wire attachment and is compatible with wire sizes ranging from 28 AWG to 20 AWG (0.08mm² to 0.6mm²), accommodating up to 2A current. The contact length of 14.35mm and gold plated pin diameter of 0.04 inch (1.02mm) ensure precise mating for AMPLIMITE D-Sub connectors.

These contacts are ideally suited for industrial, manufacturing, laboratory, and commercial electrical applications where signal integrity and reliability are critical. The product is manufactured in China under stringent quality controls.

The TE Connectivity HDP-20 series offers a comprehensive connector system with pin and socket options. The 66505-3 contact is best used alongside compatible crimp tools (part number 446-816) and insertion/extraction tools (part number 446-822) to ensure proper installation and maintenance.

Designed for the AMPLIMITE HDP-20 series connector system with size 20 contacts. Gold over nickel plating offers enhanced corrosion resistance and signal quality. Phosphor bronze contact material provides durability and conductivity.

Crimp termination suitable for wire sizes 28 AWG to 20 AWG. Rated current of 2 amps supports reliable signal transmission. Length measures 14.35mm for precise connector fit. Pin diameter of 0.04 inch (1.02mm) ensures secure mating.

Compatible with TE Connectivity crimp and insertion/extraction tools for installation.

This product is ideal for use in electrical connectors within industrial, electronics manufacturing, laboratory testing, and other commercial applications requiring dependable D-Sub connections. Explore a range of D-Sub connectors and contacts at EnvMart to find optimal solutions for your projects.
