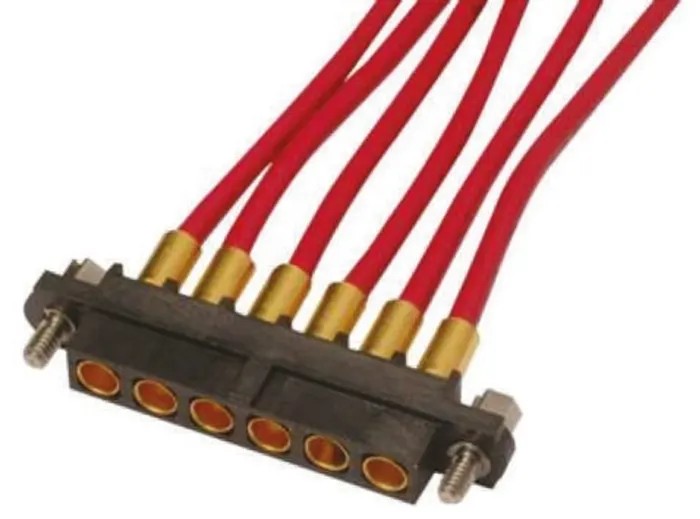

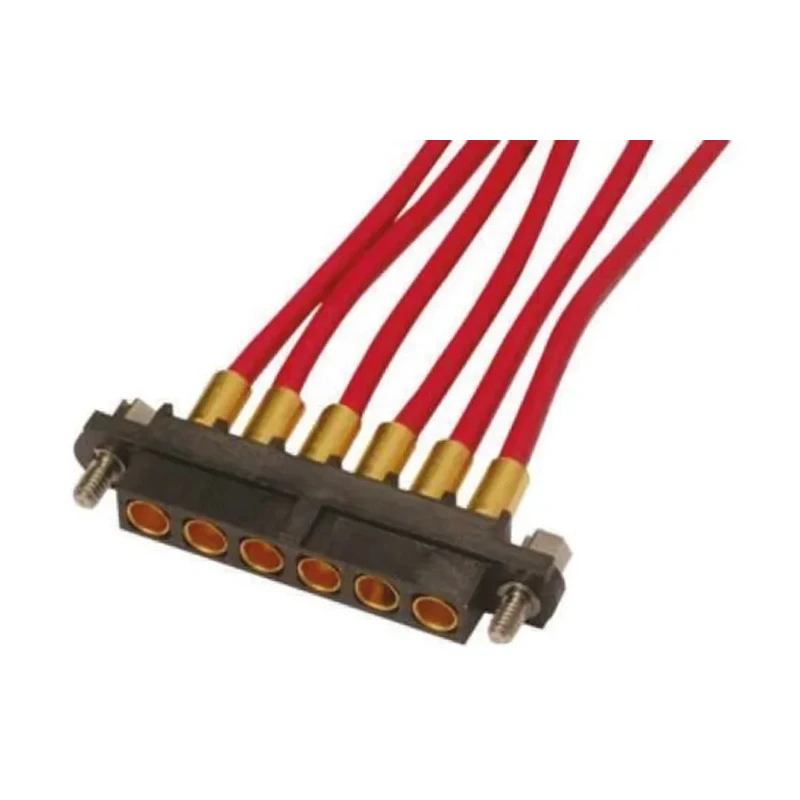

HARWIN Datamate Mix-Tek Series Straight Panel PCB Socket 6-Contact 1 Row 4mm Pitch Crimp M80-4000000F1-06-327-00-000
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M80-4000000F1-06-327-00-000 |
| Mount Type | Panel |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Brass |
| Series | Datamate Mix-Tek |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Datamate |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with high-quality polyphenylene sulphide housing for durability.
- Designed for panel mounting with a straight orientation for easy installation.
- Features brass contacts plated with gold for superior conductivity and corrosion resistance.
- Supports up to 12A current and 120V operating voltage.
- Suitable for extreme temperatures ranging from -55°C to 125°C.
- Connector system is board-to-board with female contact gender.
- Ideal for aerospace, military, industrial equipment, and telecommunications.
- Includes polarization features and hexagonal slotted jackscrews for secure connections.
Product Description
HARWIN M80-4000000F1-06-327-00-000 Datamate Mix-Tek Series Straight Panel PCB Socket is engineered for high reliability in military, aerospace, and industrial applications. This 6-contact, 1-row connector features a 4 mm pitch crimp termination optimized for panel mounting with a straight orientation.
The housing is made from durable polyphenylene sulphide, providing resistance against harsh environmental conditions. Brass contacts plated with gold ensure excellent electrical conductivity and corrosion protection, supporting currents up to 12A and voltages up to 120V. Operating temperature range is from -55°C to 125°C, allowing usage in extreme environments.
This connector uses a female contact gender in a board-to-board connector system, integrating polarization to prevent mis-mating. Hexagonal slotted jackscrews enhance mechanical stability and ensure secure connections even under vibration and shock.
Typical applications include aerospace, military, telecommunications, medical devices, robotics, and industrial equipment where performance and reliability are critical. Constructed with durable polyphenylene sulphide housing for long-lasting use.
Gold-plated brass contacts provide excellent conductivity and corrosion resistance. Supports high current and voltage specifications suited for demanding applications. Designed for easy panel mounting with secure jackscrew locking.
Operates reliably over a wide temperature range from -55°C to 125°C. Polarization features prevent incorrect mating of connectors. Widely used across aerospace, military, and industrial sectors. Discover more electronic component solutions and PCB socket options at EnvMart for your industrial and laboratory needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 12A and an operating voltage of 120V.
It operates reliably over a temperature range from -55°C to 125°C.
The housing is made from polyphenylene sulphide, which provides resistance against harsh environmental conditions.
This unit features 6 contacts in a single row configuration.
It utilizes a crimp termination type, optimized for panel mounting.
The connector has a female contact gender, designed for board-to-board connections.
The pitch for this model is 4mm, suitable for various applications.
Yes, it includes polarization features to prevent incorrect mating of connectors.
It is ideal for aerospace, military, telecommunications, medical devices, robotics, and industrial equipment.
The contacts are made of brass and are plated with gold for superior conductivity and corrosion resistance.
This model is designed for panel mounting with a straight orientation for easy installation.
The country of origin for this connector is the United Kingdom.
