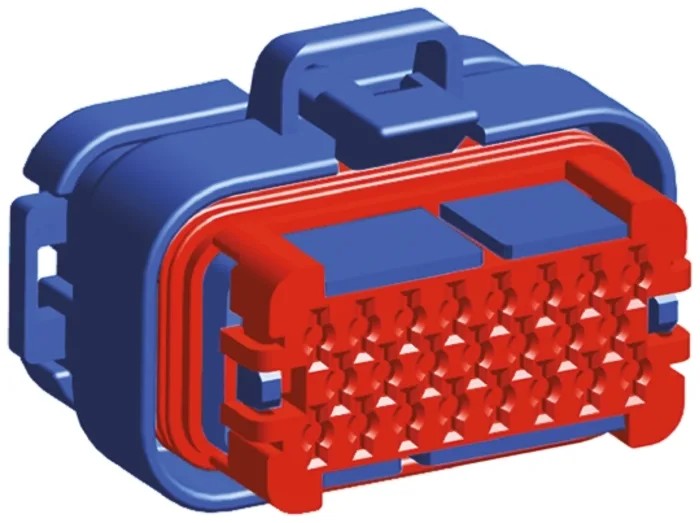

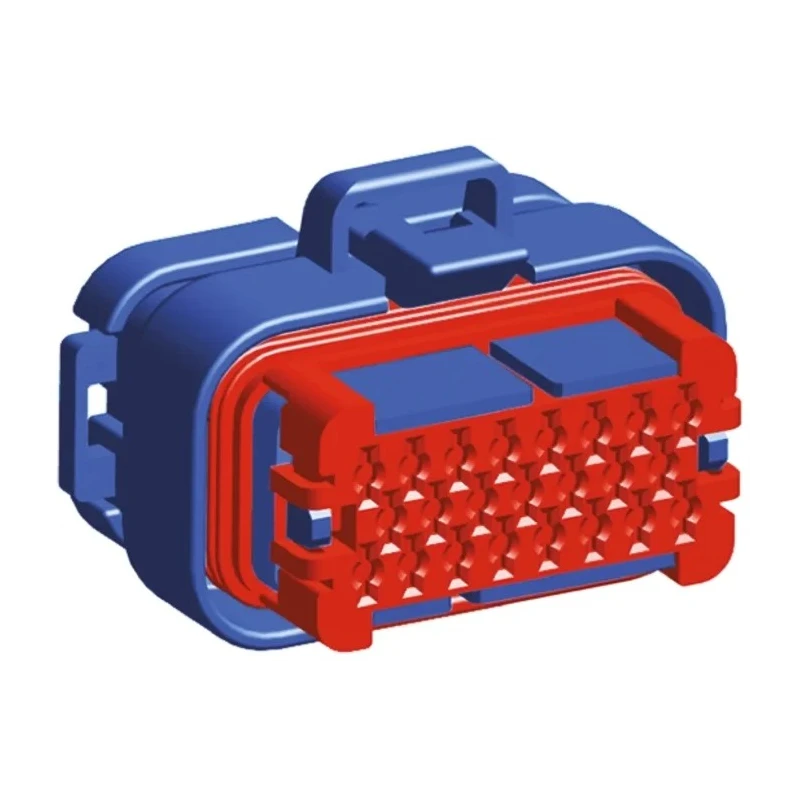

TE Connectivity Ampseal Male Automotive Connector 4 mm Pitch 23 Way 3 Row Straight 770680-5

TE Connectivity 770680-5 Male Automotive Connector is a high-quality, robust connector housing designed for automotive and industrial applications. Featuring 23 contact positions arranged in 3 rows with a 4 mm pitch, this connector supports secure cable mounting and mating with automotive plug connectors.

Manufactured using durable polyamide material, the connector housing ensures excellent mechanical strength and thermal resistance. It features a 2-piece contact hold design with an integrated secondary lock to prevent contact withdrawal under vibration or stress, enhancing the reliability of electrical connections.

The connector is IP67 rated, providing full dust proofing and water ingress protection up to 1 meter immersion, suitable for harsh environments such as off-road vehicles, heavy machinery, and agricultural equipment. Operating within a temperature range from -40°C to +125°C, it maintains performance in extreme conditions.

Its compact form factor with a length of 47.4 mm and width of 34.6 mm enables easy integration in dense assemblies. The straight orientation design optimizes cable routing for neat installations.

Applications include automotive harnesses, heavy-duty industrial equipment, and agricultural machinery where robust environmental sealing and connection reliability are critical. This connector belongs to the Ampseal series, recognized for ruggedness and long-term durability.

Rugged and highly reliable design ensuring durability under harsh conditions. IP67 rated housing for dust tight and water immersion protection. Polyamide housing material for mechanical and thermal stability. Secure 2-piece contact hold design with secondary locking.

Wide operating temperature range from -40°C to +125°C. 23 contacts arranged in 3 rows with a 4 mm pitch. Straight orientation with compact dimensions (47.4 mm length x 34.6 mm width). Explore the wide range of TE Connectivity Automotive Connectors available at EnvMart for reliable industrial and automotive electrical solutions.
