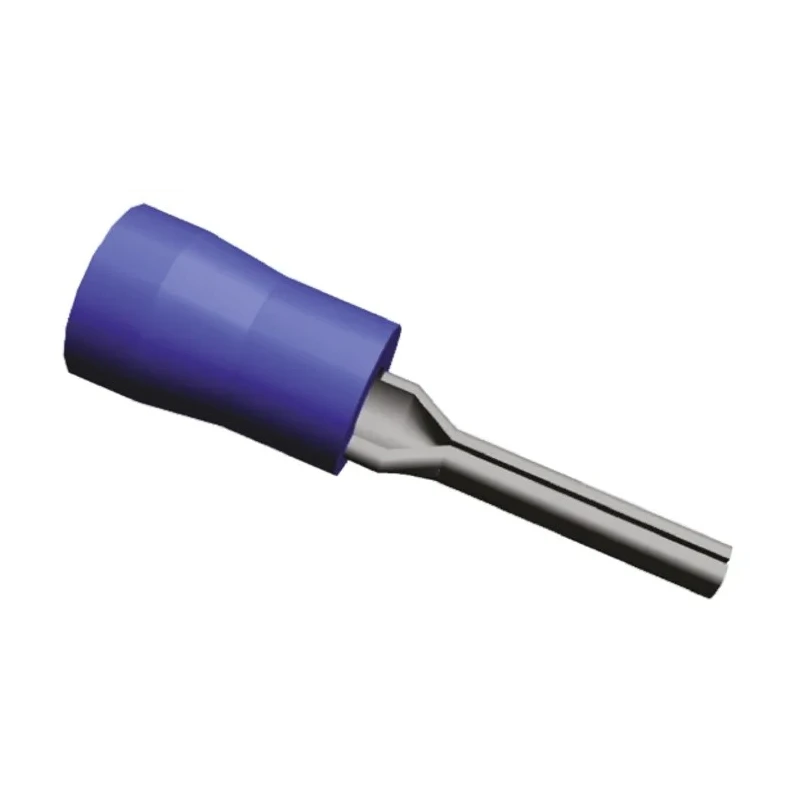

TE Connectivity PLASTI-GRIP Insulated Tin Crimp Pin Connector 16 AWG to 14 AWG Blue 1.8mm Pin Diameter 342166-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 342166-1 |
| Insulation | Insulated |
| Overall Length | 20.57mm |
| Series | PLASTI-GRIP |
| Termination Type | Crimp |
| Insulation Material | Polyvinyl Chloride |
| Pin Diameter | 1.8mm |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
Key Features
- Constructed with high conductivity tin plated copper for excellent electrical performance.
- Features a vinyl insulation sleeve rated 94V-0 for high dielectric strength.
- The serrated inner barrel maximizes electrical contact and tensile strength after crimping.
- Funnelled wire barrel entry allows easy insertion of stripped wires.
- Suitable for 1.0 to 2.5 mm² wire sizes, corresponding to 16 to 14 AWG.
- Blue color coding aids quick identification in wiring installations.
- Pin diameter measures precisely 1.8 mm ensuring compatibility with standard connectors.
- Overall length of the connector is 20.57 mm for compact wiring applications.
Product Description
TE Connectivity 342166-1 PLASTI-GRIP insulated tin crimp pin connector is engineered for reliable wiring terminations in electronics and electrical applications. This connector supports wire sizes from 16 AWG to 14 AWG (1.0 to 2.5 mm²) and features a 1.8 mm pin diameter finished in tin plating to prevent corrosion and ensure conductivity.
The connector incorporates a vinyl insulation sleeve with a high dielectric strength rated at 94V-0, protecting connections against electrical faults. Its internal serrated barrel enhances the mechanical grip and electrical contact after proper crimping, improving connection durability.
The design includes a funnelled entry that enables easier insertion of stripped wires for efficient, consistent crimps. The blue color of the insulation sleeve clearly indicates wire size compatibility, facilitating correct installation in complex assemblies.
Measuring 20.57 mm overall length, this compact crimp pin connector is suitable for use in electronics components, power connectors, and wire terminal applications in industrial, commercial, and laboratory environments.
Constructed with high conductivity tin-plated copper for superior electrical and mechanical performance. Vinyl insulation sleeve rated 94V-0 ensuring safety and durability. Serrated interior barrel maximizes tensile strength and electrical contact.
Funnelled entry simplifies wire insertion enhancing installation efficiency. Blue insulation for easy wire size identification between 16 AWG and 14 AWG. Designed for crimp termination to provide a secure and reliable connection.
Compact overall length of 20.57 mm fits well in constrained spaces. Not recommended for use with double wire configurations.
This TE Connectivity PLASTI-GRIP Crimp Pin Connector is ideal for various electrical wiring projects including industrial control panels, electrical distribution systems, automotive wiring harnesses, and telecommunications equipment. Its reliable insulation and secure termination make it a dependable component for ensuring circuit integrity and safety.
