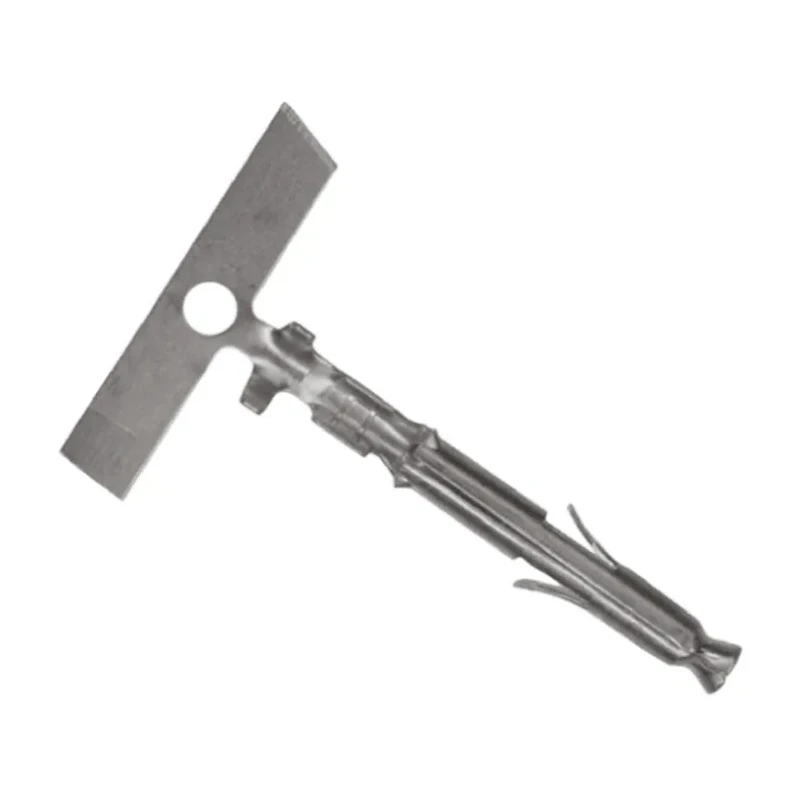

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, Gold Plated Brass Contact, 11.2A, 22-18 1-770988-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, Gold Plated Brass Contact, 11.2A, 22-18 1-770988-0

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, Gold Plated Brass Contact, 11.2A, 22-18 1-770988-0
Brand: TE Connectivity
SKU: 209508
Price: 0.78 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Current	11.2A
Gender	Female
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.9mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	20mΩ

Key Features

Supports wire gauge sizes 22 AWG (min) to 18 AWG (max).
Constructed with brass contact material and gold plating for optimal conductivity.
Rated for a maximum current of 11.2 amperes.
Suitable for crimp termination ensuring secure mechanical and electrical connection.
Operates safely within -55°C to 105°C temperature range.
Designed to mate with Mini-Universal MATE-N-LOK connector housings.
Delivers maximum contact resistance of 20 milliohms for minimal signal loss.
Manufactured in the United States with precision standards.

Product Description

TE Connectivity 1-770988-0 Mini-Universal MATE-N-LOK Series female crimp terminal provides a durable and reliable solution for wire-to-wire electrical connections in diverse electronic components and power applications. This crimp terminal is specifically designed for use with Mini-Universal MATE-N-LOK connector housings, supporting wire sizes from 22 AWG minimum to 18 AWG maximum, covering common wiring requirements in control panels, automotive, and industrial electronics.

The contact is made from robust brass material with gold plating, ensuring excellent conductivity, corrosion resistance, and durability. Rated for a current capacity of 11.2 amperes, it supports medium power applications with a maximum contact resistance of only 20 milliohms, minimizing losses and maintaining signal integrity.

The terminal supports crimp termination type providing secure mechanical retention and reliable electrical connection, working efficiently in operating temperature ranges from -55°C to 105°C, suitable for harsh environments and temperature fluctuations. This product is manufactured in the United States under strict quality controls and complies with relevant standards.

Applications include electronic circuitry, power distribution, connectors in automotive systems, industrial machinery, and communication devices. The product contributes towards improving assembly efficiency and ensuring long-term connection reliability within industrial, laboratory, and commercial applications.

Supports wire gauge sizes 22 AWG (min) to 18 AWG (max). Constructed with brass contact material and gold plating for optimal conductivity. Rated for a maximum current of 11.2 amperes. Suitable for crimp termination ensuring secure mechanical and electrical connection.

Operates safely within -55°C to 105°C temperature range. Designed to mate with Mini-Universal MATE-N-LOK connector housings. Delivers maximum contact resistance of 20 milliohms for minimal signal loss. Manufactured in the United States with precision standards.
