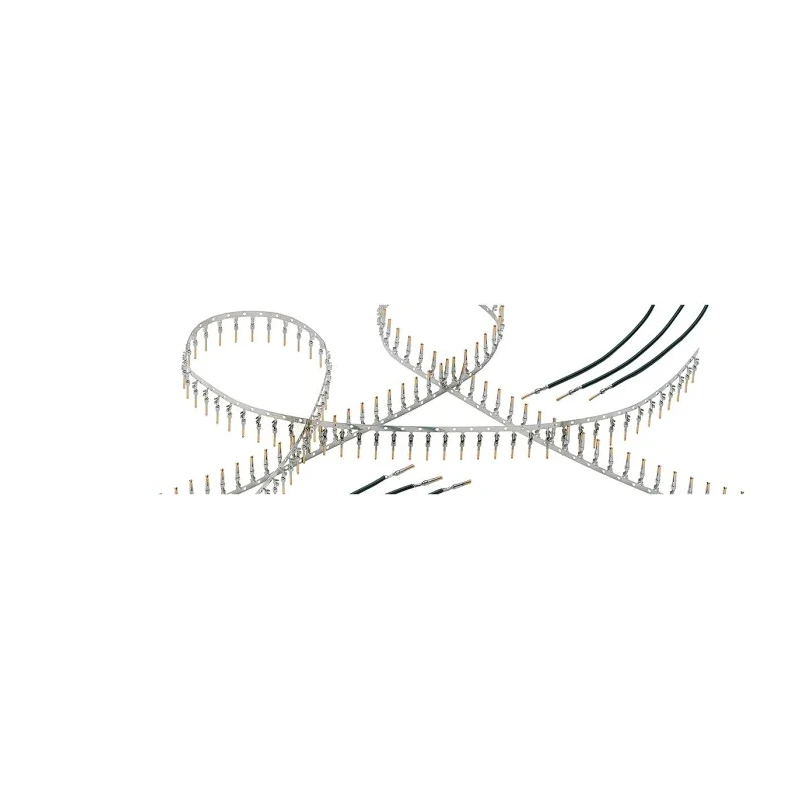

HARTING D-Sub Standard Series Female Crimp D-Sub Connector Contact Palladium over Nickel Pin 20 AWG 09670008268

Free Delivery in India | Lowest Global Shipping Charges

HARTING D-Sub Standard Series Female Crimp D-Sub Connector Contact Palladium over Nickel Pin 20 AWG 09670008268

Name: HARTING D-Sub Standard Series Female Crimp D-Sub Connector Contact Palladium over Nickel Pin 20 AWG 09670008268
Brand: HARTING
SKU: 209067
Price: 0.32 USD
Availability: InStock



Category D-Sub Connector Contact Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Current	6.5A
Length	14.1mm
Gender	Female
Contact Material	Brass
Series	D-Sub Standard
Termination Type	Crimp
Contact Type	Pin
Contact Plating	Palladium over Nickel
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	0.56mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed from brass for durability and electrical conductivity.
Features palladium over nickel plating to ensure corrosion resistance.
Designed for crimp termination type to securely attach to wires.
Supports wire sizes between 0.25 mm² and 0.56 mm² (24 to 20 AWG).
Rated for a maximum current of 6.5A with a maximum contact resistance of 10 milliohms.
Intended for female pin contact in D-Sub connectors.
Manufactured in Germany ensuring high quality standards.
Compatible with Harting D-Sub connectors and suitable for various electronic and power connector applications.

Product Description

HARTING 09670008268 is a female crimp D-Sub connector contact from the D-Sub Standard Series designed for professional electronic and power connector applications. Constructed with brass material, it ensures electrical durability and performance. The palladium over nickel plating provides excellent corrosion resistance, enhancing connector lifespan.

This female contact is designed for crimp termination onto wire sizes ranging from 0.25 mm² up to 0.56 mm², which corresponds to 24 AWG to 20 AWG wire gauge sizes. It is rated at a maximum current of 6.5 amperes and features a low maximum contact resistance of 10 milliohms, supporting reliable signal and power transmission.

The contact length is 14.1 mm, fitting standard Harting D-Sub connector housings. Manufactured in Germany, it meets stringent quality and manufacturing standards. This product complies with IEC 60 807 to ensure safety and performance.

These crimp contacts are engineered for use in industrial, electronic, telecommunications, and power distribution systems. Proper crimping tools are recommended for secure attachment during assembly. Compatible tooling includes insertion and extraction tools (Harting stock number 740-6657) and manual crimp tools (Harting stock number 100-8566).

Constructed from brass for reliable conductivity. Palladium over nickel plating protects against corrosion. Compatible with crimp termination for wire sizes 24 AWG to 20 AWG. Supports maximum current of 6.5A and maximum contact resistance of 10 milliohms.

Fits standard D-Sub connectors with 14.1 mm contact length. Manufactured in Germany ensuring premium quality. Complies with IEC 60 807 standard for safety and performance. Suitable for industrial, telecommunications, and power connector applications.

Recommended crimp and insertion/extraction tooling available separately.

This HARTING D-Sub Connector Contact is a reliable choice for enhancing connection integrity in electronics and power interfaces. For more industrial and electronic connector options, browse EnvMart's extensive connectors catalog.
