HARTING Male Crimp D-Sub Connector Contact Palladium over Nickel Pin 20 AWG 6.5A 14.48mm Length 09670008168

Free Delivery in India | Lowest Global Shipping Charges

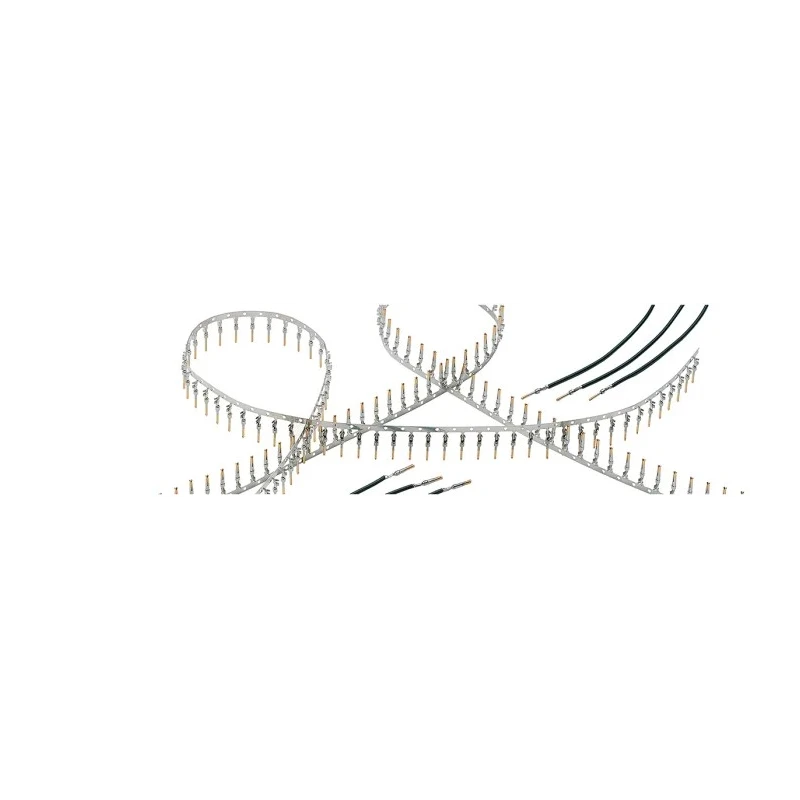

HARTING Male Crimp D-Sub Connector Contact Palladium over Nickel Pin 20 AWG 6.5A 14.48mm Length 09670008168

Name: HARTING Male Crimp D-Sub Connector Contact Palladium over Nickel Pin 20 AWG 6.5A 14.48mm Length 09670008168
Brand: HARTING
SKU: 209063
Price: 0.29 USD
Availability: InStock



Category D-Sub Connector Contact Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Current	6.5A
Length	14.48mm
Gender	Male
Contact Material	Brass
Series	D-Sub Standard
Termination Type	Crimp
Contact Type	Pin
Contact Plating	Palladium over Nickel
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	0.56mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	10mΩ

Key Features

The contact is designed for male gender with a pin type.
Constructed from brass with palladium over nickel plating for enhanced corrosion resistance.
Supports currents up to 6.5A ensuring reliable electrical transmission.
Compatible with wire sizes from 24 AWG to 20 AWG (0.25mm² to 0.56mm²).
The contact length measures 14.48mm for precise fitting in D-Sub connectors.
Termination type is crimp, providing secure attachment to cables.
Engineered to meet IEC 60 807 standard for reliable performance.
Manufactured in Germany ensuring high quality and consistency.

Product Description

HARTING 09670008168 Male Crimp D-Sub Connector Contact is a high-quality electronic component designed for secure and reliable electrical connections in industrial and commercial environments. The contact features brass construction with palladium over nickel plating on the pins, which supports enhanced corrosion resistance and long service life. It is intended for male gender connections with pin contacts suitable for use in the D-Sub Standard Series connectors.

This crimp-type connector contact securely attaches to wires sized between 24 AWG (0.25mm²) and 20 AWG (0.56mm²), supporting current loads of up to 6.5A. The precise 14.48mm length ensures accurate connector assembly in various electronic applications. The contact has a maximum contact resistance of 10 milliohms, guaranteeing efficient conductivity. It complies with IEC 60 807 standards, underscoring its suitability for robust industrial and electronic setups.

Typically used in electronics manufacturing, power connector assemblies, telecommunications, and automated control gear, this component delivers reliable performance in demanding conditions. It is ideal for use in wire-to-wire and wire-to-board configurations where secure crimp connections are needed.

The contact is male with pin type for standard D-Sub connectors. Durable brass material with palladium over nickel plating for corrosion protection. Supports electrical currents up to 6.5A for reliable power transmission.

Compatible with 24 to 20 AWG wire sizes for versatile wiring options. Crimp termination type allows for a strong and stable wire connection.

Manufactured in Germany, this HARTING contact ensures premium quality for professional electronic assembly and repair. It is a critical component in power and signal connector systems within industrial, laboratory, automation, and manufacturing sectors.
