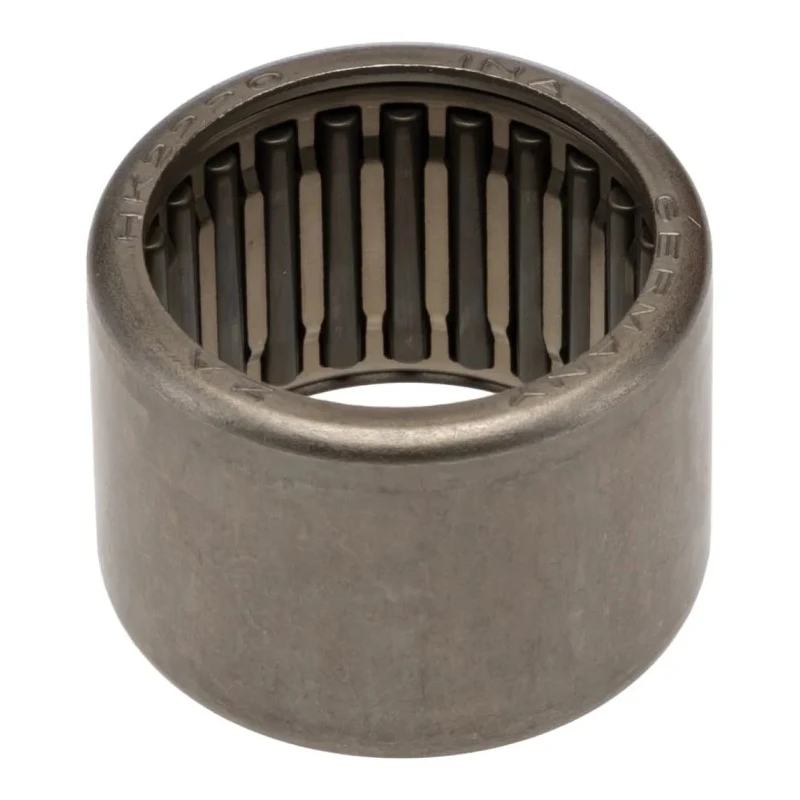

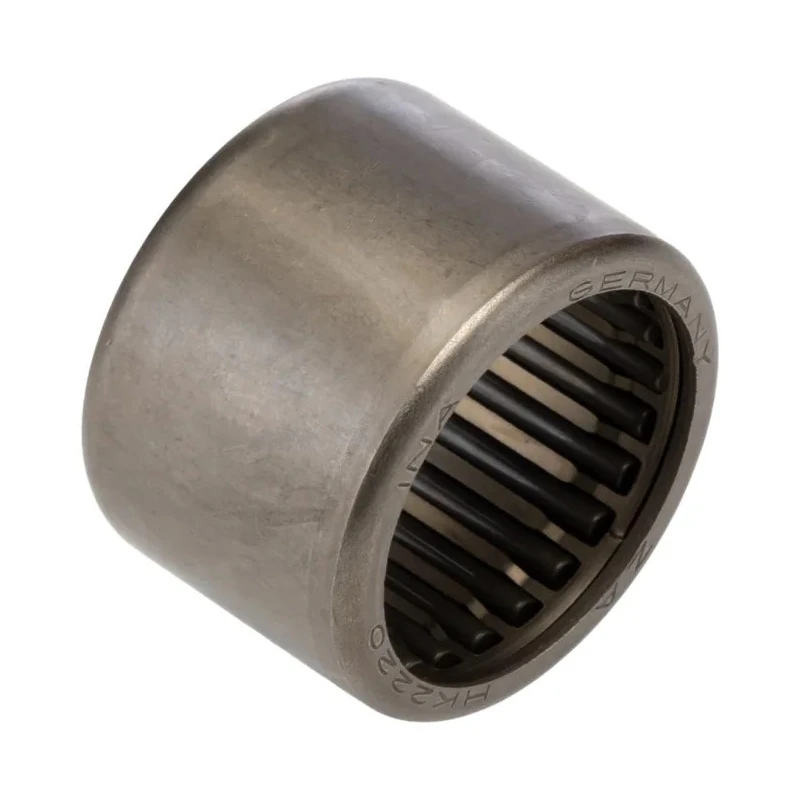

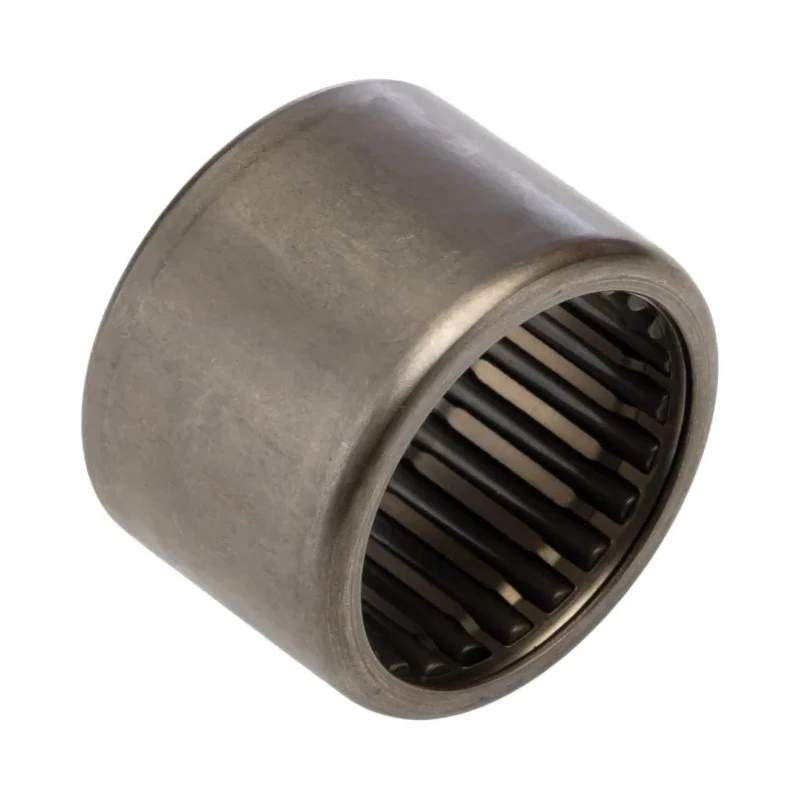

INA Drawn Cup Needle Roller Bearing 22 mm ID 28 mm OD Open End HK2220-B

INA HK2220-B drawn cup needle roller bearing offers a 22 mm internal diameter and 28 mm external diameter with a 20 mm race width. It features an open-end design and is composed of a thin-walled, drawn cup outer ring combined with needle roller and sheet steel cage assemblies. This bearing type is engineered for compact, efficient bearing arrangements requiring high radial load capacity.

Constructed with a parallel bore type, this single row bearing supports a static load rating of 29000 N and a dynamic load rating of 16500 N. It can operate at a limiting speed of up to 11700 rpm when lubricated with oil and up to 7000 rpm with grease. The open-end design allows for reduced maintenance and better heat dissipation.

Drawn cup needle roller bearings like the HK2220-B require hardened and ground bearing raceways on shafts to provide optimal performance and longevity. The sheet steel cage ensures reliable needle roller guidance, contributing to lower operational noise and heat generation.

This bearing is manufactured in Germany and is suitable for use in various industrial applications including machinery, manufacturing equipment, and fluid power systems where compact spaces and high radial loads are prevalent.

Includes single row needle rollers with sheet steel cage. Race width is 20 mm with a parallel bore type. Static load rating of 29000 N and dynamic load rating of 16500 N. Max speed of 11700 rpm (oil) and 7000 rpm (grease).

Open end design reduces heat and noise generation. Requires hardened, ground shaft raceway. Manufactured with precision in Germany. Ideal for compact and high radial load machinery arrangements. Explore EnvMart's comprehensive selection of INA Roller Bearings for industrial and mechanical applications to find the optimal components for your equipment.
