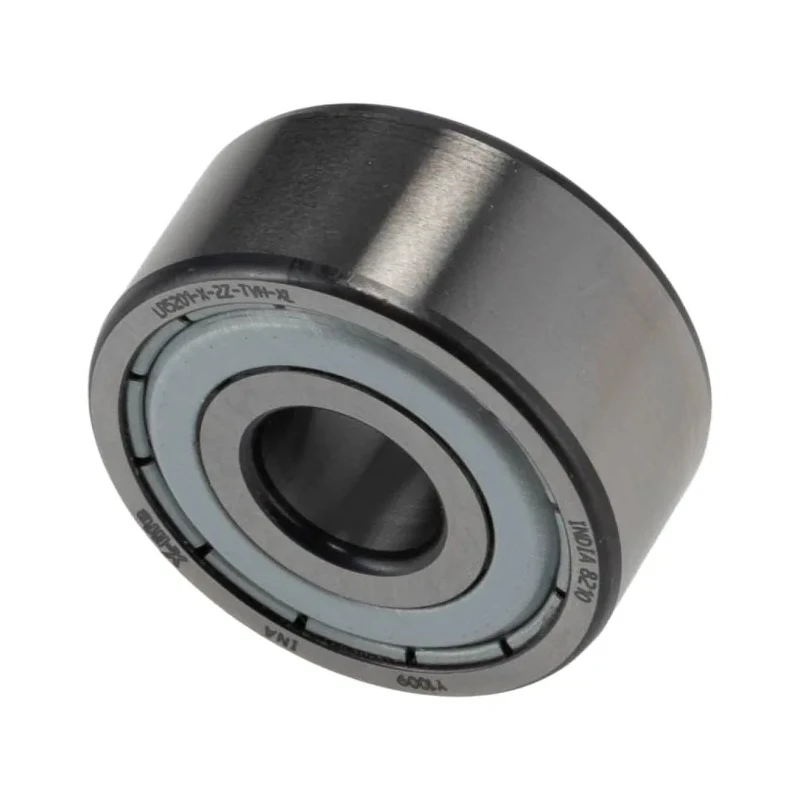

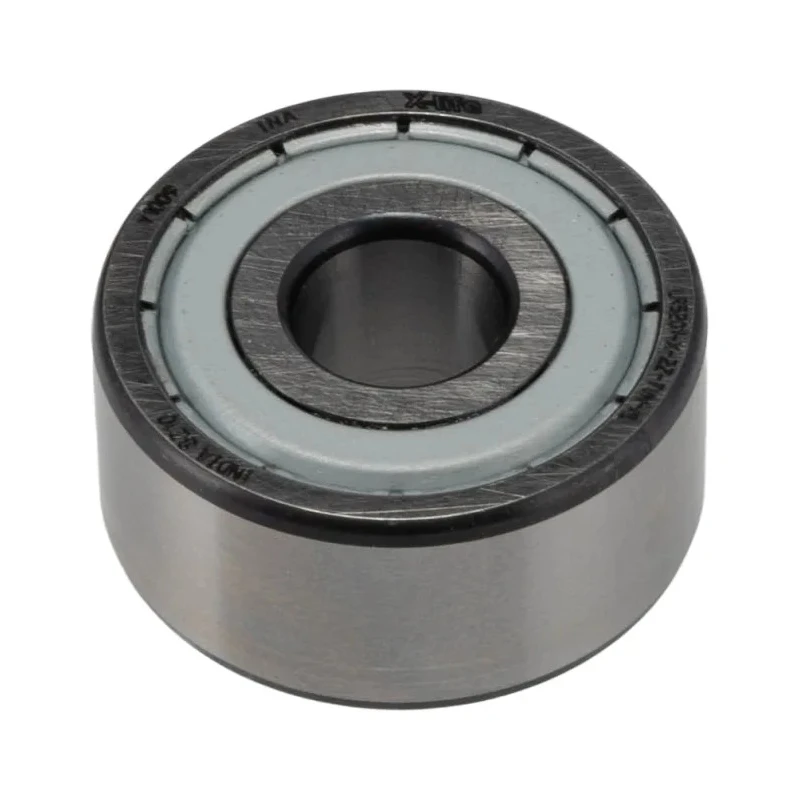

INA Yoke Track Roller Bearing 12mm Bore Diameter, 35mm Roller Diameter LR5201-X-2Z-TVH-XL

INA LR5201-X-2Z-TVH-XL is a high-performance yoke type track roller bearing featuring a 12 mm bore diameter and a 35 mm roller diameter. It is engineered to withstand substantial radial and axial forces in industrial mechanical applications.

This track roller is designed as a single or double row ball bearing with a thick-walled outer ring, which can have either a crowned or cylindrical outside surface profile. The crowned surface is particularly effective where the roller is inclined relative to the mating track, reducing edge stresses and enhancing durability.

The bearing is sealed on both sides, providing effective shielding against contaminants and ensuring optimal lubrication retention. The internal assembly comprises plastic cages similar to those found in angular contact or deep groove ball bearings, delivering smooth rolling and enhanced service life.

Typical applications for the LR5201-X-2Z-TVH-XL include cam gears, bed ways, and conveyor systems used in industrial manufacturing, construction, and material handling environments. It is greased with high-quality lithium soap grease, rated to GA13, ensuring maintenance-free operation under demanding conditions.

Sealed on both sides for contamination protection. Single and double row yoke type ball bearing construction. Crowned or cylindrical outer ring for stress reduction. Suitable for cam gears, bed ways, and conveyor equipment.

Greased with lithium soap grease to GA13 standard. Static load rating: 6100 N. Dynamic load rating: 8.8 kN. Plastic cage ball and race assembly for smooth operation.

This INA bearing is manufactured to exacting standards, providing reliable performance for rotary bearing and housing unit needs across mechanical, manufacturing, and fluid power industries. The design allows for axial loads in both directions, making it suitable for diverse industrial applications requiring durable and robust Roller Bearings.

Explore similar high-quality cam follower and track roller solutions from INA on EnvMart for your industrial tooling and equipment requirements.
