RS PRO Cable Tee Plug Male Screw 2-Pole 10A 1-Way IP68 400V TH381 136-9893

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Cable Tee Plug Male Screw 2-Pole 10A 1-Way IP68 400V TH381 136-9893

Name: RS PRO Cable Tee Plug Male Screw 2-Pole 10A 1-Way IP68 400V TH381 136-9893
Brand: RS PRO
SKU: 207918
Price: 17.99 USD
Availability: InStock



Category Lighting Connectors Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Voltage	400V
Diameter	14mm
Brand	RS PRO
Colour	Black
Model	136-9893
IP Rating	IP68
Number Of Ways	1
Mount Type	Cable
Contact Material	Brass
Series	RS PRO
Termination Type	Screw
Sub Type	Tee Plug
Wire size	5.8, 6.9mm
Pole Format	2
Contact Plating	Silver
Contact Gender	Male
Connector Gender	Male
Lighting Connector Current	10A

Key Features

Miniature 14 mm diameter for compact installations.
Waterproof rating to IP68 and IP69K standards.
Push-pull coupling mechanism ensuring quick and secure mating.
Strong retention force up to 25 kg to prevent accidental disconnections.
Available in locking and quick release versions for safety and convenience.
Constructed with brass contacts plated in silver for reliable conductivity.
Rated for 400V operation and 10A current carrying capacity.
Suitable for architectural, street, and underwater lighting applications.

Product Description

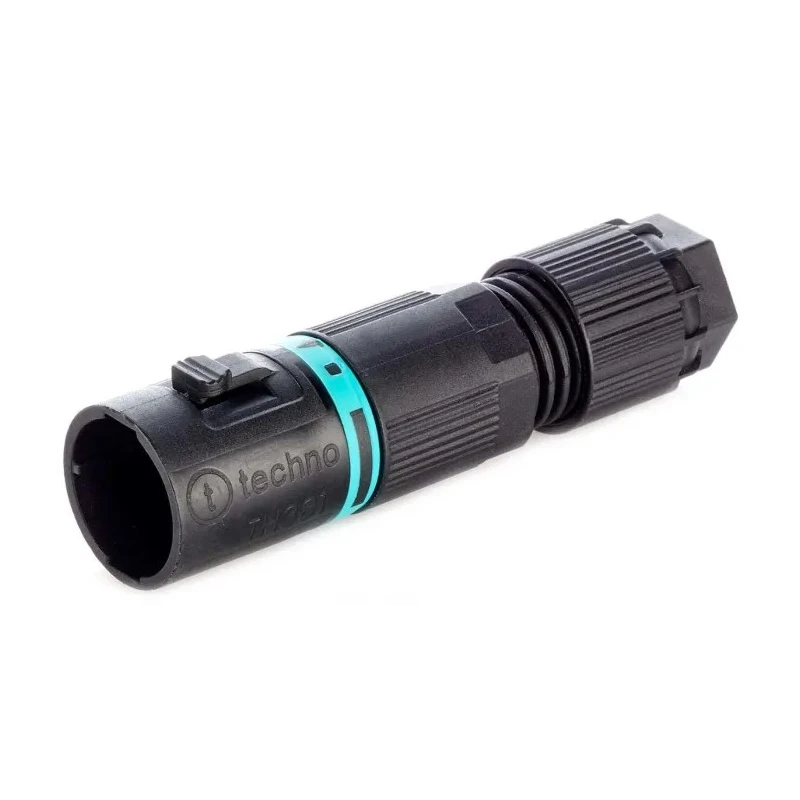

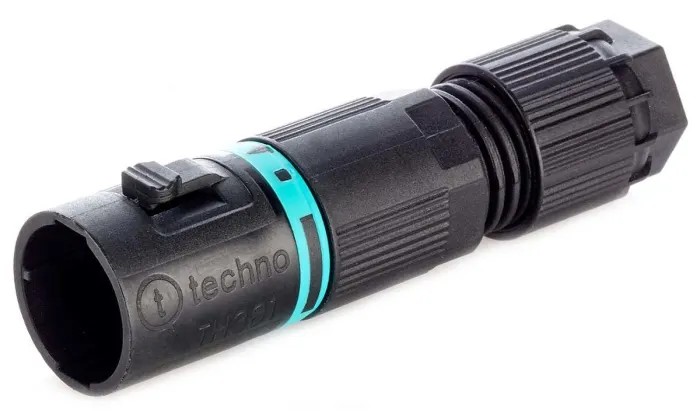

RS PRO 136-9893 Cable Tee Plug is a male screw-terminal lighting connector with 2 poles, rated at 10A and 400V, offering IP68 waterproof protection for demanding electrical applications. Manufactured in Italy, it features a compact 14 mm diameter, designed as part of the TH381 series of waterproof circular micro connectors. The connector is suitable for both harsh environment and underwater lighting use cases.

Featuring a push-pull style coupling mechanism, it allows for quick and easy mating with an audible click and a strong retention force capable of withstanding opposing forces up to 25 kg. The locking version includes additional safety, requiring a flat-blade screwdriver for uncoupling to prevent accidental disconnection. The connector’s contacts are made of brass with silver plating, ensuring reliable conductivity and resistance to corrosion.

The device is rated IP68/IP69K, providing long-lasting protection against dust, permanent submersion, and high-pressure water jets. It supports wire sizes of 5.8 mm to 6.9 mm diameter with screw termination designed for cable mount applications. Its miniature size and robust design make it ideal for architectural lighting, street lighting, underwater installations, and other exterior and interior Class 2 electrical device connections.

Miniature 14 mm diameter for compact installations. Waterproof rating to IP68 and IP69K standards. Push-pull coupling mechanism ensuring quick and secure mating. Strong retention force up to 25 kg to prevent accidental disconnections.

Available in locking and quick release versions for safety and convenience. Constructed with brass contacts plated in silver for reliable conductivity. Rated for 400V operation and 10A current carrying capacity. Suitable for architectural, street, and underwater lighting applications.

Designed for cable mount with screw termination to ensure secure connections. This RS PRO connector is a reliable choice for industrial, commercial, and outdoor lighting systems, ensuring long-term durability and ease of maintenance.
