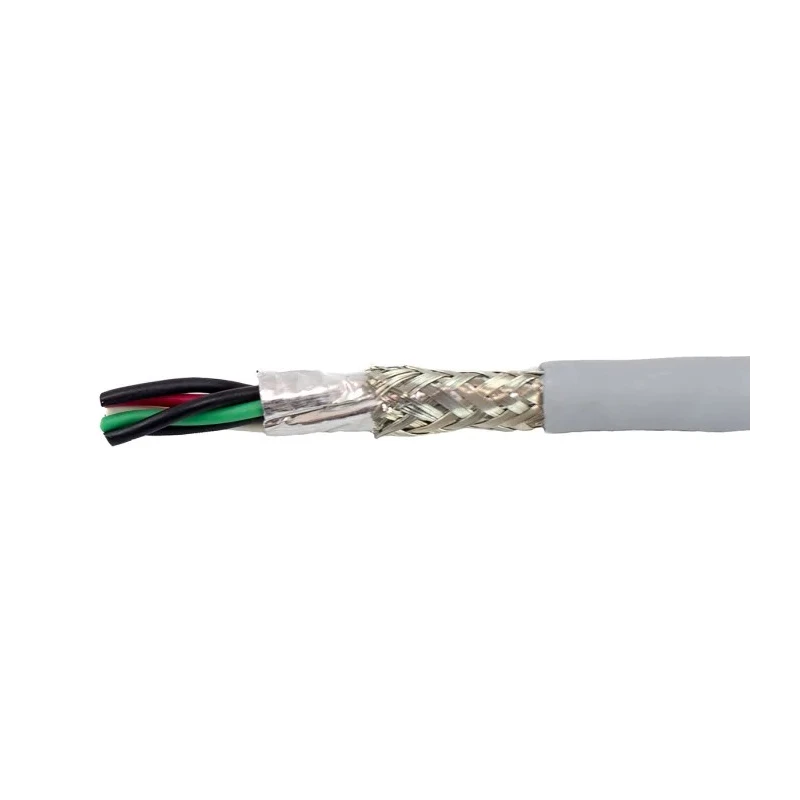

Alpha Wire Ecogen Ecocable Mini Series Data Cable 3 Pairs 6 Cores 0.09 mm² 30 m Grey Sheath MPPE 78353 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.09 mm² |
| Model | 78353 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.34mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.171 inch (4.34 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | MPPE |
| Standards/Approvals | UL, CE, CSA |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 40AWG |
| Size of Strands | 40AWG |
| Number of Pairs | 3 |
| Conductors | 3, White/Black, White/Brown, White/Red |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/40 |
Key Features
- The cable features stranded tin copper conductors with 19 strands at 40 AWG size.
- It has an outside diameter of 4.34 mm and a jacket thickness of 0.015 inch (0.38 mm).
- The insulation thickness is 0.007 inch (0.18 mm) with mPPE material construction.
- Designed for temperatures ranging from -40°C to +80°C with a voltage rating of 300 V.
- The cable includes Supra-Shield foil and braid shielding for excellent EMI performance.
- The sheath is halogen-free and made from modified polyphenylene ether (mPPE) providing low outgassing and is 100% recyclable.
- Suitable for industrial communication applications including telecommunication, automation, and radio transmission.
- The cable conforms to UL, CE, and CSA standards with RoHS and REACH compliance.
Product Description
Alpha Wire 78353 SL005 Ecogen Ecocable Mini Series Data Cable is a 3 pair, 6 core twisted pair cable with a 0.09 mm² cross sectional area and 30 meter length, featuring a grey mPPE sheath. It is designed for a voltage rating of 300 V and suitable for demanding industrial and communication environments. The stranded conductor uses tin copper wire with 19 strands sized at 40 AWG, providing flexibility and reliable signal transmission.
The cable's nominal outside diameter is 4.34 mm, with a jacket thickness of 0.015 inch (0.38 mm) and insulation thickness of 0.007 inch (0.18 mm). It operates efficiently within a temperature range of -40°C to 80°C and is halogen-free, minimizing hazardous emissions in case of fire.
The EcoCable Mini range provides a Supra-Shield foil and braid shield comprising triple layers of aluminium/polyester/aluminium foil combined with a tinned copper braided shield. This construction ensures superior electromagnetic interference (EMI) protection, crucial for sensitive data communication signals.
Constructed with mPPE insulation and jacket, the cable is lighter and thinner than typical PVC counterparts, enabling easier installation and cable management. The material also offers excellent dielectric properties resulting in reduced wall thickness and improved environmental sustainability due to its 100% recyclability.
Typical applications for this cable include radio transmitters, electronic circuit interconnects, telecommunication systems, automation installations, and broadcast studios. It is also compliant with NFPA 79 standards for electrical safety in industrial machinery, providing additional operator and equipment protection.
Stranded tin copper conductors with 19 x 40 AWG strands. Grey mPPE jacket and insulation for durability and reduced weight. Wide operating temperature range from -40°C to +80°C. Rated for 300 V nominal voltage with halogen-free fire behaviour.
Supra-Shield® foil and braid to ensure EMI resistance. Compliance with UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, and WEEE standards.
The product represents a high-quality industrial and communication cable choice for varied environments requiring reliable, lightweight, and environmental-friendly data transmission solutions. Explore more options in the Alpha Wire product range and related categories at EnvMart for professional electrical and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a voltage rating of 300 V, making it suitable for various industrial and communication applications.
It can operate efficiently within a temperature range of -40°C to +80°C, accommodating various environmental conditions.
The cable features stranded tin copper conductors and is constructed with a grey modified polyphenylene ether (mPPE) jacket, which is halogen-free and recyclable.
The nominal outside diameter of this cable is 4.34 mm, allowing for flexible installation options.
This model has 6 cores, organized into 3 pairs, which enhances its data transmission capabilities.
It includes Supra-Shield foil and braid shielding, which consists of triple layers of aluminium/polyester/aluminium foil combined with a tinned copper braided shield for excellent EMI performance.
The insulation thickness is 0.007 inch (0.18 mm), while the jacket thickness is 0.015 inch (0.38 mm).
It conforms to UL, CE, and CSA standards and is compliant with RoHS and REACH regulations, ensuring safety and environmental responsibility.
This cable is suitable for industrial communication applications, including telecommunication, automation, and radio transmission.
The conductors have a cross-sectional area of 0.09 mm², which supports effective signal transmission.
Each conductor consists of 19 strands sized at 40 AWG, providing flexibility and reliable signal transmission.
The cable is manufactured in India, reflecting its origin in a recognized industrial region.
