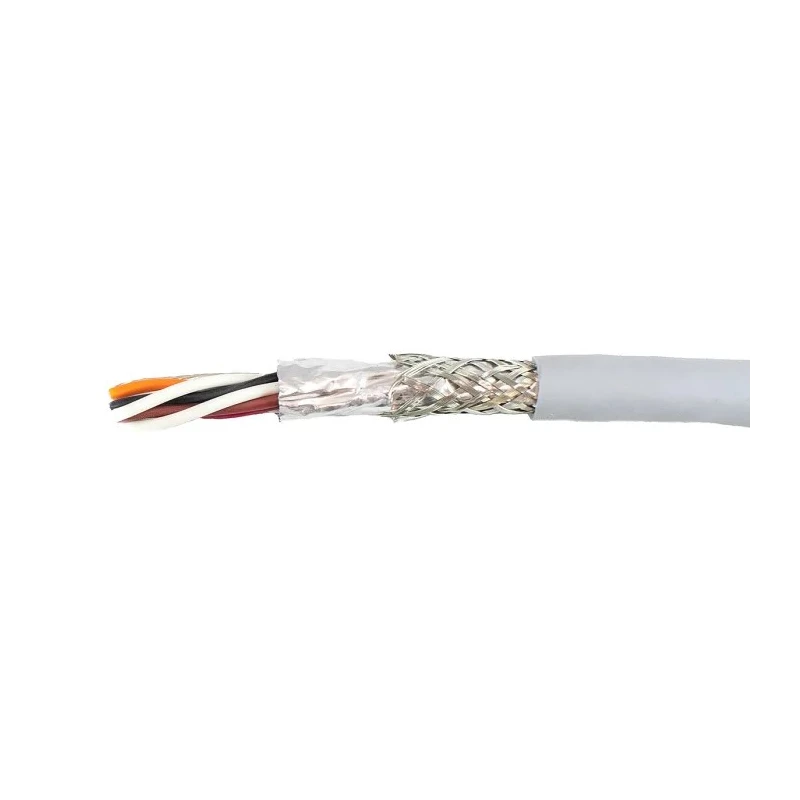

Alpha Wire Ecogen Ecocable Mini Series Data Cable 4 Pairs 8 Cores 0.15 mm² 30 m Grey Sheath MPPE 78364 SL005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecocable Mini Series Data Cable 4 Pairs 8 Cores 0.15 mm² 30 m Grey Sheath MPPE 78364 SL005

Name: Alpha Wire Ecogen Ecocable Mini Series Data Cable 4 Pairs 8 Cores 0.15 mm² 30 m Grey Sheath MPPE 78364 SL005
Brand: ALPHA WIRE
SKU: 207463
Price: 626.64 USD
Availability: InStock



Category Data Cable Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.15 mm²
Model	78364 SL005
Cable Length	30m
Series	Ecogen Ecocable Mini
Outside diameter	5.08mm
Maximum Operating Temperature	80°C
Number Of Cores	8
Conductor Material	Tin Copper Wire
Insulation Thickness	0.007 (0.18 mm)
Nominal Diameter	0.200 inch (5.08 mm)
Minimum Operating Temperature	-40°C
Jacket Material	MPPE
Standards/Approvals	CE, CSA, UL
Jacket Colour	Grey
Fire Behaviour	Halogen Free
Conductor Type	Stranded
Number of Strands	19
Core Strands	19 x 38AWG
Size of Strands	38AWG
Number of Pairs	4
Conductors	4, White/Black, White/Brown, White/Red, White/Orange
Jacket Thickness	0.015 inch (0.38 mm)
Stranding	19/38

Key Features

The cable supports a voltage rating of 300 V suitable for industrial data transmission.
Core conductors are stranded and made from tin copper wire for durability and conductivity.
The jacket and insulation are constructed from mPPE material, providing a halogen-free and recyclable design.
It operates efficiently within a temperature range of -40°C to 80°C ensuring reliability in varied environments.
Supra-Shield foil plus braid shielding offers excellent EMI protection for sensitive electronic applications.
The cable diameter is nominally 5.08 mm with a robust 0.38 mm thick jacket for mechanical protection.
Designed to meet CE, CSA, and UL standards for safety and quality assurance.
Suitable for applications in telecommunications, automation, radio transmitters, and studios requiring low interference data cables.

Product Description

Alpha Wire 78364 SL005 Ecogen Ecocable Mini Series Data Cable is a high-performance, 4-pair, 8-core data cable rated at 300 V and featuring a 0.15 mm² conductor cross section. It is enclosed in a durable grey mPPE sheath that is halogen-free and fully recyclable, making it an environmentally responsible choice for industrial and commercial applications.

The stranded conductors made from tin copper wire provide excellent electrical conductivity and mechanical strength, while the Supra-Shield foil plus braid shielding ensures superior electromagnetic interference (EMI) protection. The cable is designed to operate in harsh environments with a temperature range from -40°C to 80°C.

Its low wall thickness and lightweight design compared to conventional PVC cables enable easier handling and installation in complex automation, telemetry, and communication systems. The cable complies with multiple global standards including CE, CSA, and UL, guaranteeing reliable performance and safety compliance.

This data cable is ideal for use in radio transmitters, telecommunication infrastructure, electronic circuits, automation, and recording studios where clear data transmission is critical. Its halogen-free characteristics reduce toxic emissions in the event of fire, enhancing workplace safety.

The cable features 4 pairs (8 cores) with stranded tin copper conductors for effective signal integrity. Its mPPE jacket and insulation provide light weight and strong environmental resistance. Supra-Shield® foil and braid shielding deliver robust EMI protection for signal clarity.

Operating range from -40°C to 80°C suits a wide variety of industrial environments. Nominal diameter of 5.08 mm and jacket thickness of 0.38 mm ensure mechanical durability. Halogen-free design reduces environmental impact and enhances fire safety.

Approved by CE, CSA, and UL, meeting rigorous international electrical standards. Perfect for communication, automation, and industrial data transmission applications.

Choose Alpha Wire Ecogen Ecocable Mini Series Data Cable for high reliability, compliance, and eco-friendly performance in electrical and industrial data cabling tasks. Explore more cables and industrial wiring solutions on EnvMart for your project requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The cable supports a voltage rating of 300 V, making it suitable for industrial data transmission applications.

The conductors are made from stranded tin copper wire, while the jacket and insulation are constructed from mPPE material, which is halogen-free and recyclable.

It operates efficiently within a temperature range of -40°C to 80°C, ensuring reliability in varied environments.

The nominal diameter of the cable is 5.08 mm, and it has a jacket thickness of 0.38 mm.

This model features 8 cores, organized into 4 pairs.

It is suitable for telecommunications, automation, radio transmitters, and studios requiring low interference data cables.

The cable features Supra-Shield foil plus braid shielding, which offers excellent electromagnetic interference (EMI) protection for sensitive electronic applications.

It is designed to meet CE, CSA, and UL standards for safety and quality assurance.

The conductors are stranded with 19 strands of 38 AWG wire.

The cable has a halogen-free design, which reduces toxic emissions in the event of fire, enhancing workplace safety.

This model has a total length of 30 meters.

The cross-sectional area of the conductors is 0.15 mm².
