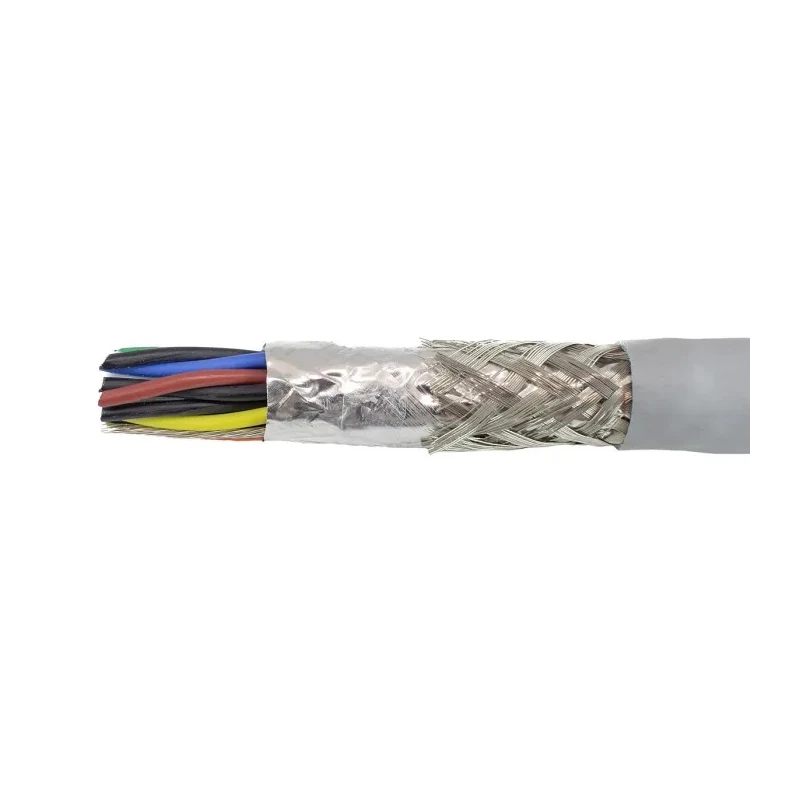

Alpha Wire Ecogen Ecocable Mini Series Data Cable 8 Pairs 16 Cores 0.24 mm² 30 m Grey Sheath MPPE 78378 SL005

Alpha Wire 78378 SL005 Ecogen Ecocable Mini Series Data Cable is a multi-pair data cable designed for professional electrical and industrial uses. With 8 pairs and 16 cores of stranded tin copper wires, it provides reliable data communication under demanding conditions.

This cable features a robust MPPE grey jacket and insulation that combine to offer excellent dielectric characteristics, reduced wall thickness, and approximately 65% lighter weight compared to standard PVC alternatives. Its design embraces sustainability, being fully recyclable and halogen-free.

Operating temperature ranges between -40°C and +80°C, making it suitable for a variety of rigorous applications such as radio transmitters, telecommunication, automation equipment, electronic circuits, and NFPA 79 industrial machinery safety standards.

The Supra-Shield® technology with triple layering of aluminium/polyester/aluminium foil and a braided tinned copper shield ensures exceptional electromagnetic interference (EMI) protection, guaranteeing signal integrity. The stranded conductors are 19 strands of 36 AWG wire, balancing flexibility and strength.

The nominal diameter is 7.06 mm with a 0.38 mm thick mPPE jacket, providing a compact yet resilient construction that supports a voltage rating of 300 V. Its specific gravity of 1.03 and low outgassing properties make it ideal for environmentally controlled settings.

The cable supports a voltage of 300 V, suitable for industrial communication applications. Constructed with stranded tin copper conductors ensuring durability and conductivity. The mPPE insulation and jacket provide excellent dielectric properties and make the cable 100% recyclable.

Operates reliably in temperatures ranging from -40°C to 80°C. Features Supra-Shield® foil and braid shielding for superior EMI resistance. Halogen-free and low outgassing for enhanced safety in industrial environments. The cable's outside diameter measures 7.06 mm with a jacket thickness of 0.38 mm.

Core strands are composed of 19 strands at 36 AWG size enhancing flexibility and performance.

This cable is utilized extensively in industrial, electrical, automation, communication, and electronic applications requiring high-performance and environmentally conscious wire solutions. It meets CSA, UL, and CE standards assuring quality and safety compliance.
