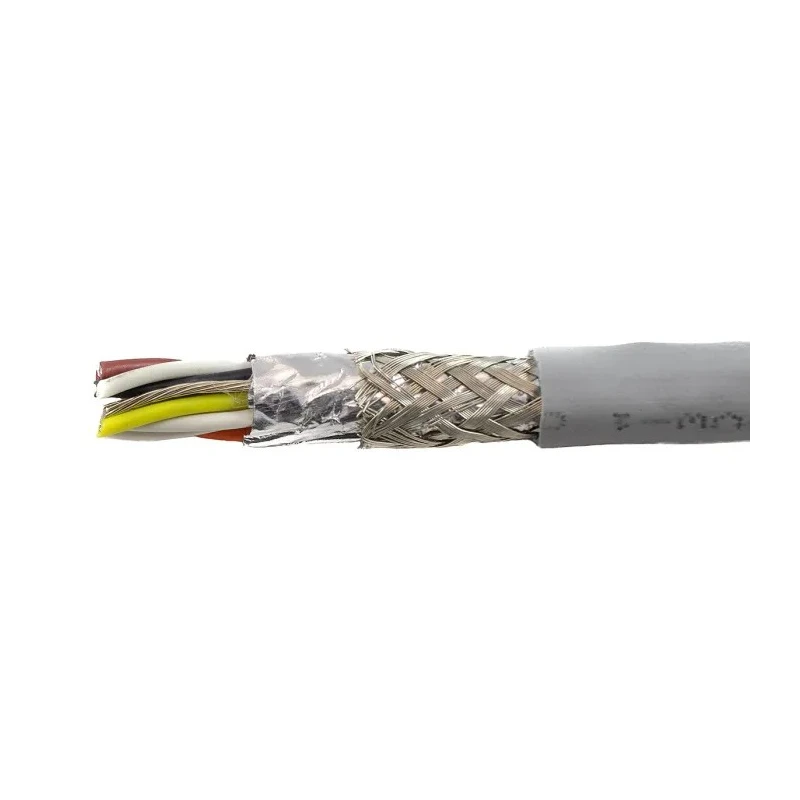

Alpha Wire Ecogen Ecocable Mini Series Data Cable 5 Pairs 10 Cores 0.24 mm² 30 m Grey Sheath MPPE 78325 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.24 mm² |
| Model | 78325 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 6.05mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.238 inch (6.05 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | MPPE |
| Standards/Approvals | CE, CSA Certified, CSA I A/B FT1, UL AWM 21460, UL Recognised, UL VW-1 |
| Jacket Colour | Grey |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 36AWG |
| Size of Strands | 36AWG |
| Number of Pairs | 5 |
| Conductors | 5, White/Black, White/Brown, White/Red, White/Orange, White/Yellow |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/36 |
Key Features
- Designed with mPPE insulation and jacket for reduced weight and superior dielectric properties.
- Stranded tinned copper conductors optimize conductivity and flexibility.
- The cable operates within a temperature range of -40°C to +80°C, suitable for diverse environments.
- Low Smoke Zero Halogen (LSZH) jacket ensures safety in fire-prone applications.
- Complies with CE, CSA, UL certifications, and has Supra-Shield foil plus braid shielding for excellent EMI performance.
- Nominal outer diameter of 6.05 mm with a lightweight and compact design ideal for industrial and automation use.
- Colored conductor pairs enable easy identification and wiring.
- Eco-friendly and fully recyclable construction supports sustainable operations.
Product Description
Alpha Wire 78325 SL005 Ecogen Ecocable Mini Series Data Cable is a high-performance data cable engineered with 5 pairs and 10 cores of 0.24 mm² stranded tinned copper conductors. Featuring an outer diameter of 6.05 mm and a 30 m cable length, this cable is sheathed with grey mPPE, providing excellent dielectric properties and significant weight reduction compared to PVC equivalents.
This cable operates efficiently within a broad temperature range from -40°C to +80°C, enabling its use in demanding industrial, automation, and communication settings. The Low Smoke Zero Halogen (LSZH) jacket enhances safety by minimizing halogen emissions and smoke in case of fire, making it ideal for industrial and construction environments where safety standards are critical.
Equipped with Supra-Shield foil and braid shielding, composed of triple layers of aluminium/polyester/aluminium foil and tinned copper braid, this cable presents superior EMI protection ensuring clean signal transmission for communication and data networking.
The alpha-wire design uses colored conductor pairs for ease of identification, featuring white paired with black, brown, red, orange, and yellow for precise wiring. Its lightweight and recyclable MPPE sheath designate the cable an eco-friendly choice aligned with environmental standards.
Designed with mPPE insulation and jacket for reduced weight and superior dielectric properties. Stranded tinned copper conductors optimize conductivity and flexibility. The cable operates within a temperature range of -40°C to +80°C, suitable for diverse environments.
Low Smoke Zero Halogen (LSZH) jacket ensures safety in fire-prone applications. Complies with CE, CSA, UL certifications, and has Supra-Shield foil plus braid shielding for excellent EMI performance. Nominal outer diameter of 6.05 mm with a lightweight and compact design ideal for industrial and automation use.
Colored conductor pairs enable easy identification and wiring. Eco-friendly and fully recyclable construction supports sustainable operations. Suitable for communication, telecommunication, automation, and industrial machinery protection applications.
This product is highly recommended for industrial, laboratory automation, telecommunications, manufacturing, and communication installations where reliable and safe data transmission cables are essential. Its compliance with NFPA 79 further ensures safety and operational integrity in industrial machinery environments.
Explore a wide range of Data Cables and communication solutions at EnvMart for your specific industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal outer diameter of this data cable is 6.05 mm.
This model can operate at a maximum temperature of 80°C.
It has 10 cores, organized into 5 pairs.
The cable features mPPE insulation, which provides reduced weight and superior dielectric properties.
The conductors are made of stranded tinned copper wire.
It complies with CE, CSA, UL certifications, and has additional approvals such as CSA I A/B FT1 and UL VW-1.
The cable length is 30 meters.
It has a Low Smoke Zero Halogen (LSZH) jacket, which minimizes halogen emissions and smoke in case of fire.
The voltage rating for this data cable is 300V.
The conductors consist of 19 strands of 36 AWG.
This cable is suitable for communication, telecommunication, automation, and industrial machinery protection applications.
The cable features colored conductor pairs, which enable easy identification and wiring.
