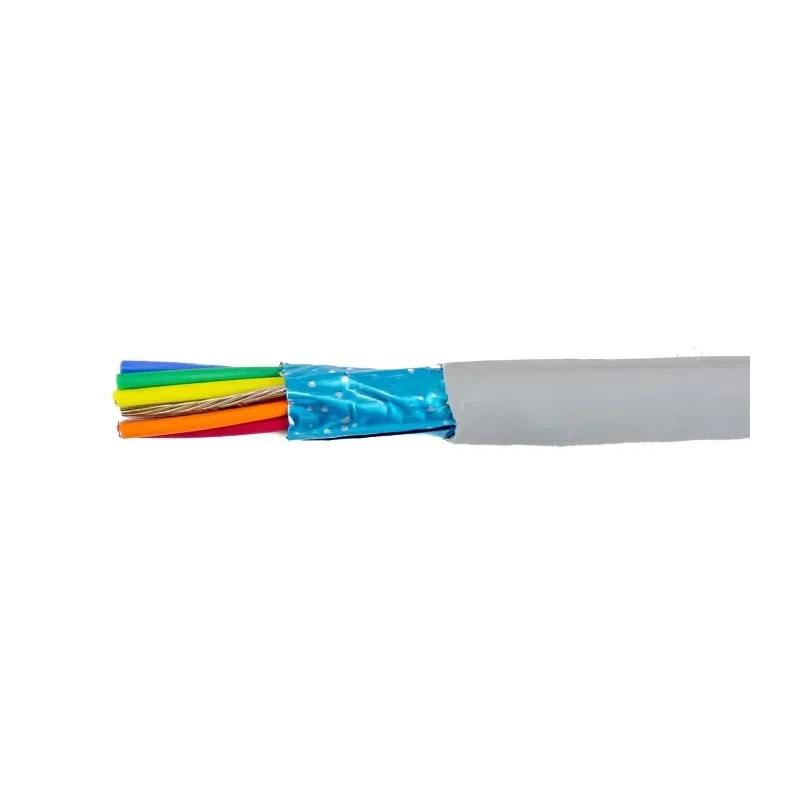

Alpha Wire EcoCable Mini 10 Cores 0.15mm² 26 AWG Screened Control Cable 300V 30m Grey Modified Polyphenylene 78120 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78120 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.42mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.174 inch (4.42 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 26AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.102mm |
| Size of Strands | 0.102mm |
| Cable CSA | 0.15mm² |
| Conductors | 10, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Slate, White |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/38 |
Key Features
- This 30 m long cable operates at 300 V with a screened foil shield to protect against EMI interference.
- Its grey modified polyphenylene ether jacket is halogen-free and highly recyclable for environmentally conscious installations.
- The cable is suitable for temperatures between -40°C and 80°C for reliable performance in various environments.
- The stranded conductor design and specific insulation thickness ensure durability and flexibility.
- Certified to UL, CSA, and CE standards, the cable meets rigorous industrial electrical requirements.
- Designed for communication, automation, and electronic circuitry applications requiring low interference and high reliability.
- The compact design and lightweight mPPE construction reduce cable bulk compared to PVC equivalents.
- The 10 conductors include standard color coding for easy identification during installation.
Product Description
Alpha Wire 78120 SL005 EcoCable Mini is a premium screened control cable designed with 10 cores, each 0.15mm² (26 AWG) stranded tin copper conductors and a grey modified polyphenylene ether (mPPE) jacket. It supports industrial and electronic applications requiring a 300 V rated cable with excellent durability.
This foil shielded cable combines a polyester/aluminium shield with tinned copper to reduce electromagnetic interference, ensuring clean signal transmission in automation, communication, and control systems.
The mPPE jacket and insulation materials are halogen-free, providing a safe and environmentally friendly solution that is 100% recyclable. Its specific gravity of 1.03 and optimized insulation thickness facilitates a lightweight, smaller cable size compared to traditional PVC cables.
Operating temperatures from -40°C up to 80°C make it suitable for challenging environments and NFPA 79 industrial machinery safeguards. The stranded conductors are composed of 19 strands sized 0.102 mm each for enhanced flexibility and reliability.
The EcoCable Mini range meets UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, WEEE, and ISO 10993-5 certifications, confirming its compliance with major global standards. This control cable is ideal for radio transmitters, electronic circuitry, telecommunication, studio environments, and automation systems.
The 10 color-coded conductors include black, brown, red, orange, yellow, green, blue, violet, slate, and white for straightforward installation and maintenance.
Set your projects up with a reliable Control Cable that balances performance, environmental responsibility, and versatile application support. Browse more from the Electronics & Electricals category at EnvMart for related high-quality cables and wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable operates at a voltage rating of 300V.
It can operate at a maximum temperature of 80°C.
This model features 10 cores.
The conductors are made of stranded tin copper wire.
The outside diameter of the cable is 4.42 mm.
Yes, the jacket material is halogen-free, making it safer for use in various environments.
It has a modified polyphenylene ether (mPPE) jacket and insulation thickness of 0.007 inches (0.18 mm).
It is certified to UL, CSA, and CE standards.
The minimum operating temperature is -40°C.
The conductors are color-coded as follows: black, brown, red, orange, yellow, green, blue, violet, slate, and white.
It is designed for communication, automation, and electronic circuitry applications requiring low interference and high reliability.
The conductors are stranded with 19 strands sized 0.102 mm each for enhanced flexibility.
