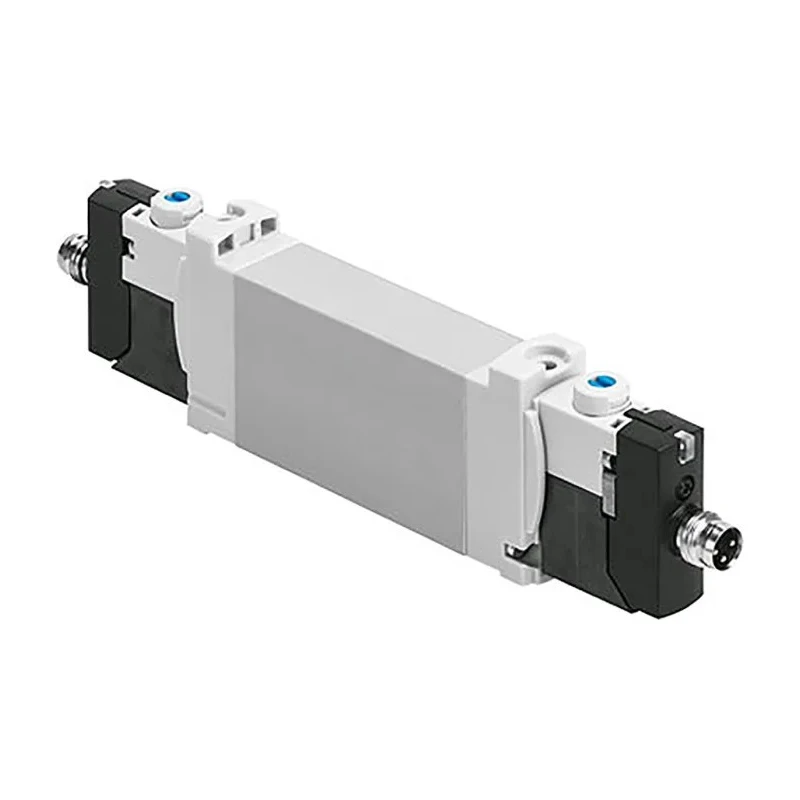

Festo Solenoid Valve 5/2 Electric Manifold Mount 24V DC Aluminium Alloy VUVG-BK14-B52-T-F-1R8L-S

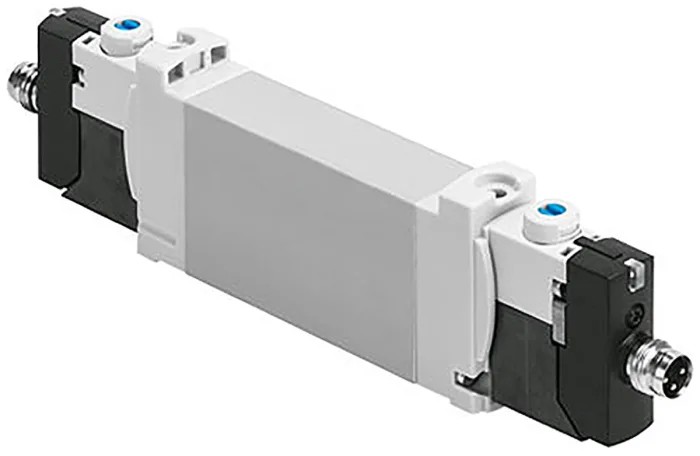

Festo VUVG-BK14-B52-T-F-1R8L-S is a 5/2 way bistable solenoid valve specifically designed for manifold mounting in pneumatic systems. It operates on 24V DC power and features an aluminium alloy body combined with nitrile rubber (NBR) seals to ensure durability and effective sealing. This valve supports a maximum operating pressure of 7 bar and has a maximum flow rate of 380 litres per minute, making it suitable for a wide range of industrial pneumatic control applications.

The valve's compact design, with a length of 74.3 mm and width of 10 mm, allows for installation where space is limited. It functions with two positions and five ports, delivering reliable bistable valve performance via piston spool with sealing ring design principle. The valve is equipped with a 3-pin plug electrical connection and operates at low power consumption of 0.7 W, ensuring energy-efficient operation.

Designed for flexible mounting, the manifold mount type allows for easy assembly and servicing. The valve supports internal pilot air supply and flange/sub-base pneumatic connections, facilitating integration into complex valve manifolds. Protection ratings of IP40/IP65 provide resistance against dust and water ingress essential for industrial and manufacturing environments.

The VUVG series valves offer advanced features such as non-overlapping air ducts, positive locking seals, and retaining mounting screws for secure assembly. The valve ensures fast installation and maintenance with smart design features including an integrated 360° LED display for quick status review and troubleshooting. These characteristics contribute to enhanced operational uptime and system reliability in pneumatic control applications.

This solenoid valve is RoHS, CE, and cULus certified, reflecting compliance with international standards. The valve is made in Germany and is ideal for diverse industrial sectors including manufacturing automation, pneumatic system controls, and fluid power applications.

This valve features a 5-port, 2-position bistable function for precise pneumatic control. It has a maximum operating pressure of 7 bar and maximum flow rate of 380 L/min. The valve operates within a temperature range of -5°C to 50°C.

Compact dimensions include a length of 74.3 mm and width of 10 mm for space-efficient installation. Equipped with a 3-pin plug electrical connection and low solenoid power consumption of 0.7 W. Constructed with durable aluminium alloy body material and male M3 ports.

Pressure capability up to 10 bar with flexible internal pilot air supply options. Protection rating is IP40/IP65 for robust industrial environments. Applicable for manifold assembly with sub-base valve connections. Explore the range of Festo pneumatic valves on EnvMart for reliable, high-performance industrial components.
