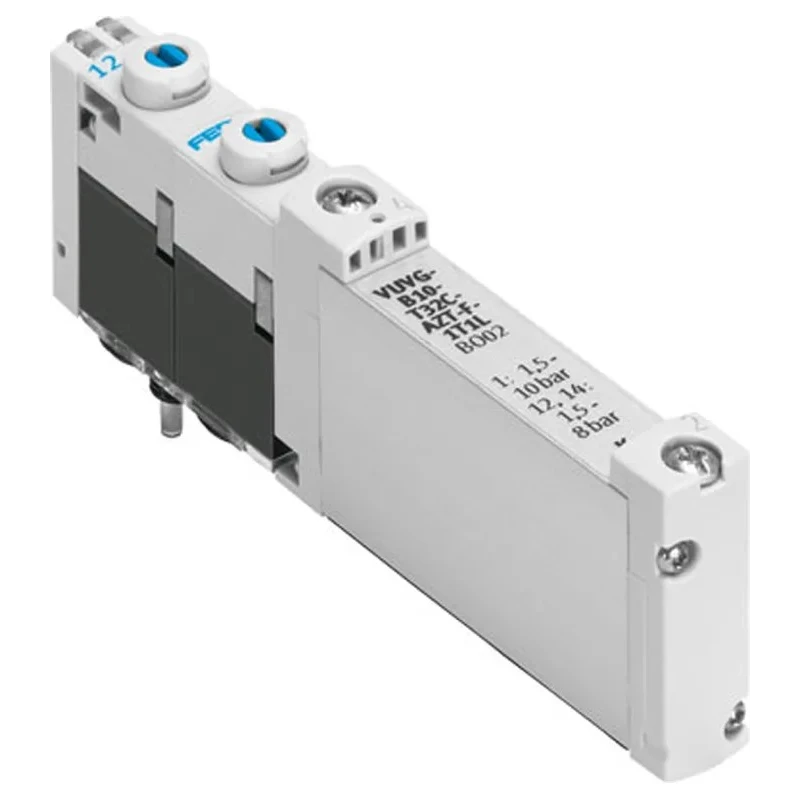

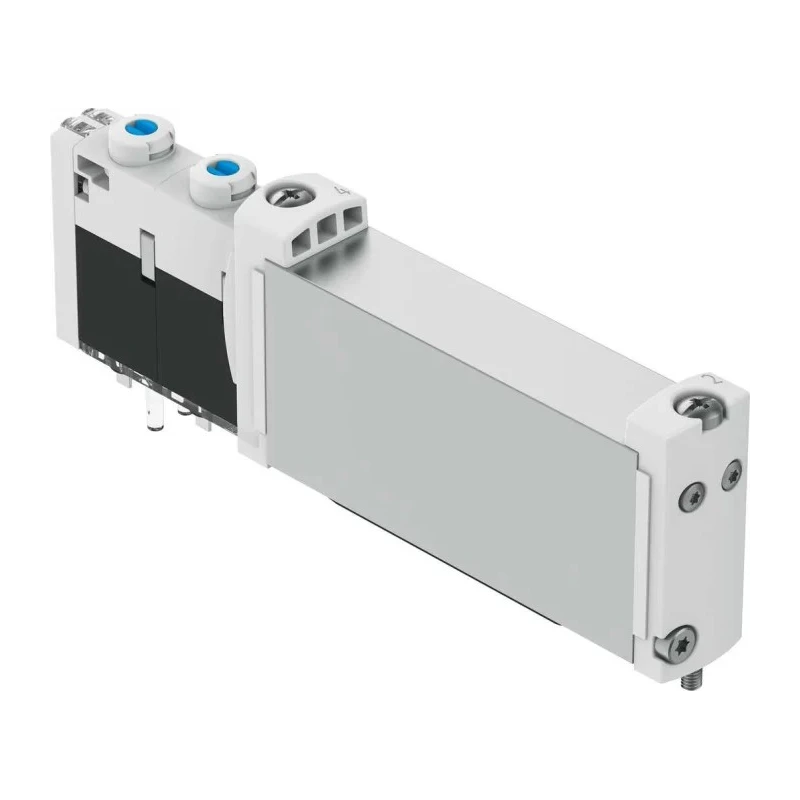

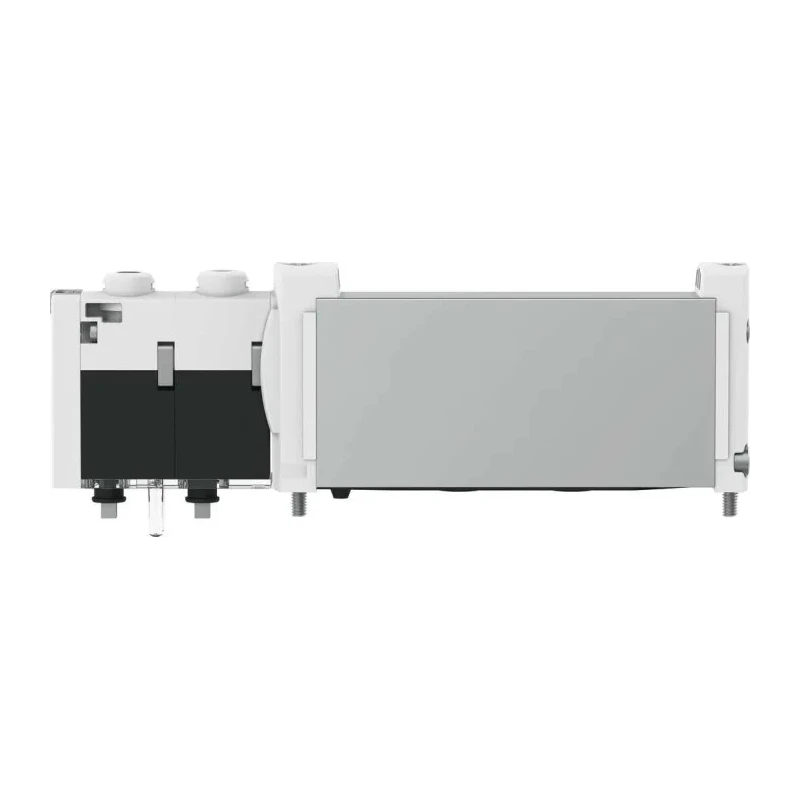

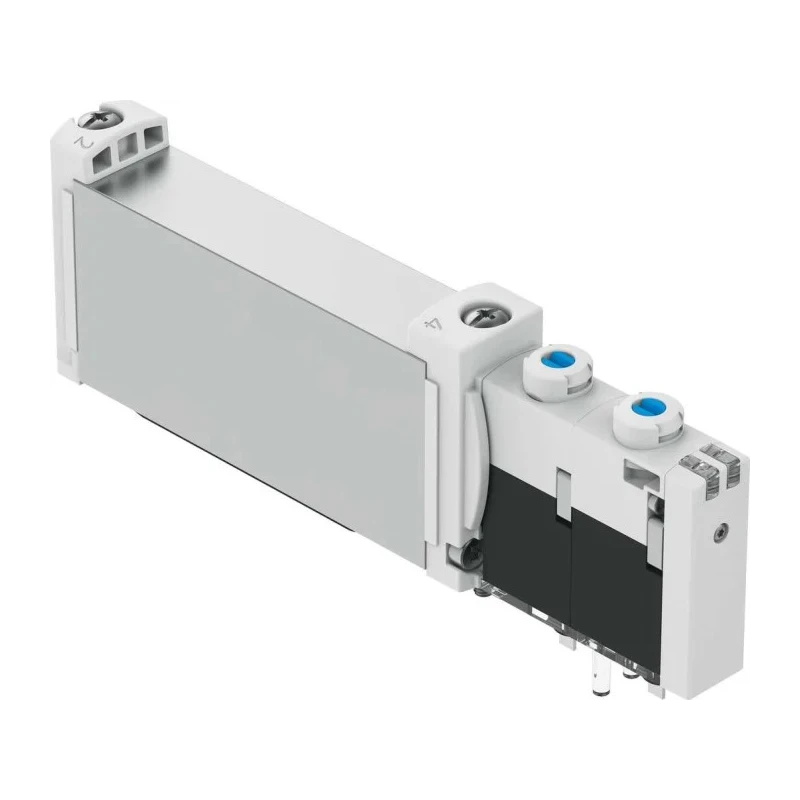

Festo Solenoid Valve 5/3 Mid Position Closed Electric Manifold Mount 24V dc 1W VUVG-B14-P53C-ZT-F-1T1L
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 10 (External) bar, 8 (Internal) bar |
| Length | 74.3mm |
| Model | VUVG-B14-P53C-ZT-F-1T1L |
| Width | 14mm |
| Mount Type | Manifold |
| Series | VUVG |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Port Type | Push-in |
| Number of Positions | 3 |
| Port Size | M3 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Maximum Flow Rate | 510L/min |
| Standards/Approvals | RoHS, cULus |
| Minimum Pilot Pressure | -0.9bar |
| Valve Function | 5/3 Mid Position Closed |
| Electrical Connection Type | Manifold Block |
| Maximum Pilot Pressure | 8bar |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
Key Features
- The valve features a 5-port configuration suitable for pneumatic control systems.
- It employs a single solenoid actuation type with push-in M3 port size.
- Maximum operating pressure is 10 bar externally and 8 bar internally.
- The valve body is made from aluminium alloy with nitrile rubber (NBR) seals.
- Operating temperature ranges from -5°C to 60°C ensuring reliability in varied environments.
- Maximum flow rate is 510 liters per minute for efficient performance.
- The valve has 3 positions with a valve function of 5/3 mid position closed.
- Electrical connection is via manifold block, facilitating easy installation.
Product Description
Festo VUVG-B14-P53C-ZT-F-1T1L Solenoid Valve is an advanced 5/3 mid position closed pneumatic valve designed for electric actuation at 24V dc, consuming 1 watt of power. Manufactured with a robust aluminium alloy body and nitrile rubber seals, it provides durability and efficiency in industrial settings.
This manifold-mounted valve incorporates a single solenoid type actuator, compatible with push-in M3 port sizes. Its 5-port, 3-position configuration is optimized for controlling double-acting cylinders by providing one input, two output, and two exhausting ports. The valve supports external maximum operating pressures up to 10 bar and internal pressures of 8 bar, with a maximum pilot pressure of 8 bar and minimum pilot pressure of -0.9 bar, making it suitable for various pneumatic control applications.
The valve operates reliably within a temperature range of -5°C to 60°C and features a high maximum flow rate of 510 liters per minute, ensuring swift and efficient air control. Its electrical connections are designed for manifold block installation, enhancing integration into existing systems. The valve is compliant with RoHS and cULus standards and does not carry hazardous area certification.
Typical applications include manufacturing automation, construction industry machinery, and power generation plants where precise and reliable pneumatic valve control is required. The valve's quick switching capabilities and design ensure minimal downtime and increased operational efficiency.
The valve features a 5-port, 3-position configuration for versatile pneumatic functions. Robust aluminium alloy body with nitrile rubber seals for long-lasting performance. Manifold block electrical connection facilitates easy system integration.
Operates reliably between -5°C and 60°C with a max flow rate of 510 L/min. Designed for use in industrial manufacturing, construction, and power generation. Consumes only 1 watt of power at 24V dc voltage for energy-efficient operation.
Complies with RoHS and cULus safety and environmental standards. For further pneumatic valve solutions and components, browse the Pneumatic Solenoid Valve category on EnvMart for quality Festo products tailored to industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 10 bar externally and 8 bar internally.
It has a maximum flow rate of 510 liters per minute, allowing for efficient air control.
This valve operates reliably within a temperature range of -5°C to 60°C.
The electrical connection is via a manifold block, facilitating easy installation into existing systems.
This model features a single solenoid actuation type.
The valve has a 5-port configuration, suitable for various pneumatic control applications.
The body is made from aluminium alloy, and it features nitrile rubber (NBR) seals.
The valve has a push-in port size of M3.
The minimum pilot pressure is -0.9 bar.
It complies with RoHS and cULus safety and environmental standards.
Typical applications include manufacturing automation, construction machinery, and power generation plants.
The solenoid consumes 1 watt of power at 24V dc.
