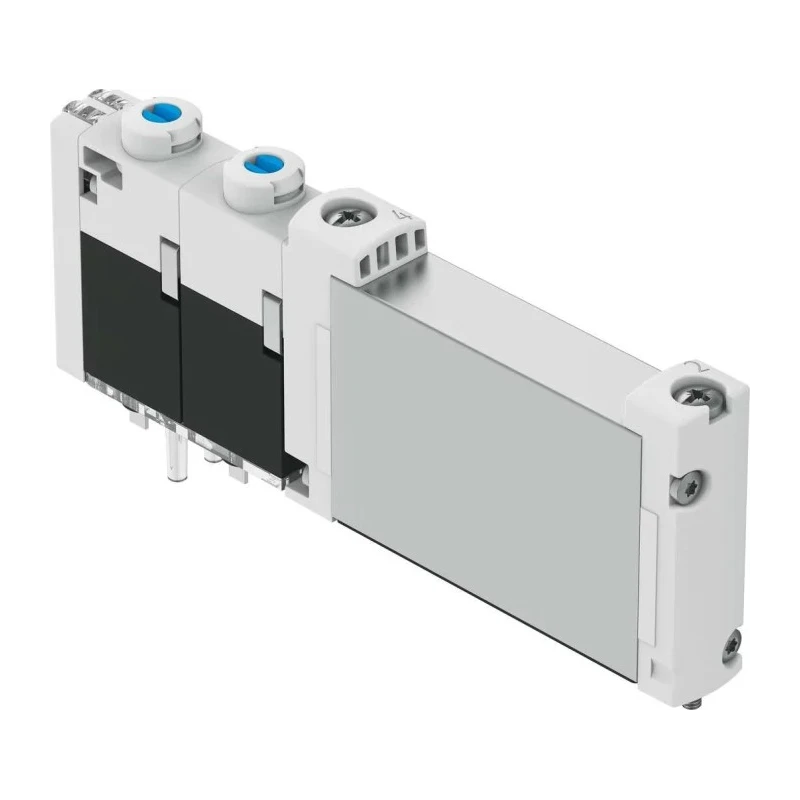

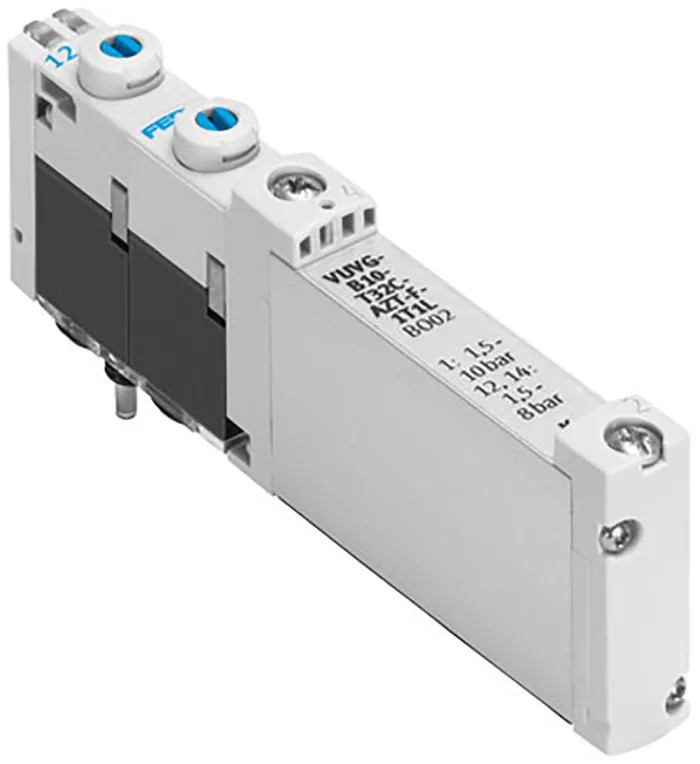

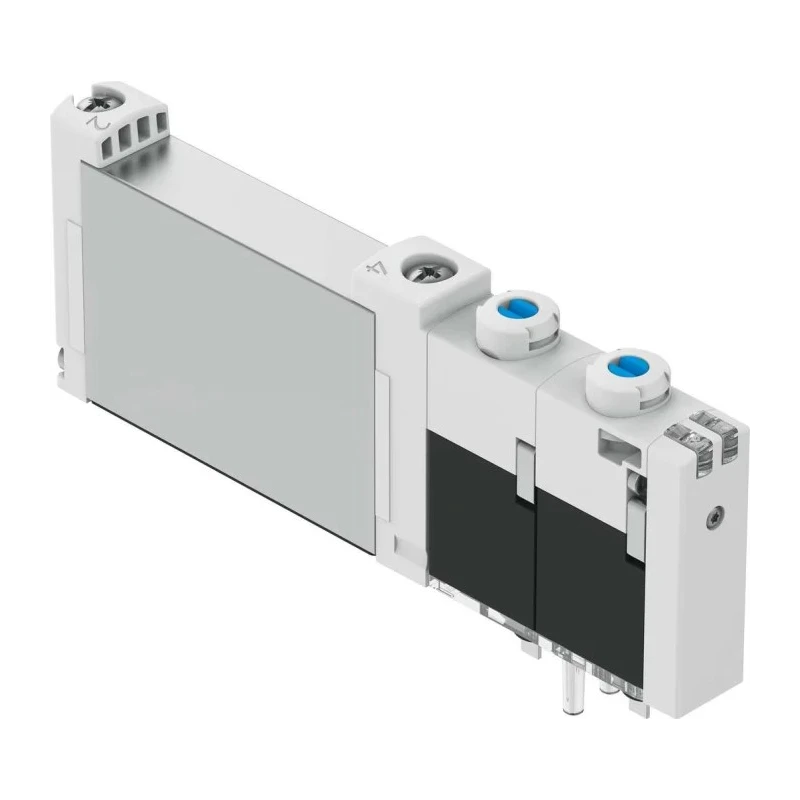

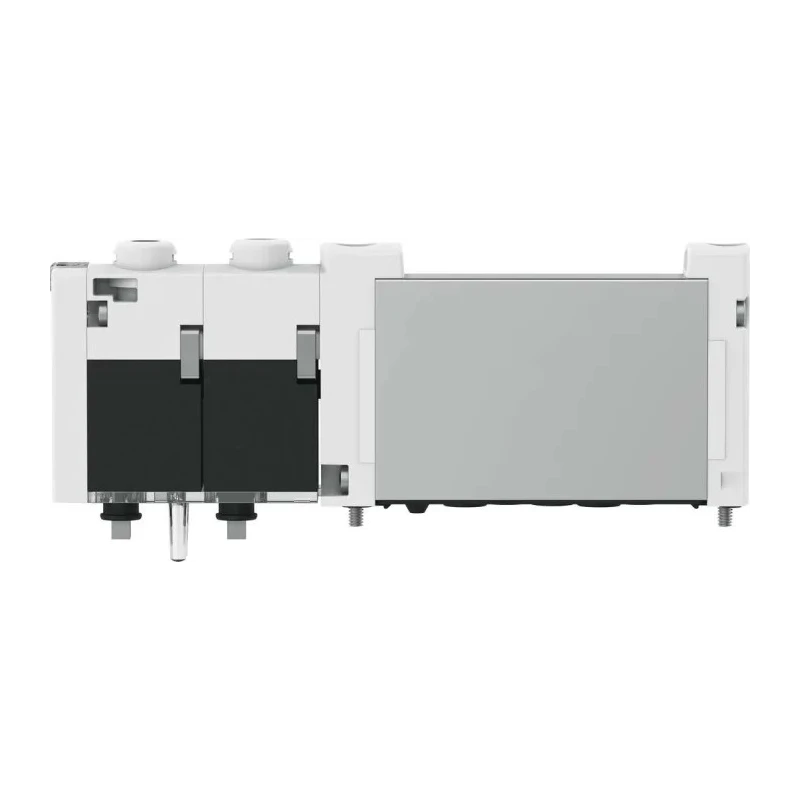

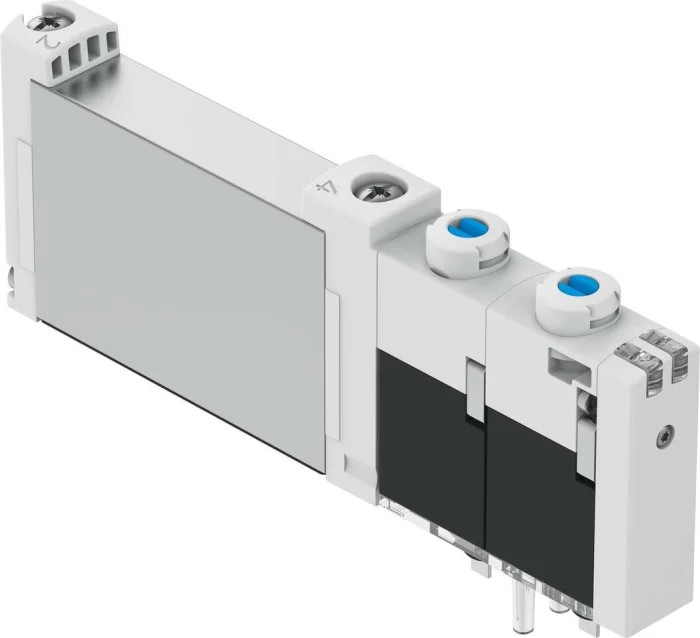

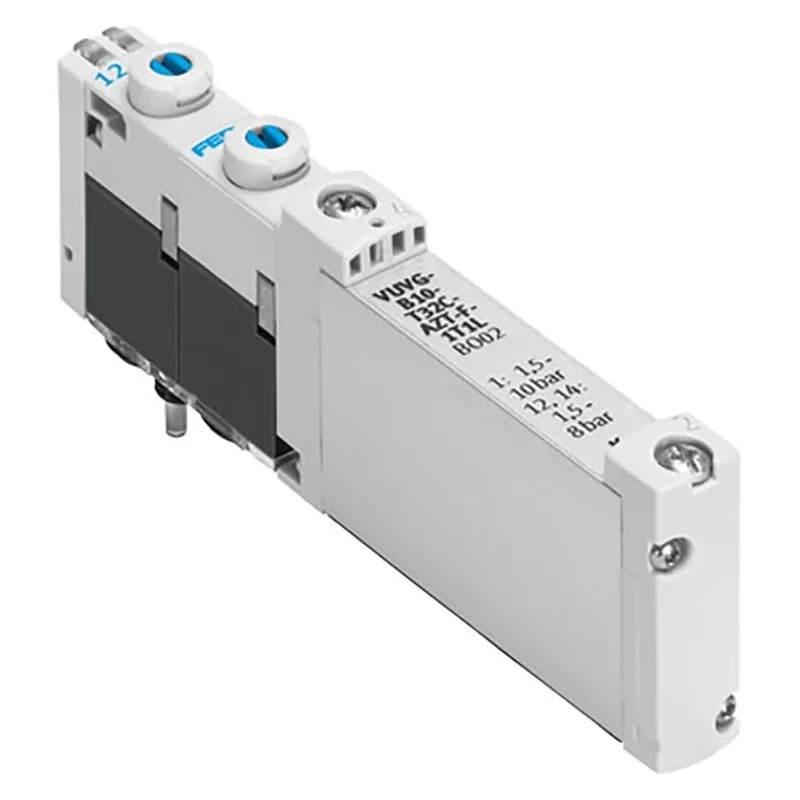

Festo Solenoid Valve 5/3 Mid Position Closed Electric Valve 24V DC Aluminium Alloy Body VUVG-B10-P53C-ZT-F-1T1L
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 10 (External) bar, 8 (Internal) bar |
| Length | 74.3mm |
| Model | VUVG-B10-P53C-ZT-F-1T1L |
| Width | 10mm |
| Mount Type | Manifold |
| Series | VUVG |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 3 |
| Port Size | M3 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Maximum Flow Rate | 260L/min |
| Standards/Approvals | RoHS, cULus |
| Minimum Pilot Pressure | -0.9bar |
| Valve Function | 5/3 Mid Position Closed |
| Electrical Connection Type | Manifold Block |
| Maximum Pilot Pressure | 8bar |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
Key Features
- Valve features a robust aluminium alloy body for durability and mechanical stress resistance.
- Compact 10mm valve size supports a maximum flow rate of 260 L/min.
- Nitrile rubber (NBR) seals provide corrosion resistance and excellent sealing at high pressure.
- Designed for manifold mounting and manifold block electrical connection.
- Operates within a temperature range of -5°C to 60°C for versatile industrial applications.
- 5 ports and 3 stable positions ensure flexible, precise control of airflow.
- Solenoid consumes 1 Watt power, enabling efficient electromagnetic actuation.
- Valve is IP67 rated, dust-tight and water immersion resistant for harsh environments.
Product Description
Festo VUVG-B10-P53C-ZT-F-1T1L solenoid valve is a precision-engineered pneumatic control component designed for fluid power applications requiring reliable and rapid actuation.
This 5/3 mid position closed valve operates on 24V DC electric actuation, featuring a single solenoid for electromagnetic control. Its compact 10mm size allows installation in confined spaces while delivering a nominal flow rate of up to 260 L/min.
The valve body is crafted from aluminium alloy, ensuring high resistance to mechanical stress, abrasion, and impact, contributing to a long operational life. Nitrile rubber (NBR) seals provide excellent sealing performance under maximum operating pressure of 10 bar external and 8 bar internal, resisting corrosion for extended durability.
It is designed for manifold mounting with a manifold block type electrical connection, facilitating modular integration into existing pneumatic systems. The valve maintains stable operation at temperatures from -5°C to 60°C, with a maximum pilot pressure of 8 bar and minimum pilot pressure of -0.9 bar, making it adaptable to varying system requirements.
Equipped with an IP67 rating, this solenoid valve is dust-tight and capable of withstanding temporary immersion in water up to one meter, enabling dependable use in industrial, hospital, textile, and aerospace environments.
Robust aluminium alloy body for increased durability. High flow rate capacity at 260 L/min nominal flow. Durable NBR seals resist corrosion and maintain tight sealing. Manifold mounting and block electrical connection for easy system integration.
Operates effectively within -5°C to 60°C ambient temperatures. Single solenoid actuation with 1 Watt power consumption. IP67 protection rating for dust and water resistance. Compact design minimizes space and load on mounting surfaces.
Fields of application include hospital equipment, textile industry, and aerospace engineering.
This Festo solenoid valve model VUVG-B10-P53C-ZT-F-1T1L exemplifies high quality and reliability in pneumatic control technology. Its precise electric actuation and rugged construction offer dependable operation in challenging industrial settings. EnvMart provides this valve with full specifications and support for industrial fluid power and automation system requirements.
Explore more products in our Pneumatic Solenoid Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum flow rate of this solenoid valve is 260 L/min.
It operates effectively within a temperature range of -5°C to 60°C.
This valve features a manifold block electrical connection type.
This model has 5 ports.
The body of this solenoid valve is made from aluminium alloy.
The maximum operating pressure is 10 bar for external and 8 bar for internal.
It uses nitrile rubber (NBR) seals for excellent sealing performance and corrosion resistance.
The solenoid consumes 1 Watt of power.
The valve function is 5/3 mid position closed.
The port size is M3.
This model complies with RoHS and cULus standards.
It is suitable for applications in hospital equipment, textile industry, and aerospace engineering.
