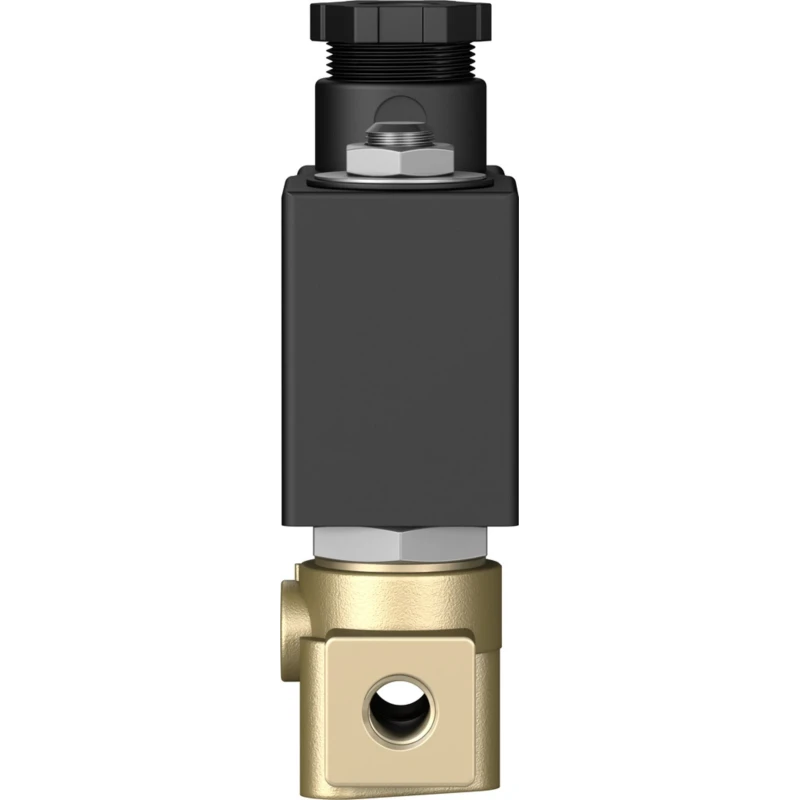

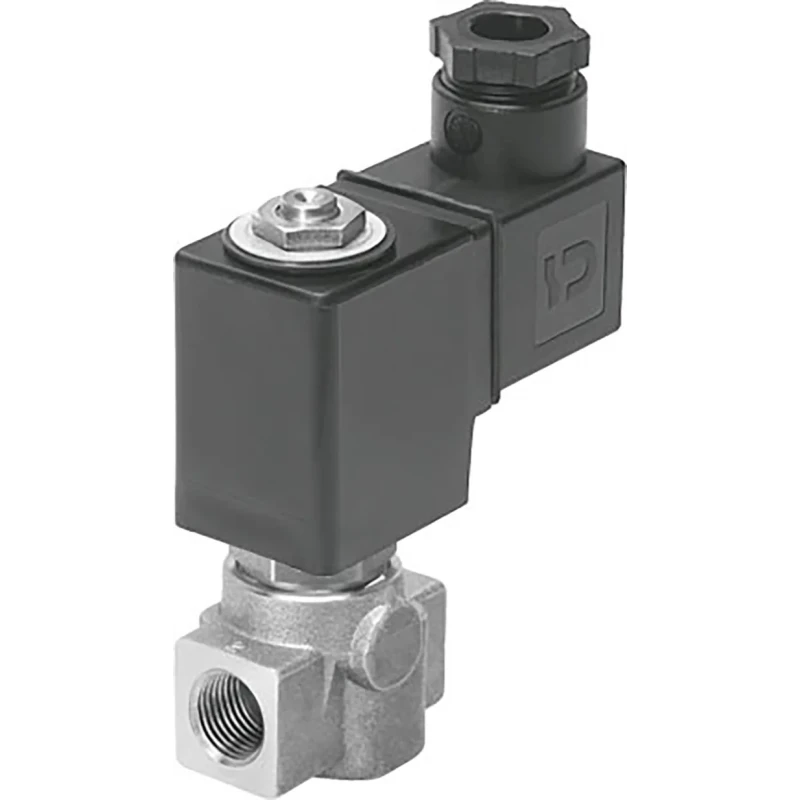

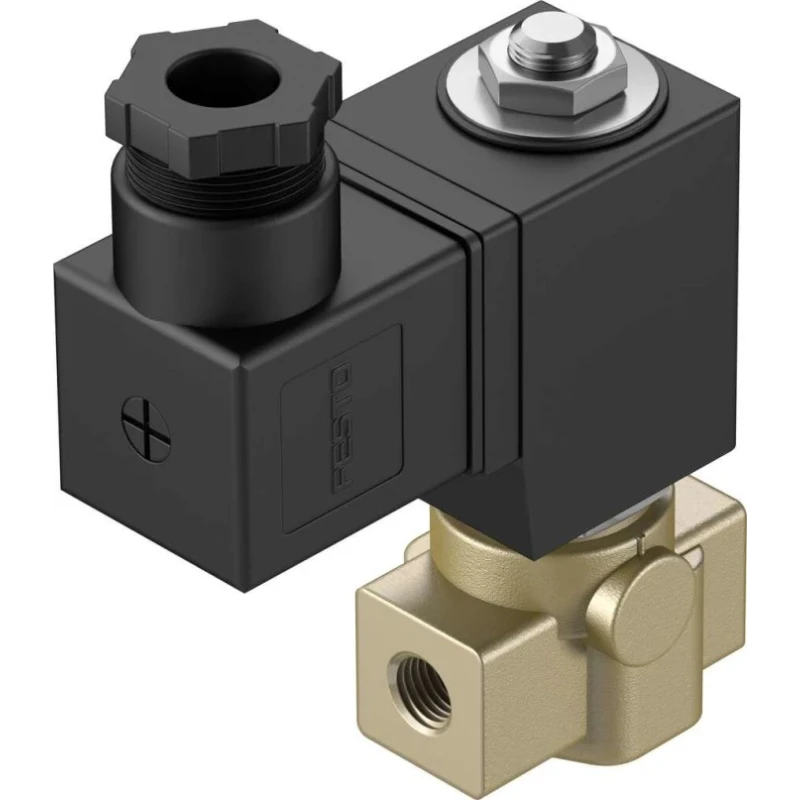

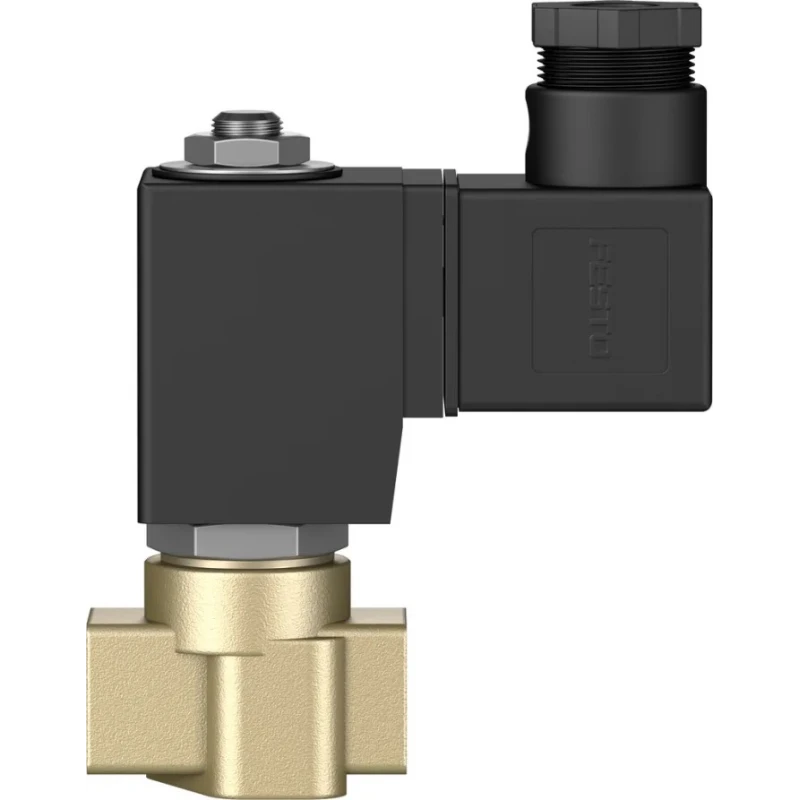

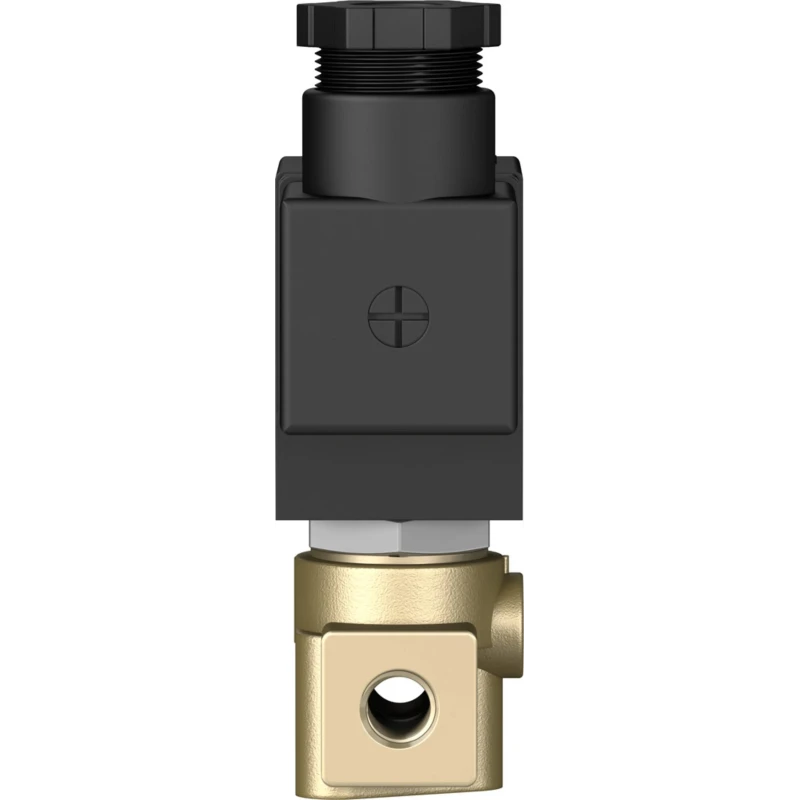

Festo Pneumatic Solenoid Valve 2/2 Closed Monostable Electric G VZWD Series 24V VZWD-L-M22C-M-G14-40-V-1P4-8

Festo VZWD-L-M22C-M-G14-40-V-1P4-8 is a high-quality pneumatic solenoid valve featuring a 2/2 way, normally closed, monostable electric design operating at 24 V DC. It is engineered for precise fluid regulation in demanding industrial automation applications.

This solenoid valve utilizes a direct-acting mechanism that enables swift opening upon activation and mechanical spring-return for rapid closing, supporting continuous operation without manual resetting. Its compact inline mount and 4 mm width make it suitable for tight installations.

The valve body is crafted from robust brass material coupled with fluorelastomer seals, providing excellent chemical resistance and temperature regulation. It is rated for a maximum operating pressure of 8 bar and supports a maximum flow rate of 0.4 cubic meters per hour.

Operating temperature ranges from -10°C to 35°C, making it suitable for various environments. The valve features a plug socket electrical connection type and consumes 6.8 watts of power during operation. Its IP65 ingress protection protects against dust and water ingress, ensuring reliable use in food and beverage plants, agricultural operations, water supply systems, and medical technology.

Designed and manufactured in Germany, this Festo solenoid valve complies with RoHS standards, ensuring environmental and safety compatibility. Its fast-acting response time of under 20 milliseconds makes it highly efficient for automated pneumatic systems.

This valve is a 2/2 way, normally closed (NC), monostable design suitable for automated fluid control. Compact in-line mount with brass body and fluorelastomer seal material ensures durability and chemical resistance. Operates at 24 V DC with a power consumption of 6.8 W and a fast switching time within 20 milliseconds.

Designed for threaded G connection with female port gender and maximum operating pressure of 8 bar. Rated for maximum flow rate of 0.4 m³/h and operates safely within temperatures from -10°C to 35°C. Equipped with a plug socket electrical connection and IP65 ingress protection for dust and water resistance.

Lightweight at 550 g for easy installation and manual handling in industrial settings. Compliant with RoHS standards and made in Germany, suitable for food and beverage, agricultural, water supply, and medical technology industries.
