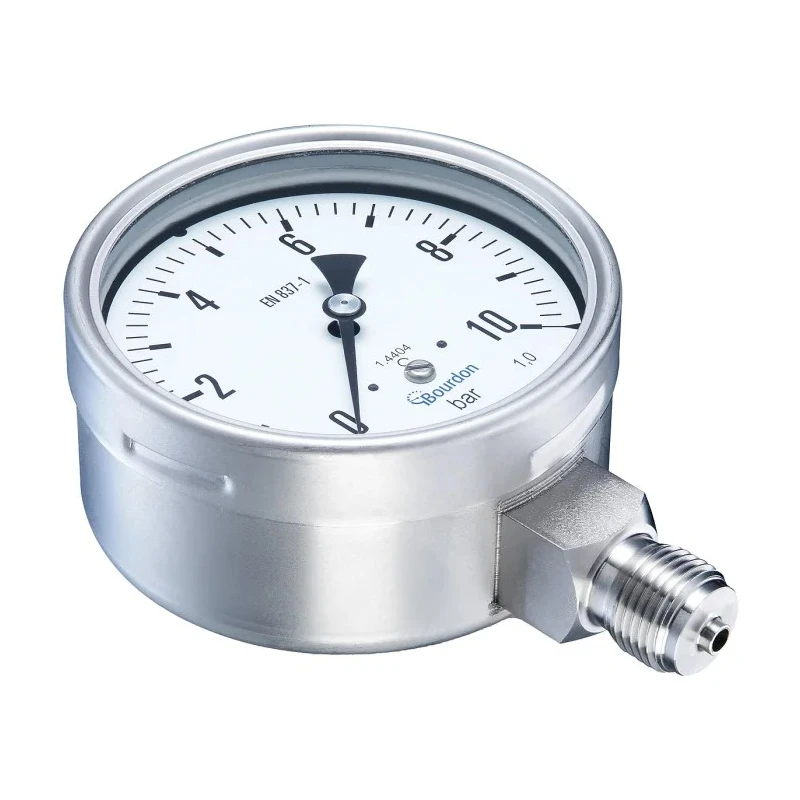

Bourdon Industrial Stainless Steel 100 mm G 1/2 Bottom Pressure Gauge, ±1% Accuracy, 70°C Max Operating MEX5-D30.B59

Free Delivery in India | Lowest Global Shipping Charges

Bourdon Industrial Stainless Steel 100 mm G 1/2 Bottom Pressure Gauge, ±1% Accuracy, 70°C Max Operating MEX5-D30.B59

Name: Bourdon Industrial Stainless Steel 100 mm G 1/2 Bottom Pressure Gauge, ±1% Accuracy, 70°C Max Operating MEX5-D30.B59
Brand: Bourdon
SKU: 205865
Price: 179.11 USD
Availability: InStock



Category Pressure Gauges Brand Bourdon Condition New

Specifications

Country of Origin	China
Accuracy	±1 %
Brand	Bourdon
Model	MEX5-D30.B59
Connection Type	Bottom
Case Material	Stainless Steel
Series	MEX5
Maximum Operating Temperature	70°C
Dial Size	100mm
Connection Size	G 1/2
PRESSURE CONNECTION	1/2 inch NPT Male
Standards/Approvals	Lloyds Register Approval, IP 65 (EN 60529), EN 837-1
Maximum Pressure Measurement	0bar
Minimum Pressure Measurement	-1bar
Connection Location	Bottom Entry
Dial Colour	White

Key Features

Stainless steel case material ensures durability and corrosion resistance.
Accurate pressure readings with ±1% accuracy class.
Bottom G 1/2 connection type with 1/2 inch NPT male fitting for versatile installation.
White dial face with black lettering for clear readability.
Maximum operating temperature of 70°C suitable for various industrial environments.
Complies with EN 837-1 standard and offers IP 65 protection for water and dust resistance.
Suitable for measuring pressures ranging from -1 bar minimum to 0 bar maximum.
Features a safety blow-out device and high-quality instrument glass window.

Product Description

Bourdon MEX5-D30.B59 is a Class 1.0 industrial pressure gauge with a 100 mm nominal dial size and stainless steel construction. Designed for reliable and accurate pressure measurement, this gauge features a bottom G 1/2 connection with 1/2 inch NPT male thread, making it ideal for diverse industrial and laboratory environments.

The gauge dial is white with black lettering and a black plastic pointer, enhancing visibility and readability during operations. It incorporates a safety blow-out device and an elastomer seal with a high-quality instrument glass window, ensuring operator safety under pressure conditions. The case and wetted parts made of stainless steel provide excellent resistance to corrosion, making it suitable for use with corrosive gases and liquids.

This pressure gauge is rated to operate up to 70°C and provides pressure measurement from -1 bar to 0 bar, adhering to EN 837-1 industrial standards. It carries Lloyd’s Register approval and meets IP 65 ingress protection, guaranteeing reliable performance in harsh industrial atmospheres including water and dust exposure.

Typical industrial applications include the food and beverage sector, laboratory and medical instrumentation, oil and gas and chemical process plants, water and wastewater treatment facilities, energy generation, transportation systems, and general machinery pressure monitoring.

Stainless steel case and wetted parts for corrosion resistance. Bottom entry G 1/2 connection with 1/2 inch NPT male thread. White dial with black lettering and a black pointer for easy visibility. Accurate pressure measurement with ±1% class 1.0 accuracy.

Maximum operating temperature of 70°C for versatile industrial use. Certified to EN 837-1 and Lloyd’s Register approved. IP 65 rated for dust and water ingress protection. Safety blow-out device included for operator protection.

Ideal for corrosive gases and liquids in multiple industries.

This Bourdon pressure gauge delivers reliable pressure monitoring to improve process safety and efficiency across demanding industrial and laboratory environments. Browse our extensive range of precision Pressure Gauges and instruments at EnvMart for quality products from trusted manufacturers.
