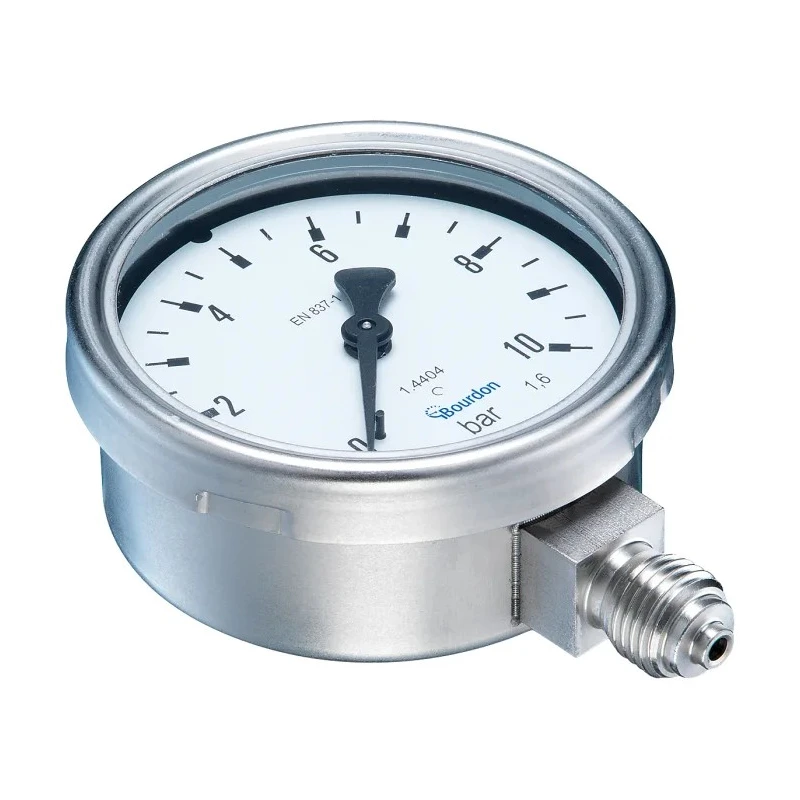

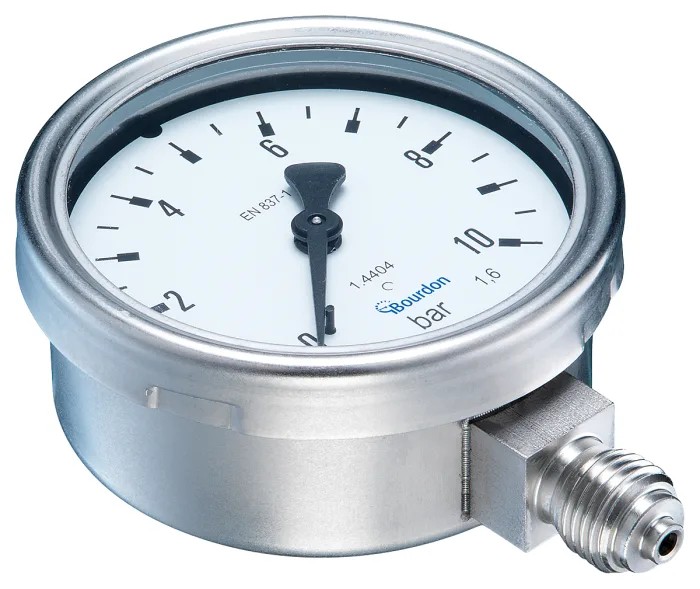

Bourdon Industrial Stainless Steel 63 mm Bottom Connection Pressure Gauge 0 bar Accuracy ±1.6% MEX3-D20.B59

Bourdon MEX3-D20.B59 pressure gauge is an industrial-grade instrument featuring a 63 mm diameter white dial with black markings for precise pressure readings. The gauge includes a bottom G 1/4 thread connection and stainless steel wetted parts, ensuring corrosion resistance and durability in demanding environments.

Built to accuracy class ±1.6% as per EN 837-1 standards, this pressure gauge is capable of handling pressures between -1 bar and 0 bar, suitable for vacuum or low pressure measurement needs.

The gauge withstands operating temperatures up to 70°C and offers IP65 ingress protection, making it reliable in harsh and humid conditions. It is also certified with recognized standards including Lloyd's Register and ATEX II2GDc-IM2c, confirming suitability for hazardous area applications.

The black plastic pointer allows for clear reading against the white dial, facilitating quick and accurate pressure assessments. Its compact 63 mm dial size makes it easy to install in constrained spaces common in industrial, laboratory, and fluid power systems.

This pressure gauge is commonly used in industries such as food and beverage processing, laboratories and medical sectors, oil and gas, chemical manufacturing, water and waste water treatment, energy generation, and transportation logistics, offering robust and reliable pressure measurement.

Constructed from stainless steel for durability and corrosion resistance. Features a white dial face with black lettering and black plastic pointer for easy readability. Rated for maximum operating temperature of 70°C for varied industrial environments.

Designed to measure pressures from -1 bar minimum up to 0 bar maximum. Meets standards including Lloyd's Register, EN 837-1, IP65 protection, and ATEX II2GDc-IM2c certification. Bottom entry G 1/4 connection suitable for fluid power and pneumatic hydraulic installations.

Ideal for use in food and beverage, laboratory, oil and chemical processing, water treatment, energy, and transport sectors. Compact 63 mm nominal dial size for easy mounting and integration.

This Bourdon pressure gauge provides reliable and accurate pressure measurement for industrial, laboratory, construction, HVAC, and manufacturing applications. Its compliance with international standards and robust design ensures long service life and safety in critical pressure monitoring tasks.
